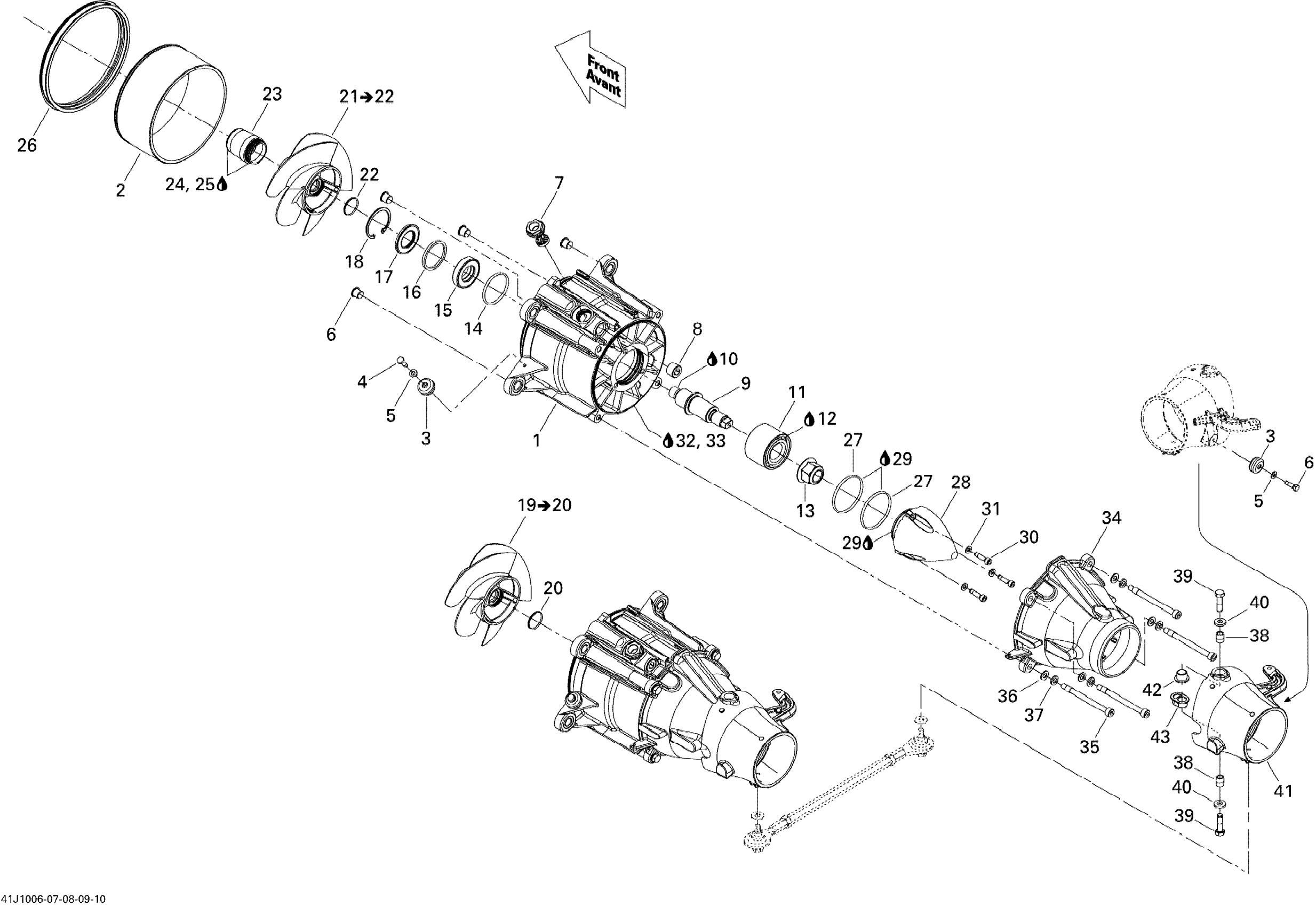

Sea-doo 210 Wake with Tower, 2x215 1503SCIC ETC, 2010 05- Pump Diagram
#
1
Housing Impeller Anodized This part replaces 267000417.
271002161
$329.99
2
Wear Ring
267000372
$84.99
3
Anode Zinc
271001813
$18.99
4
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
5
Stainless Flat Washer M6
234061600
$0.33
6
Bushing
267000093
$9.59
7
Plug | Includes 370z to 370z1
267000282
$19.49
8
Black, Plastic Plug
267000469
$7.59
9
Impeller Shaft
267000388
$116.49
10
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
11
Angled Bearing This part replaces 267000030.
267000900
$80.99
12
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
13
Elastic Flange Nut M20
250100104
$12.66
14
O-Ring
293300090
$7.20
15
Seal
271002071
$33.99
16
Spacer
271001393
$8.59
17
Oil Seal
293200089
$19.99
18
Circlip
293370038
$8.79
19
IMPELLER ASSY - Call your local BRP dealership | Includes 190 to 190a This part replaces 267000642.
267000780
Unavailable
20
O-Ring
293300114
$15.89
21
STANLESS STEEL IMPELLER ASS'Y - Call your local BRP dealership | Includes 195 to 195a
267000653
Unavailable
22
O-Ring
293300114
$15.89
23
Guard
271002228
$12.99
24
Était Was 293800050 Loctite 577, 250 ml
219704459
$104.99
25
Synthetic Grease, 400 G
293550010
Unavailable
26
Neoprene Seal
293200087
$12.63
27
O-Ring
293300086
$3.59
28
Impeller Cover
267000428
$18.49
29
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
30
Socket Head Screw M6 X 25, Scotch Grip
205562560
$2.11
31
Stainless Flat Washer M6
234061600
$0.33
32
Was 293800041 Loctite Primer 7649
219704458
$39.99
33
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
34
VENTURI, BLACK - Call your local BRP dealership
204160306
Unavailable
35
Socket Head Screw M8 X 100, Scotch Grip
250000464
$7.51
36
Flat Washer M8.5 x 18
293050001
$3.07
37
Lock Washer 8 mm, Stainless
234181601
$0.55
38
Sleeve
271001816
$14.99
39
SCREW-SPECIAL M8 - Call your local BRP dealership
211000047
Unavailable
40
Flat Washer M8.5 x 18
293050001
$3.07
41
STEERING NOZZLE, BLACK - Call your local BRP dealership
271001787
Unavailable
42
Venturi Bushing
293900001
$7.62
43
Plastic Bushing
293900010
$9.59
