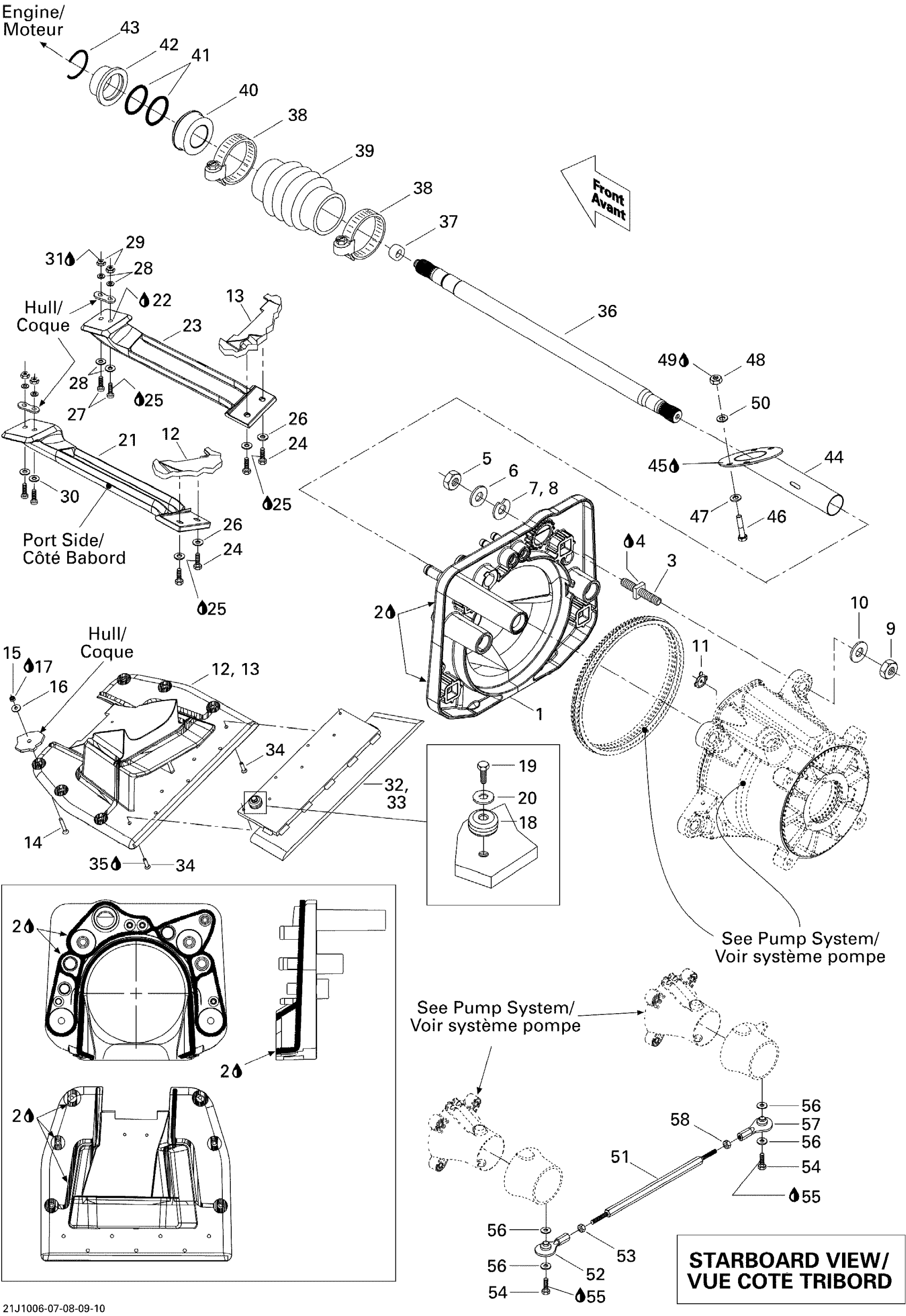

Sea-doo 210 Wake with Tower, 2x215 1503SCIC ETC, 2010 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120313

Unavailable

2

Instant Gasket

219701421

$50.02

3

Square Stud

250300022

$15.57

4

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

5

Elastic Stop Nut M10, Brass

232501200

$2.16

6

Flat Washer 10 mm, Stainless

234002600

$1.85

7

Shim 0.3 mm

272000053

$8.02

8

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

9

Elastic Stop Nut M10, Brass

232501200

$2.16

10

Flat Washer

211200051

$1.34

11

Reducer This part replaces 291001887.

291004649

$12.57

12

RIDE PLATE, PORT SIDE - Call your local BRP dealership

271001669

Unavailable

13

PLATE_RIDE - Call your local BRP dealership

271001670

Unavailable

14

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

15

Hex. Elastic Stop Nut M6

232561600

$0.92

16

Flat Washer M6, Stainless

234062600

$0.64

17

Silicone Sealant 51388, 300 ml

296000309

$35.72

18

Anode Zinc

271001813

$13.62

19

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

20

Stainless Flat Washer M6

234061600

$0.25

21

FIXED GRATE - Call your local BRP dealership

271001671

Unavailable

22

Instant Gasket

219701421

$50.02

23

FIXED GRATE - Call your local BRP dealership

271001672

Unavailable

24

Hex. Screw M6 X 16

207161660

$1.22

25

Loctite 271, 10 ml

293800005

$20.77

26

Stainless Flat Washer M6

234061600

$0.25

27

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208663560

Unavailable

28

Stainless Flat Washer M6

234061600

$0.25

29

Hex. Elastic Stop Nut M6

232561600

$0.92

30

Flat Washer M6, Stainless

234062600

$0.64

31

Silicone Sealant 51388, 300 ml

296000309

$35.72

32

EXTN PLATE,PORT - Call your local BRP dealership

271001687

Unavailable

33

EXTN PLATE,STBD - Call your local BRP dealership

271001688

Unavailable

34

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

35

Loctite 271, 10 ml

293800005

$20.77

36

Drive Shaft

204120284

$385.42

37

Drive Shaft Plug

272000173

$7.02

38

Norma Clamp

293650077

$6.11

39

Bellows

272000183

$22.72

40

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

41

O-Ring

293300044

$0.86

42

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

43

C-Clip

271001575

$4.54

44

SHAFT GUARD ASSY - Call your local BRP dealership This part replaces 271001715.

271001834

Unavailable

45

Instant Gasket

219701421

$50.02

46

Phillips Screw M5 X 35

208653560

$1.85

47

Flat Washer M5, Stainless

234051600

$0.64

48

Hex. Elastic Nut M5 | X

232551600

$0.91

49

Silicone Sealant 51388, 300 ml

296000309

$35.72

50

Flat Washer 5 mm, Stainless

234052600

$0.64

51

ROD-LINK NOZZLE - Call your local BRP dealership

271001686

Unavailable

52

BALL JOINT - Call your local BRP dealership

204120075

Unavailable

53

HEX. NUT 5/16-24 - Call your local BRP dealership

211100034

Unavailable

54

Hex. Screw M6 X 30

207163060

$1.25

55

Loctite 243, 10 ml

293800060

$20.77

56

Stainless Flat Washer M6

234061600

$0.25

57

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

58

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable
