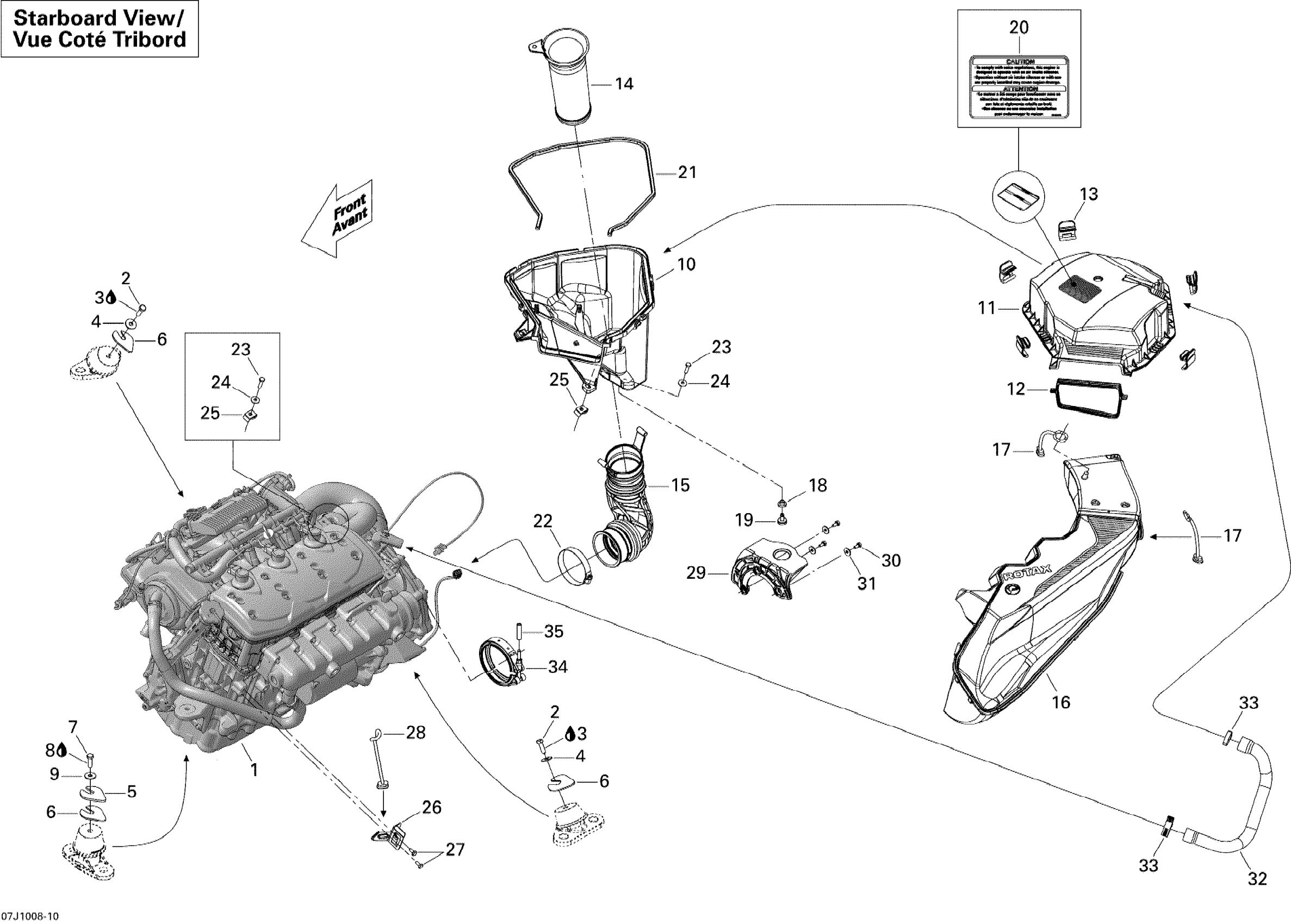

Sea-doo 210 Wake with Tower, 2x215 1503SCIC ETC, 2010 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150338.

420150394

$4.00

1

Engine Long Block This part replaces 420150338.

420150394

$4.00

2

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

3

Loctite 243, 10 ml

293800060

$21.49

4

Flat Washer 8 mm, Stainless

234082600

$2.43

5

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

6

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

7

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

8

Loctite 243, 10 ml

293800060

$21.49

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

AIR SILENCER LOW - Call your local BRP dealership

273000250

Unavailable

11

Air Silencer Upper

273000249

$61.99

12

SEAL - Call your local BRP dealership

293250190

$15.49

13

Clip

269501718

$15.89

14

Intake Hose

273000359

$48.99

15

CONNECTOR HOSE - Call your local BRP dealership

273000251

Unavailable

16

INTAKE TUBE - Call your local BRP dealership

273000253

Unavailable

17

Strap

269501299

$19.49

18

GROMMET - Call your local BRP dealership

293720064

Unavailable

19

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

20

Caution Decal, Air Silencer

219902673

Unavailable

21

NEOPRENE SEAL - Call your local BRP dealership

293200123

Unavailable

22

Tridon Clamp

293650179

$11.49

23

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

24

Flat Washer M6, Stainless

234062600

$0.77

25

Panel Nut M6 X 1

420942108

$14.28

26

AIR BOX BRACKET - Call your local BRP dealership

273000260

Unavailable

27

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

28

Strap

273000261

$16.49

29

AIR BOX SUPPORT - Call your local BRP dealership

270000735

Unavailable

30

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

31

Flat Washer M6, Stainless

234062600

$0.77

32

Formed Hose

270000807

$65.49

33

Tridon Gear Clamp

293650051

$4.19

34

Exhaust Clamp

274001417

$58.99

35

Polyurethane Hose 10000Mm Long

219704410

$56.99
