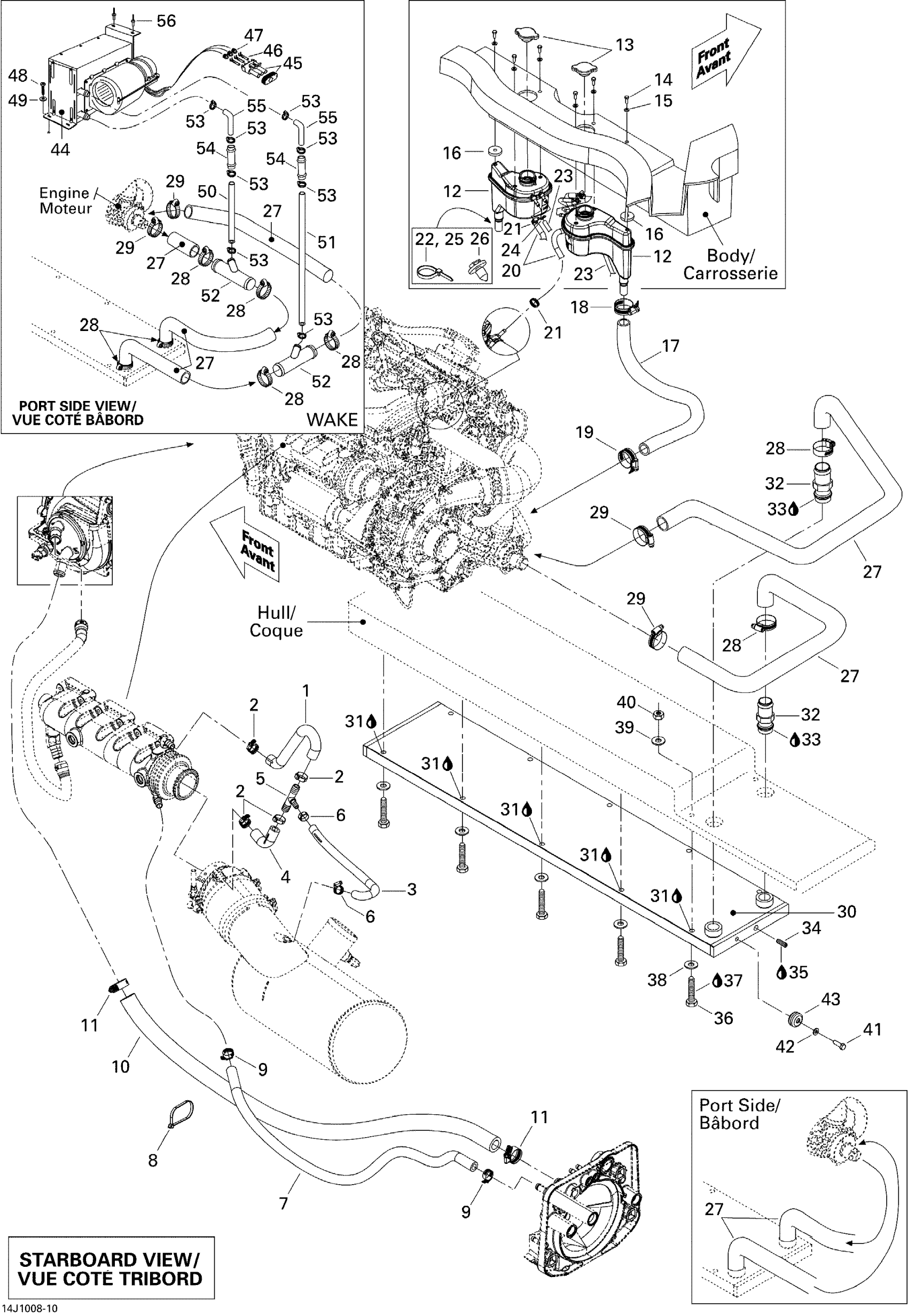

Sea-doo 210 Wake with Tower, 2x215 1503SCIC ETC, 2010 Cooling System Diagram

#

Description
Price

1

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

2

Tridon Gear Clamp

293650172

$3.09

3

Formed Hose | Without Catalyst

276000246

$19.49

4

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

5

T-Fitting

293710116

$17.62

6

Tridon Gear Clamp

293650171

$3.09

7

Was 276000001 Hose 12.5 mm

219704394

$51.99

8

Tie Wrap 368 mm

293750008

$1.04

9

Tridon Gear Clamp

293650172

$3.09

10

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

11

Tridon Gear Clamp

293650051

$4.19

12

Coolant Tank

276000265

$134.99

13

Pressure Cap | Includes 720 to 720a

276000100

$25.99

14

Socket Head Screw M6 X 25

205062560

$1.69

15

Flat Washer M6, Stainless

234062600

$0.77

16

SPACER - Call your local BRP dealership

705202084

Unavailable

17

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

18

Tridon Gear Clamp

293650051

$4.19

19

Tridon Gear Clamp

293650019

$5.82

20

Was 275500549 Hose 1/4"

219704357

$194.99

21

Oetiker Gear Clamp

293650025

$3.09

22

Tie Wrap 142 mm

293750002

$1.25

23

Polyurethane Hose 10000Mm Long

219704410

$56.99

24

Tie Wrap 94 mm | 4X4

293750001

$1.03

25

Tie Wrap 142 mm

293750002

$1.25

26

Mount Dart

293730040

$1.04

27

RUBBER HOSE, PORT - Call your local BRP dealership

204061380

Unavailable

28

Tridon Gear Clamp

293650045

$5.69

29

Tridon Gear Clamp

293650045

$5.69

30

HEAT EXCHANGER - Call your local BRP dealership

204300255

Unavailable

31

Instant Gasket

219701421

$51.99

32

Hose Fitting - Call your local BRP dealership

204300133

Unavailable

33

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

34

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

35

Was 293800013 Loctite 56765

219704454

$65.99

36

SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership

205405060

Unavailable

37

Loctite 243, 10 ml

293800060

$21.49

38

Flat Washer 10 mm, Stainless

234000600

$1.46

39

Flat Washer 10 mm, Stainless

234002600

$2.22

40

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

41

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

42

Stainless Flat Washer M6

234061600

$0.33

43

Anode Zinc

271001813

$18.99

44

HEATER UNIT - Call your local BRP dealership | WAKE

204300198

Unavailable

45

Male Housing, 3 Circuits

278000273

$9.59

46

Female Terminal

278000223

$3.19

47

Wire Seal

278000218

$4.39

48

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

49

Flat Washer 5 mm, Stainless

234052600

$0.77

50

HOSE 16 MM - Call your local BRP dealership | WAKE

204300204

Unavailable

51

HOSE 16 MM - Call your local BRP dealership | WAKE

204300204

Unavailable

52

Y-Fitting | WAKE

204130174

Unavailable

53

Tridon Gear Clamp

293650045

$5.69

54

STRAIGHT FITTING, 5/8'' X 5/8'' - Call your local BRP dealership | WAKE

276000271

Unavailable

55

HOSE 16 MM - Call your local BRP dealership | WAKE

204300204

Unavailable

56

RIVET - Call your local BRP dealership

293150065

Unavailable
