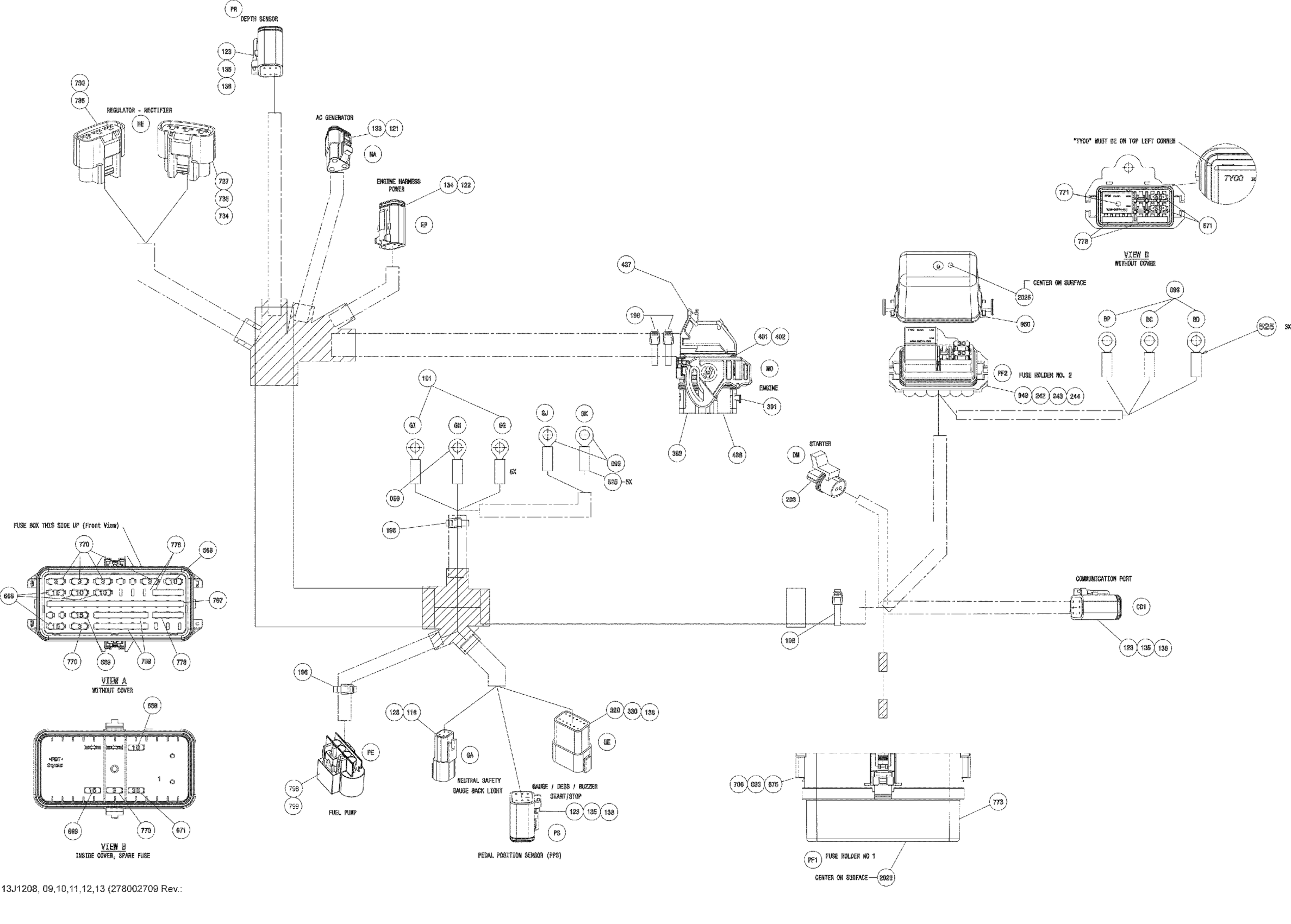

Sea-doo 210 Wake 430, 2012 Engine Harness Diagram

#

Description
Price

1

ENGINE HARNESS - Call your local BRP dealership

278002709

Unavailable

33

Wire Seal

278000999

$3.19

110

Male Terminal

278000631

$4.39

111

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

112

Female Terminal

278000632

$2.09

116

Female Housing, 4 Circuits

278000635

$16.49

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

122

Male Connector, 4 Circuits | CE

278000739

$19.49

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

128

Female Wedge, 4 Circuits

278000636

$4.39

133

Female Lock

409207200

$4.39

134

Male Lock, 4 Circuits | CE

278000738

$3.09

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

138

Sealing Cap

293000052

$3.19

196

Tie Wrap 142 mm

293750002

$1.25

202

Female Terminal

278001114

$3.19

203

Male Connector, 2 Circuits

278001113

$16.86

229

Female Terminal

278000223

$3.19

238

Male Housing, 3 Circuits

278000273

$9.59

242

Wire Seal

278000218

$4.39

243

Wire Seal

710000048

$7.69

244

Wire Seal

278000216

$3.19

320

Male Connector, 12 Circuits

409015800

Unavailable

330

MALE LOCK, 12 CIRCUITS - Call your local BRP dealership

409015600

Unavailable

388

Female Terminal

710001589

$2.21

391

Female Terminal Housing, 48 Circuits

710001588

$48.49

398

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

401

Plug

710001592

$2.21

402

Plug

710001593

$2.21

437

Cover, 48 positions

710001591

$12.18

438

Female Terminal

710001590

$2.09

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

668

Little Fuse, 10 Amperes

710000744

$8.79

669

Little Fuse, 15 Ampere

710000745

$8.49

671

Little Fuse, 30 Amperes

710000747

$8.49

675

Fuse Box Base Ass´y

415129856

$50.99

684

Fuse Puller

710000781

$8.09

690

Female Terminal

710000890

$4.55

702

Female Terminal

710000836

$5.61

703

Female Terminal

710000837

$5.39

706

Cap

710000840

$5.89

732

Female Terminal

710000877

$9.12

734

Female Housing, 3 Circuits

710000879

$25.99

735

Housing, 3 Circuits

710000880

$21.99

736

Seal

710000881

$17.99

737

Cap

710000882

$11.49

751

Female Terminal

710000918

$7.69

767

Bus Bar

278002165

$8.79

768

Bus Bar

278002165

$8.79

769

Bus Bar

278002165

$8.79

770

Little Fuse, 3 AMP

710001008

$3.79

773

Fuse Cover

710001026

$21.99

778

Bus Bar

278002165

$8.79

798

Male Housing, 4 Circuits

278002185

$7.90

799

Bus Bar

278002165

$8.79

800

Female Terminal

278002187

$6.39

949

Fuse Box Ass'y

278002285

$28.49

950

Fuse Box Cover

278002286

$27.49

2023

Fuse Decal

278002428

Unavailable

2025

FUSE DECAL - Call your local BRP dealership

278002192

Unavailable
