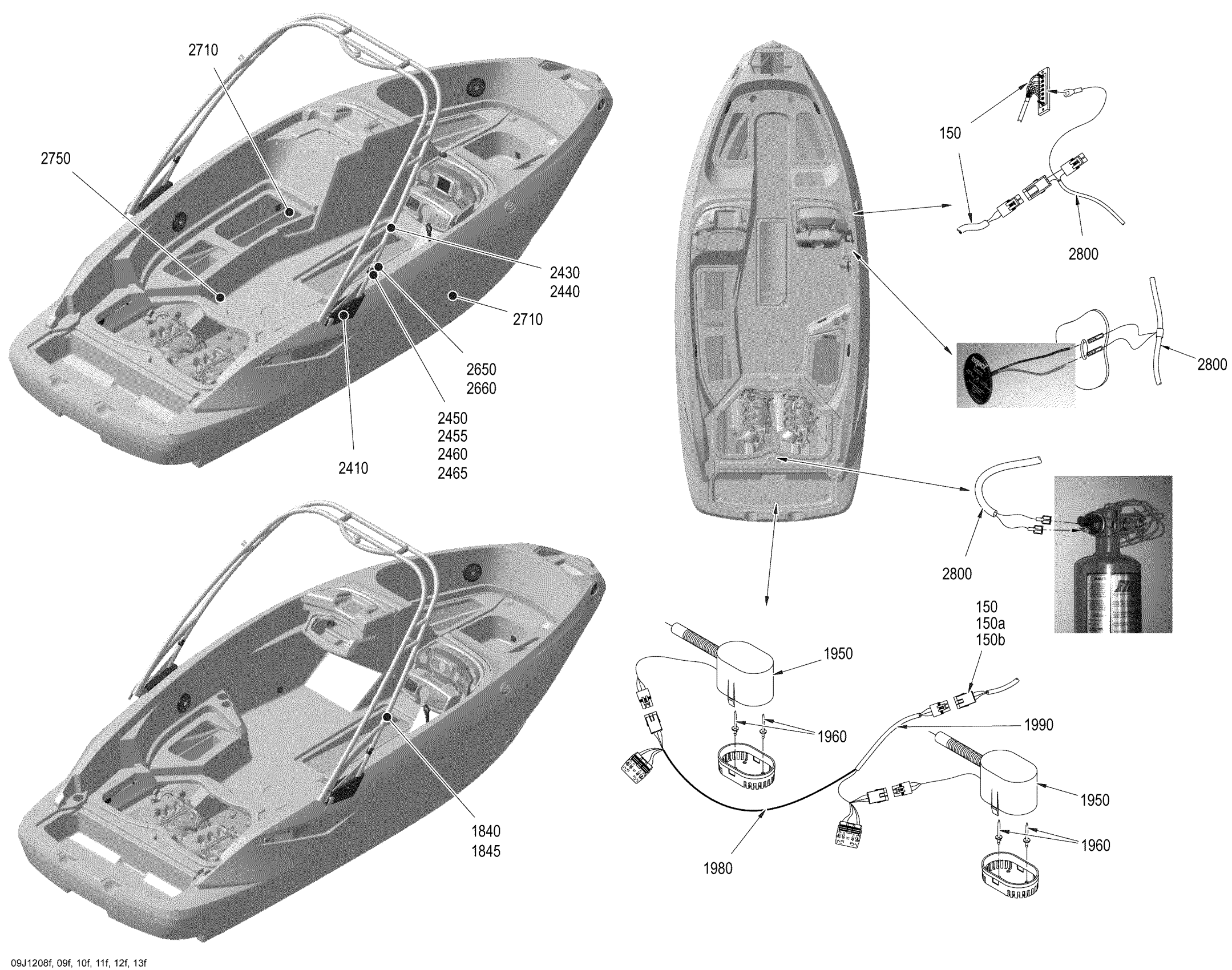

Sea-doo 210 Wake 430, 2012 10- Electrical System 6 Diagram
#
Description
Price
150
Not Available As Spare Part - Friction Washer
Unavailable
150a
ACCESSORIES WIRING HARNESS - Call your local BRP dealership | CE
204471235
Unavailable
150b
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
150
Accessories Wiring Harness | North America
278002777
Unavailable
1840
Not Available As Spare Parts
XXX
Unavailable
1845
Not Available As Spare Parts
XXX
Unavailable
1950
PUMP BILGE 750 GPH replaced by RM-800 - Call your local BRP dealership | WAKE This part replaces 204471202.
278002977
Unavailable
1950
Bilge Pump
204471432
Unavailable
1960
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
1960
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
1980
BILGE PUMP HARNESS - Call your local BRP dealership | CE
278002634
Unavailable
1990
Tie Wrap 142 mm
293750002
$1.25
2410
HARNESS - TOWER MOUNT EXT - Call your local BRP dealership | WAKE
278002839
Unavailable
2430
HARNESS - WAKE TOWER - SPEAKERS - Call your local BRP dealership | WAKE
269800251
Unavailable
2440
HARNESS - WAKE TOWER - LIGHTS - Call your local BRP dealership | WAKE
269800249
Unavailable
2450
MALE HOUSING, 8 CIRCUITS - Call your local BRP dealership
278001743
Unavailable
2455
SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership
278001744
Unavailable
2460
MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership
278001742
Unavailable
2465
SHIM DEUTSCH 8 CIRCUITS FEMALE - Call your local BRP dealership | WAKE
278002840
Unavailable
2650
SPLIT LOOM 3/8, METER - Call your local BRP dealership
204050326
Unavailable
2660
SPLIT LOOM 3/8, METER - Call your local BRP dealership
204050326
Unavailable
2710
WATER LEVEL SENSOR EXTENSION HARNESS - Call your local BRP dealership | WAKE
278002848
Unavailable
2750
COURTESY LIGHT EXTENSION - Call your local BRP dealership | WAKE
278002519
Unavailable
2800
FIRE EXTINGUISHER HARNESS - Call your local BRP dealership | CE
278002881
Unavailable
