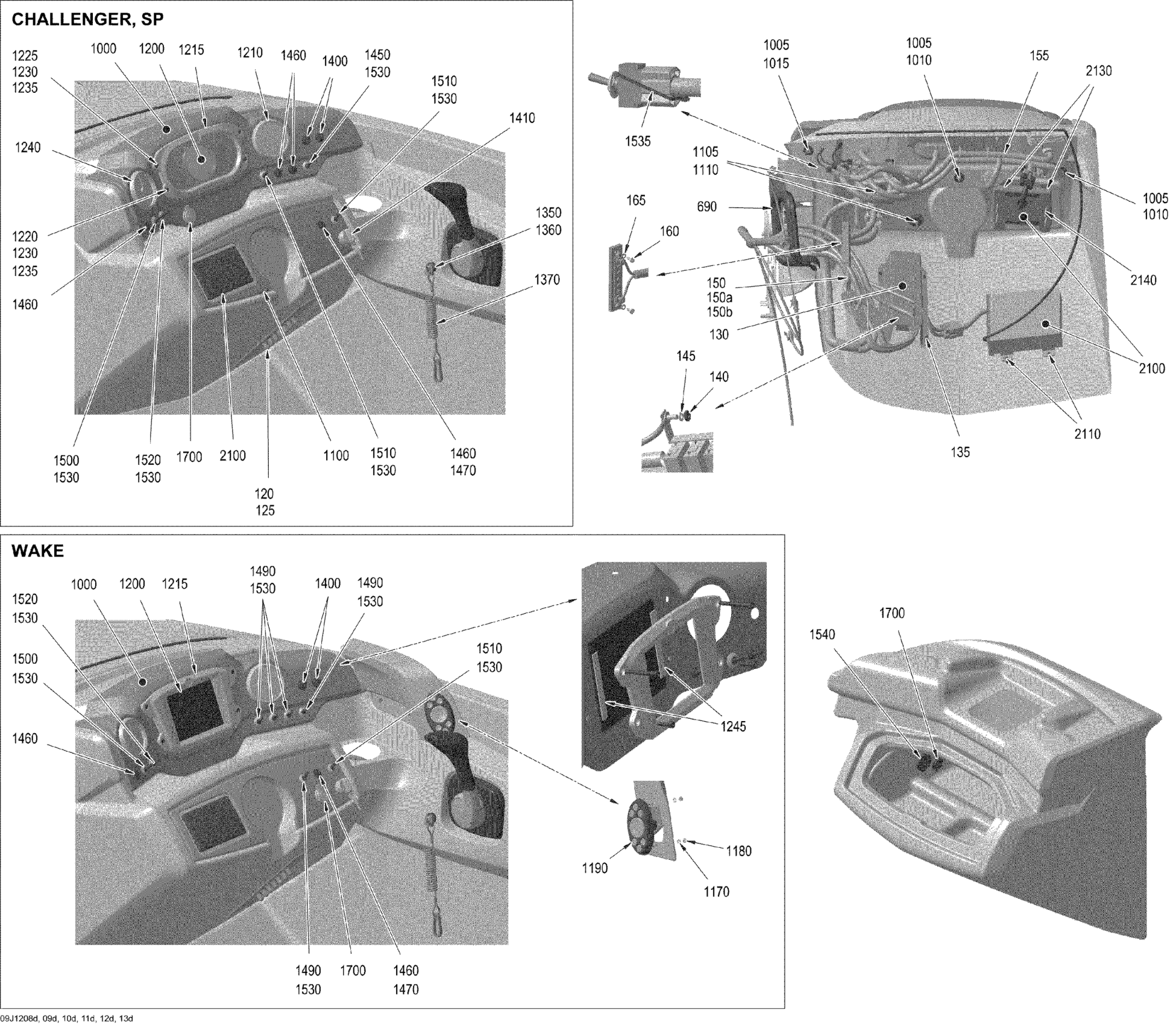

Sea-doo 210 Wake 430, 2012 10- Electrical System 4 Diagram
#
120
CIRCUIT BREAKER PANEL (CE) - Call your local BRP dealership | WAKE CE
204471446
Unavailable
120
CIRCUIT BREAKER PANEL - Call your local BRP dealership | WAKE North America
278002778
Unavailable
125
TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
250000090
Unavailable
130
Circuit Breaker Panel Cover
204471375
Unavailable
135
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
140
Hex. Nut
212100005
$1.35
145
Helical Lock Washer M5
234151601
$1.15
150
Not Available As Spare Part - Friction Washer
Unavailable
150a
ACCESSORIES WIRING HARNESS - Call your local BRP dealership | CE
204471235
Unavailable
150b
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
150
Accessories Wiring Harness | North America
278002777
Unavailable
155
HELM HARNESS - Call your local BRP dealership | WAKE
278002686
Unavailable
160
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
165
Flat Washer 4 mm, Stainless
234041600
$1.15
690
SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.
204130176
Unavailable
1000
210 FASCIA ASSY FLATSCREEN - Call your local BRP dealership | WAKE
278002613
Unavailable
1005
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
1010
HEXAGONAL NUT 8-32 - Call your local BRP dealership
204100262
Unavailable
1015
HEXAGONAL NUT 10-24 - Call your local BRP dealership
204100261
Unavailable
1100
STEREO BASE PANEL - Call your local BRP dealership | WAKE
278002725
Unavailable
1105
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
1110
HEXAGONAL NUT 8-32 - Call your local BRP dealership
204100262
Unavailable
1170
Flat Washer 4 mm, Stainless
234041600
$1.15
1180
Not Available As Spare Part - Friction Washer
Unavailable
1190
SWITCH PAD - Call your local BRP dealership | WAKE
278002690
Unavailable
1200
TOUCH SCREEN - Call your local BRP dealership | WAKE
278002612
Unavailable
1210
Fuel Level Gauge
278002692
Unavailable
1215
Indicator Gauge Support | WAKE
278002700
Unavailable
1220
Socket Head Screw M6 X 20
205062060
$2.32
1225
SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership
205065060
Unavailable
1230
Flat Washer M6, Stainless
234062600
$0.77
1235
Hex. Elastic Stop Nut M6
232561600
$1.15
1240
Speedometer
278002691
Unavailable
1245
Tray Seal | WAKE
278002834
Unavailable
1350
LANYARD SWITCH - Call your local BRP dealership
278002421
Unavailable
1360
FLANGED NUT - Call your local BRP dealership
278002472
Unavailable
1370
SAFETY LANYARD - Call your local BRP dealership
278002450
Unavailable
1400
Start Switch
278002694
Unavailable
1410
Ignition Switch With Key
710002323
$86.99
1460
Switch
278002446
Unavailable
1460
Switch
278002446
Unavailable
1470
Plug Plastic Locking | Without WDL
204471458
Unavailable
1490
SWITCH SPOT TOGGLE AMBER - Call your local BRP dealership | WAKE
278002720
Unavailable
1500
SWITCH - Call your local BRP dealership
278002696
Unavailable
1510
SWITCH - Call your local BRP dealership
278002776
Unavailable
1520
Switch
278002698
Unavailable
1530
NUT SWITCH - Call your local BRP dealership
278002416
Unavailable
1535
TIE-RAP 203 MM - Call your local BRP dealership
293750059
Unavailable
1540
USB CONNECTOR - Call your local BRP dealership
278002417
Unavailable
1700
DC Outlet
710001248
$37.99
2100
STEREO - Call your local BRP dealership
278002689
Unavailable
2110
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
209641960
Unavailable
2130
BRACKET-STEREO - Call your local BRP dealership
277001743
Unavailable
2140
PHILLIPS SCREW 6-32 X 2.5 - Call your local BRP dealership
204100254
Unavailable
