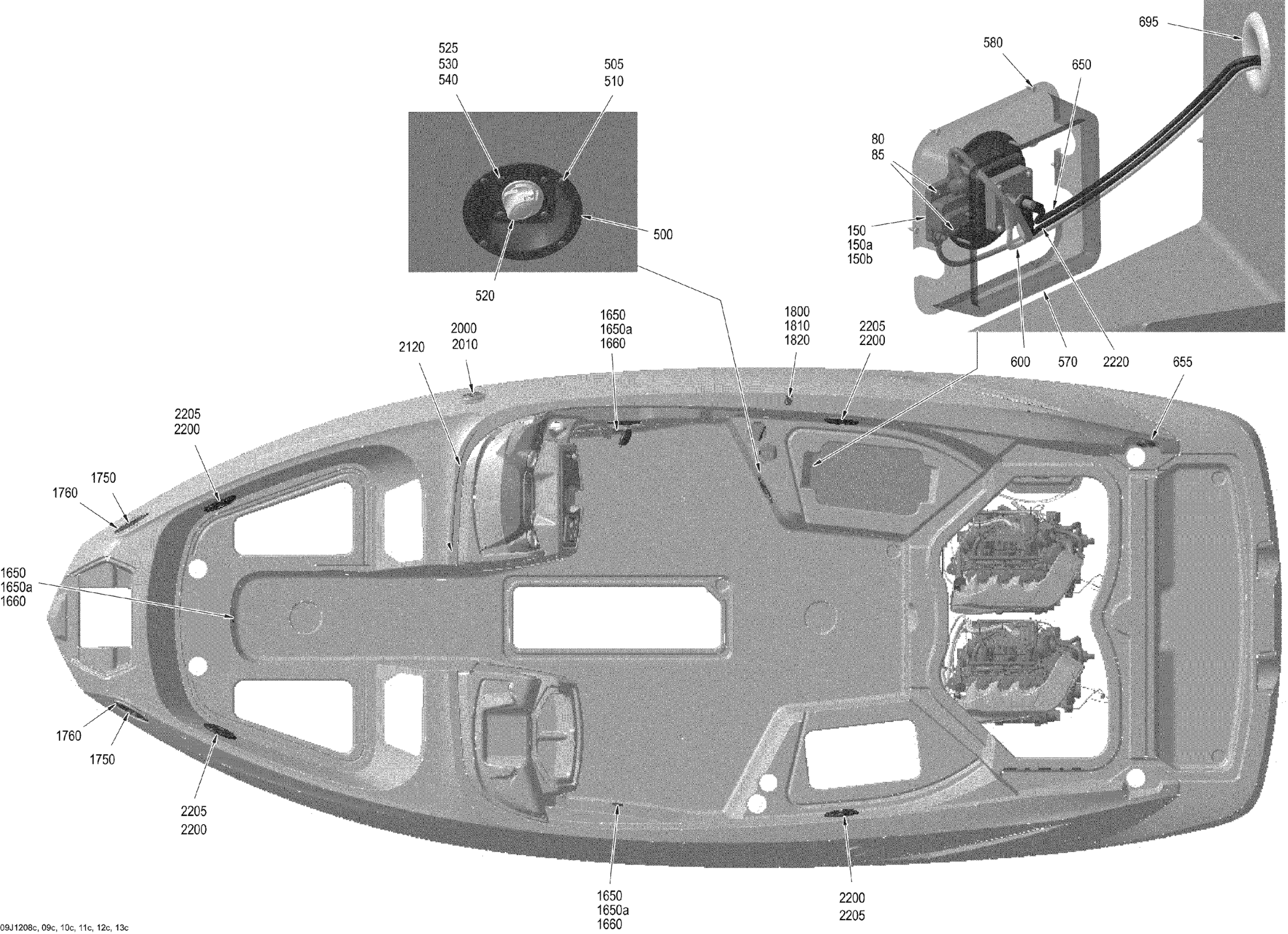

Sea-doo 210 Wake 430, 2012 10- Electrical System 3 Diagram
#
Description
Price
80
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
209641960
Unavailable
85
Flat Washer 4 mm, Stainless
234041600
$1.15
150
Not Available As Spare Part - Friction Washer
Unavailable
150a
ACCESSORIES WIRING HARNESS - Call your local BRP dealership | CE
204471235
Unavailable
150b
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
150
Accessories Wiring Harness | North America
278002777
Unavailable
500
SWITCH SUPPORT - Call your local BRP dealership
204471341
Unavailable
505
Flat Washer 4 mm, Stainless
234041600
$1.15
510
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
520
BATTERY SWITCH - Call your local BRP dealership
204471339
Unavailable
525
Flat Washer M5, Stainless
234051600
$0.77
530
Phillips Screw M5 X 25
208652560
$3.39
540
Hex. Elastic Nut M5 | X
232551600
$1.15
570
BATTERY SWITCH COVER - Call your local BRP dealership
204471175
Unavailable
580
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
600
POSITIF SWITCH CABLE - Call your local BRP dealership
204471193
Unavailable
650
Not Available As Spare Part - Friction Washer
Unavailable
655
RED CABLE - Call your local BRP dealership
204471423
Unavailable
695
SLIT CONDUIT - Call your local BRP dealership
204471077
Unavailable
1650
Courtesy Light Ass'y | Includes 29 to 30
204470026
$47.49
1650a
BULB - Call your local BRP dealership
204470081
Unavailable
1660
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
1750
LATERAL LIGHT KIT - Call your local BRP dealership
204470908
Unavailable
1760
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
1800
CONNECTOR - Call your local BRP dealership | 210 Challenger S
204130221
Unavailable
1810
TAPP SCREW PHILLIP HEAD M2.9 X 13 - Call your local BRP dealership | 210 Challenger S
250200108
Unavailable
1820
FERRULE TERMINAL - Call your local BRP dealership | Without Tower
204471430
Unavailable
2000
HORN - Call your local BRP dealership
204470801
Unavailable
2010
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
2120
STEREO ANTENNA - Call your local BRP dealership
204471215
Unavailable
2200
SPEAKER, SILVER - Call your local BRP dealership | 180 Challenger SE
204471344
Unavailable
2205
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
2220
REMOTE CONTROL DIGITAL - Call your local BRP dealership | SE
278002705
Unavailable
