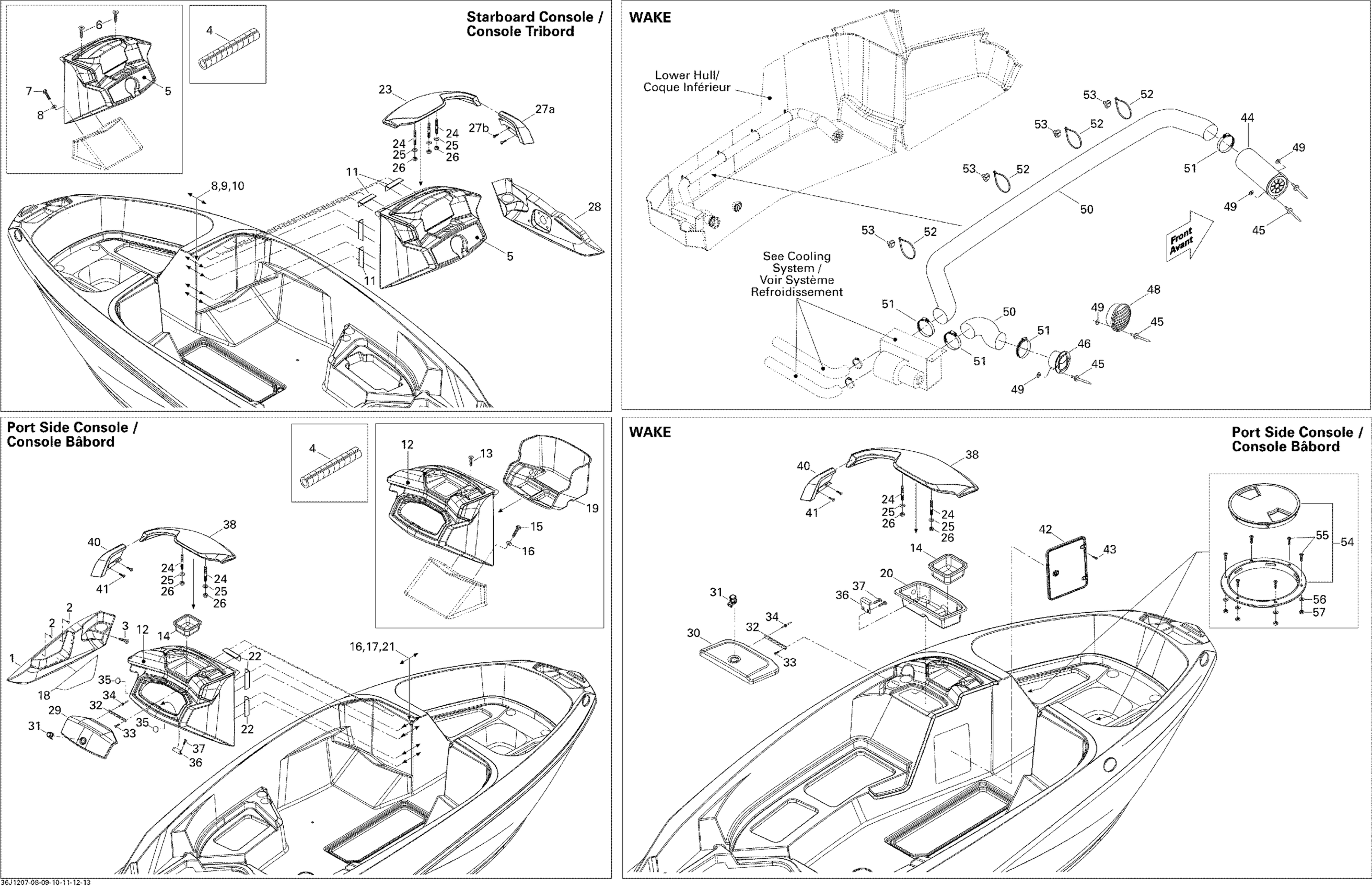

Sea-doo 210 Wake 430, 2012 09- Front Console And Glove Box Diagram
#
1
Not Available As Spare Parts
XXX
Unavailable
2
Not Available As Spare Parts
XXX
Unavailable
3
Not Available As Spare Parts
XXX
Unavailable
4
SPLIT LOOM 3/8, METER - Call your local BRP dealership
204050326
Unavailable
5
CONSOLE ASS'Y, STARBOARD - Call your local BRP dealership
291003705
Unavailable
6
PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership
204100056
Unavailable
7
Hex. Screw M6 X 30
207163060
$1.48
8
Flat Washer M6, Stainless
234062600
$0.77
9
Hex. Screw M6 X 45
207164560
$1.89
10
Hex. Elastic Stop Nut M6
232561600
$1.15
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Not Available As Spare Parts
XXX
Unavailable
13
Not Available As Spare Parts
XXX
Unavailable
14
Upper Glove Box
291002949
Unavailable
15
Not Available As Spare Parts
XXX
Unavailable
16
Not Available As Spare Parts
XXX
Unavailable
17
Not Available As Spare Parts
XXX
Unavailable
18
Not Available As Spare Parts
XXX
Unavailable
19
Not Available As Spare Parts
XXX
Unavailable
20
DRY STORAGE BOX - Call your local BRP dealership
291003047
Unavailable
21
Not Available As Spare Parts
XXX
Unavailable
22
Not Available As Spare Parts
XXX
Unavailable
23
CONSOLE BROW, STARBOARD - Call your local BRP dealership
291002867
Unavailable
24
STUD 1/4?-20 X 2? - Call your local BRP dealership
204100033
Unavailable
25
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
26
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
27a
CONSOLE BROW PAD, STARBOARD - Call your local BRP dealership
291003450
Unavailable
27b
PHILLIPS TAPPING SCREW #10 X 1-1/4 - Call your local BRP dealership
204100164
Unavailable
28
Shifter Panel Fascia, Starboard
291002868
Unavailable
29
Not Available As Spare Parts
XXX
Unavailable
30
LOWER GLOVE BOX DOOR - Call your local BRP dealership
291003046
Unavailable
31
LATCH - Call your local BRP dealership
204073210
Unavailable
32
HINGE - Call your local BRP dealership
291003006
Unavailable
33
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
34
Pop Rivet 3/16"
293150008
$0.50
35
Not Available As Spare Parts
XXX
Unavailable
36
KEEPER - Call your local BRP dealership
291003012
Unavailable
37
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
38
CONSOLE BROW, PORT SIDE - Call your local BRP dealership
291002878
Unavailable
40
CONSOLE BROW PAD, PORT SIDE - Call your local BRP dealership
291003471
Unavailable
41
PHILLIPS TAPPING SCREW #10 X 1-1/4 - Call your local BRP dealership
204100164
Unavailable
42
ACCESS DOOR - Call your local BRP dealership
204073802
Unavailable
43
SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership
202000203
Unavailable
44
HEATER TUBE ASS'Y - Call your local BRP dealership
204073799
Unavailable
45
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
46
HEATER VENT GRILL - Call your local BRP dealership
204072852
Unavailable
48
GRILL S/S - INTAKE/HEATER - Call your local BRP dealership This part replaces 204073011.
204073852
Unavailable
49
Flat Washer 3 mm, Stainless Steel
234031600
$0.55
50
INTAKE HOSE - Call your local BRP dealership
204340435
Unavailable
51
Tridon Clamp
293650179
$11.49
52
Tie Wrap 368 mm
293750008
$1.04
53
Mount Dart
293730040
$1.04
54
BOTTOM PLATE - Call your local BRP dealership
204070622
Unavailable
55
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership
208442060
Unavailable
56
Flat Washer 4 mm, Stainless
234042600
$1.15
57
Elastic Stop Nut M4
232541600
$1.15
