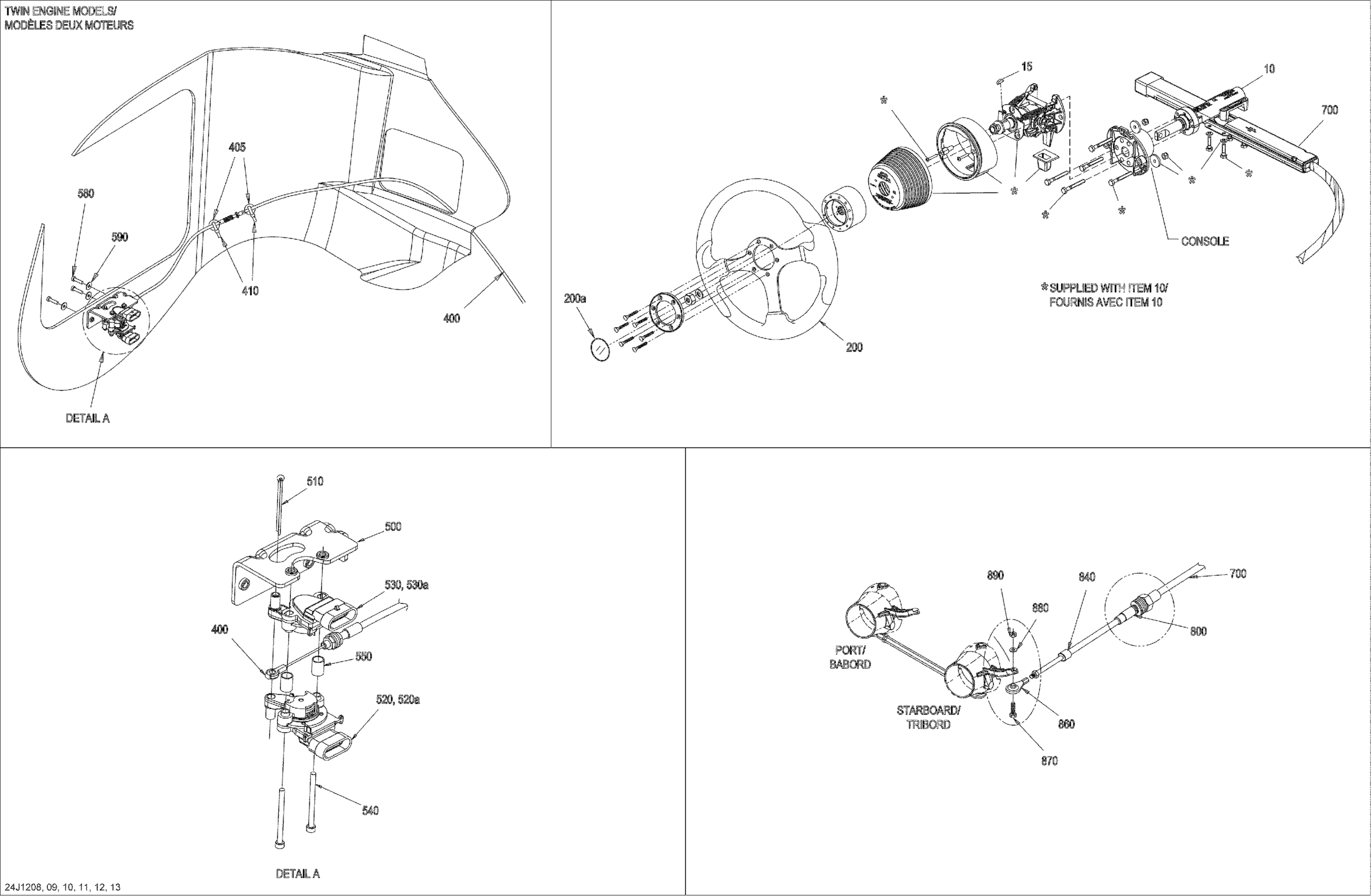

Sea-doo 210 Wake 430, 2012 07- Steering Diagram
#
Description
Price
10
HELM TILT ASS'Y - Call your local BRP dealership | Twin Engine Models
277001690
Unavailable
15
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
200
Steering Wheel Ass'y | WAKE
204390554
Unavailable
200a
CENTER CAP - Call your local BRP dealership | SE
204390549
Unavailable
400
THROTTLE CABLE - Call your local BRP dealership
277001693
Unavailable
405
Mount Dart
293730040
$1.04
410
Tie Wrap 142 mm
293750002
$1.25
500
SENSOR BRACKET - Call your local BRP dealership
277001694
Unavailable
510
Not Available As Spare Part - Friction Washer
Unavailable
520
RH THROTTLE SENSOR - Call your local BRP dealership | Twin Engine Models
277001726
Unavailable
520a
O-Ring
270000544
$4.65
530
SENSOR_POSITION THROTTLE - Call your local BRP dealership
277001727
Unavailable
530a
O-Ring
270000544
$4.65
540
SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership
205455060
Unavailable
550
SPACER - Call your local BRP dealership
204390638
Unavailable
580
Hex. Screw M5 X 20
207152060
$1.47
590
Flat Washer 5 mm, Stainless
234052600
$0.77
700
STEERING CABLE - Call your local BRP dealership | Twin Engine Models
277001867
$489.99
800
SEAL SWIVEL - Call your local BRP dealership
277000440
Unavailable
840
Terminal Wiper
277000441
$11.99
860
BALL JOINT - Call your local BRP dealership
204120074
Unavailable
870
Hex. Screw M6 X 35
207063560
$2.22
880
Stainless Flat Washer M6
234061600
$0.33
890
Hex. Elastic Stop Nut M6
232561600
$1.15
