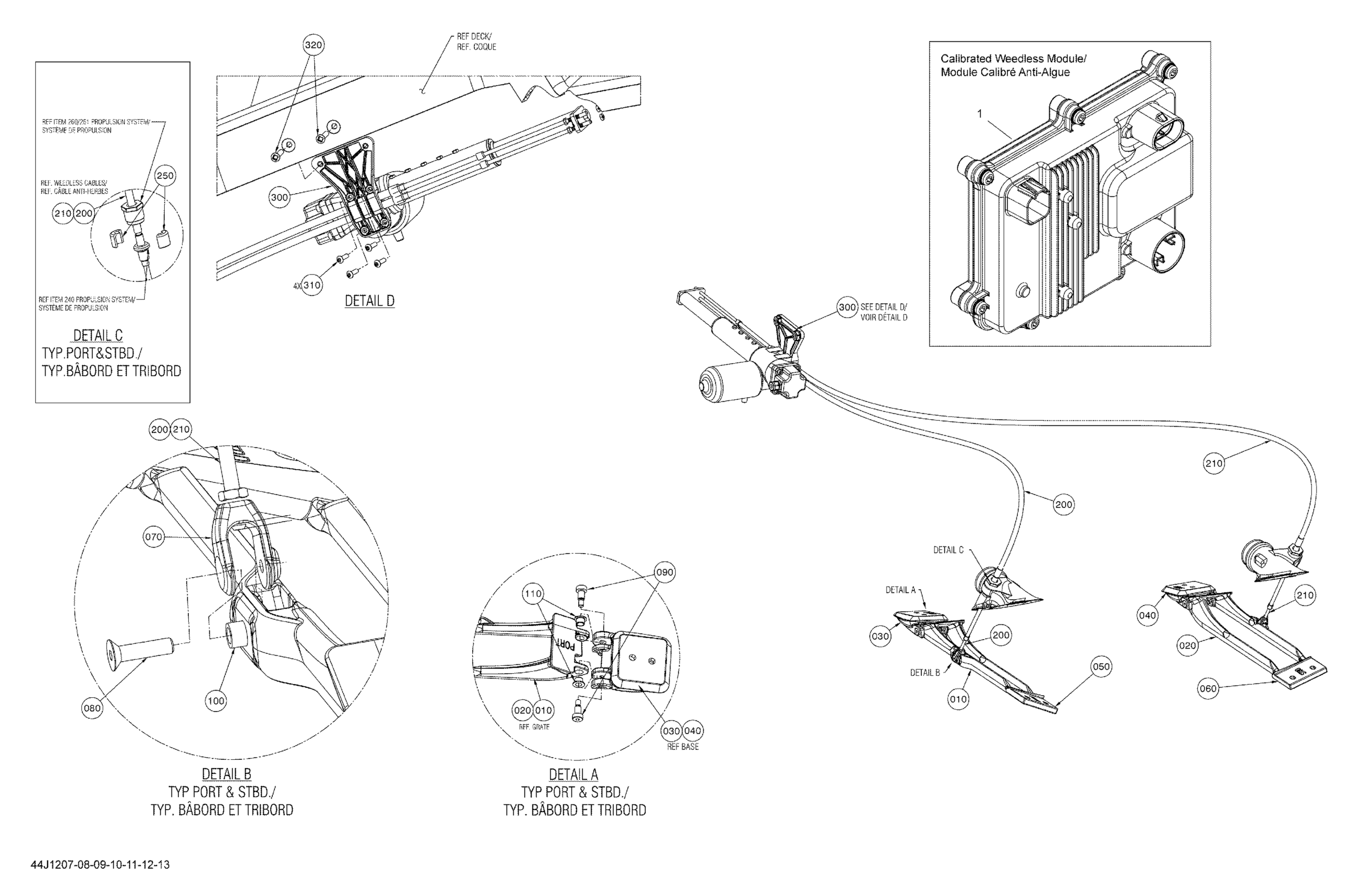

Sea-doo 210 Wake 430, 2012 05- Weedless System Diagram

CALIBRATED WEEDLESS MODULE - Call your local BRP dealership

204471517

Unavailable

WEEDLES GRATE, PORT SIDE - Call your local BRP dealership

271001792

Unavailable

WEEDLES GRATE, STARBOARD SIDE - Call your local BRP dealership

271001793

Unavailable

BASE-WEEDLESS/PORT - Call your local BRP dealership

271001794

Unavailable

BASE-WEEDLESS/STBD - Call your local BRP dealership

271001795

Unavailable

SPT-WEEDLESS/PORT - Call your local BRP dealership

271001796

Unavailable

SPT-WEEDLESS/STBD - Call your local BRP dealership

271001797

Unavailable

CLEVIS-WEEDLESS - Call your local BRP dealership

271001774

Unavailable

SOCKET SCREW M5 X 20 - Call your local BRP dealership

205352060

Unavailable

SHOULDER SOCKET SCREW - Call your local BRP dealership

250000599

Unavailable

SPACER - Call your local BRP dealership

278002796

Unavailable

PIVOT BUSHING - Call your local BRP dealership

706001155

Unavailable

CABLE-WEEDLESS PORT - Call your local BRP dealership

267900000

Unavailable

CABLE-WEEDLESS STBD - Call your local BRP dealership

267900001

Unavailable

Half Ring

277000055

$9.49

CABLE BRACKET - Call your local BRP dealership

277001871

Unavailable

Socket Head Screw M5 X 16

205451660

$1.15

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable
