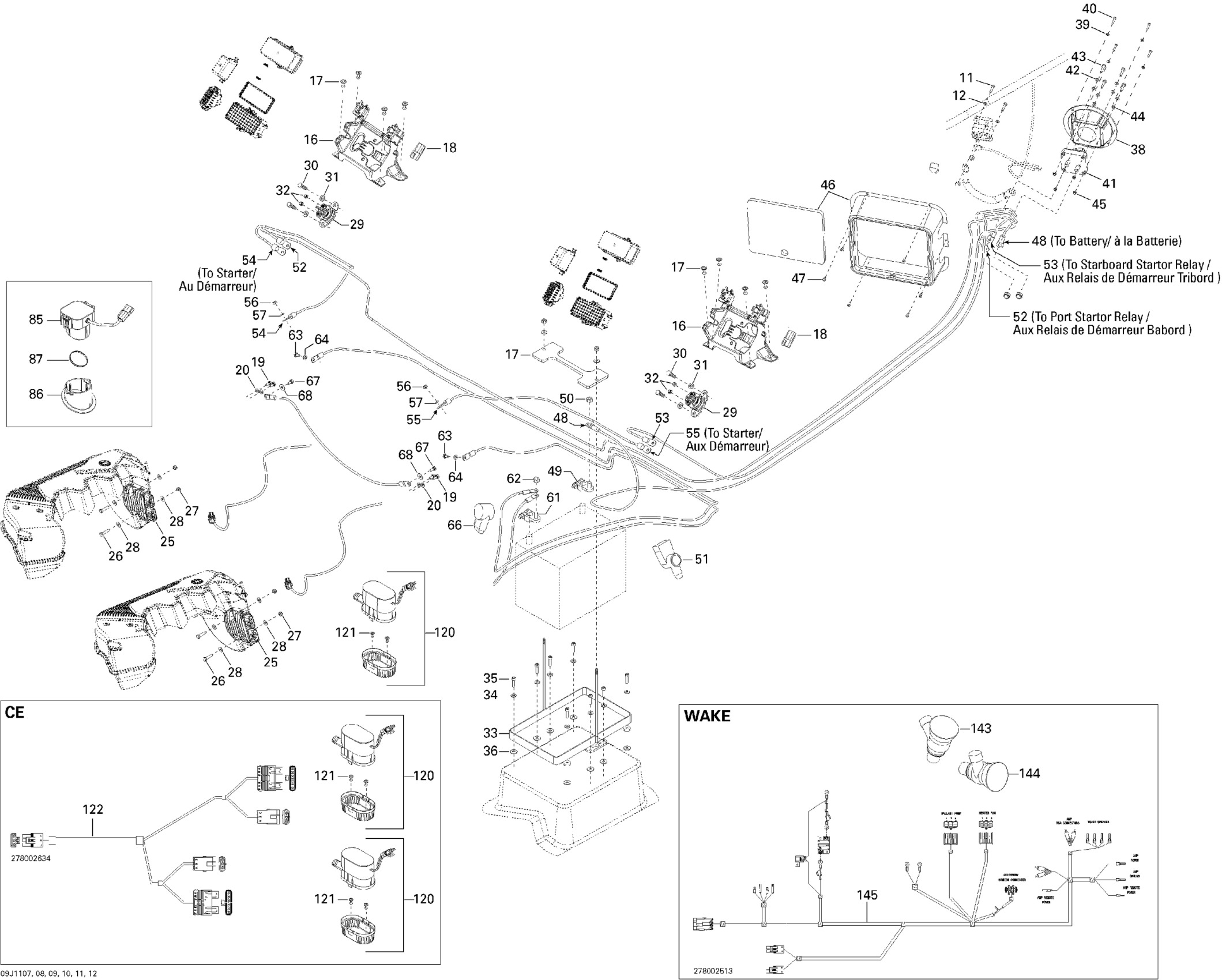

Sea-doo 210 Wake 430, 2011 Electrical System Diagram

#

Description
Price

11

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable

12

Flat Washer 4 mm, Stainless

234041600

$1.15

16

MODULE SUPPORT - Call your local BRP dealership

278002699

Unavailable

17

Pop Rivet 3/16"

293150123

$4.29

18

Diagnostic Connector

278002704

$19.49

19

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

20

Stainless Flat Washer M6

234061600

$0.33

25

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

26

Hex. Screw M6 X 25

207162560

$1.47

27

Hex. Elastic Stop Nut M6

232561600

$1.15

28

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

29

Starter Relay

278003012

$42.49

30

SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership

204100073

Unavailable

31

FLAT WASHER #10 - Call your local BRP dealership | Except STD

204100059

Unavailable

32

Hex. Elastic Stop Nut M6

232561600

$1.15

33

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

34

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

35

Socket Head Screw M6 X 25

205062560

$1.69

36

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

37

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

38

SWITCH SUPPORT - Call your local BRP dealership

204471341

Unavailable

39

Flat Washer 4 mm, Stainless

234041600

$1.15

40

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

41

BATTERY SWITCH - Call your local BRP dealership

204471339

Unavailable

42

Flat Washer M5, Stainless

234051600

$0.77

43

Phillips Screw M5 X 25

208652560

$3.39

44

Flat Washer M5, Stainless

234051600

$0.77

45

Hex. Elastic Nut M5 | X

232551600

$1.15

46

BATTERY SWITCH COVER - Call your local BRP dealership

204471175

Unavailable

47

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

48

POSITIF SWITCH CABLE - Call your local BRP dealership

204471193

Unavailable

49

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

50

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

51

RED BOOT - Call your local BRP dealership

204470269

Unavailable

52

RED CABLE - Call your local BRP dealership

204470853

Unavailable

53

RED CABLE - Call your local BRP dealership

204471423

Unavailable

54

RED CABLE - Call your local BRP dealership

204471429

Unavailable

55

Red Cable

204471188

Unavailable

56

Hex. Elastic Stop Nut M6

232561600

$1.15

57

Stainless Flat Washer M6

234061600

$0.33

59

GROUND CABLE - Call your local BRP dealership

204471191

Unavailable

60

GROUND CABLE - Call your local BRP dealership

204471192

Unavailable

61

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

62

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

63

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

64

Flat Washer M6, Stainless

234062600

$0.77

65

GROUND CABLE - Call your local BRP dealership

204470839

Unavailable

66

BOOT-BLACK - Call your local BRP dealership

278002575

Unavailable

67

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

68

Stainless Flat Washer M6

234061600

$0.33

85

Depth Sensor

278002954

$373.99

86

Depth Sensor Base

278001994

$27.99

87

Gel Pad

293550042

$21.99

120

PUMP BILGE 750 GPH replaced by RM-800 - Call your local BRP dealership | WAKE This part replaces 204471202.

278002977

Unavailable

121

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

122

Not Available As Spare Parts

XXX

Unavailable

123

Not Available As Spare Parts

XXX

Unavailable

124

HORN - Call your local BRP dealership

204470801

Unavailable

125

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

143

Ballast Pump | WAKE

204471407

Unavailable

144

Ballast Pump | WAKE

278002517

Unavailable

145

HARNESS, WAKE - Call your local BRP dealership

278002513

Unavailable
