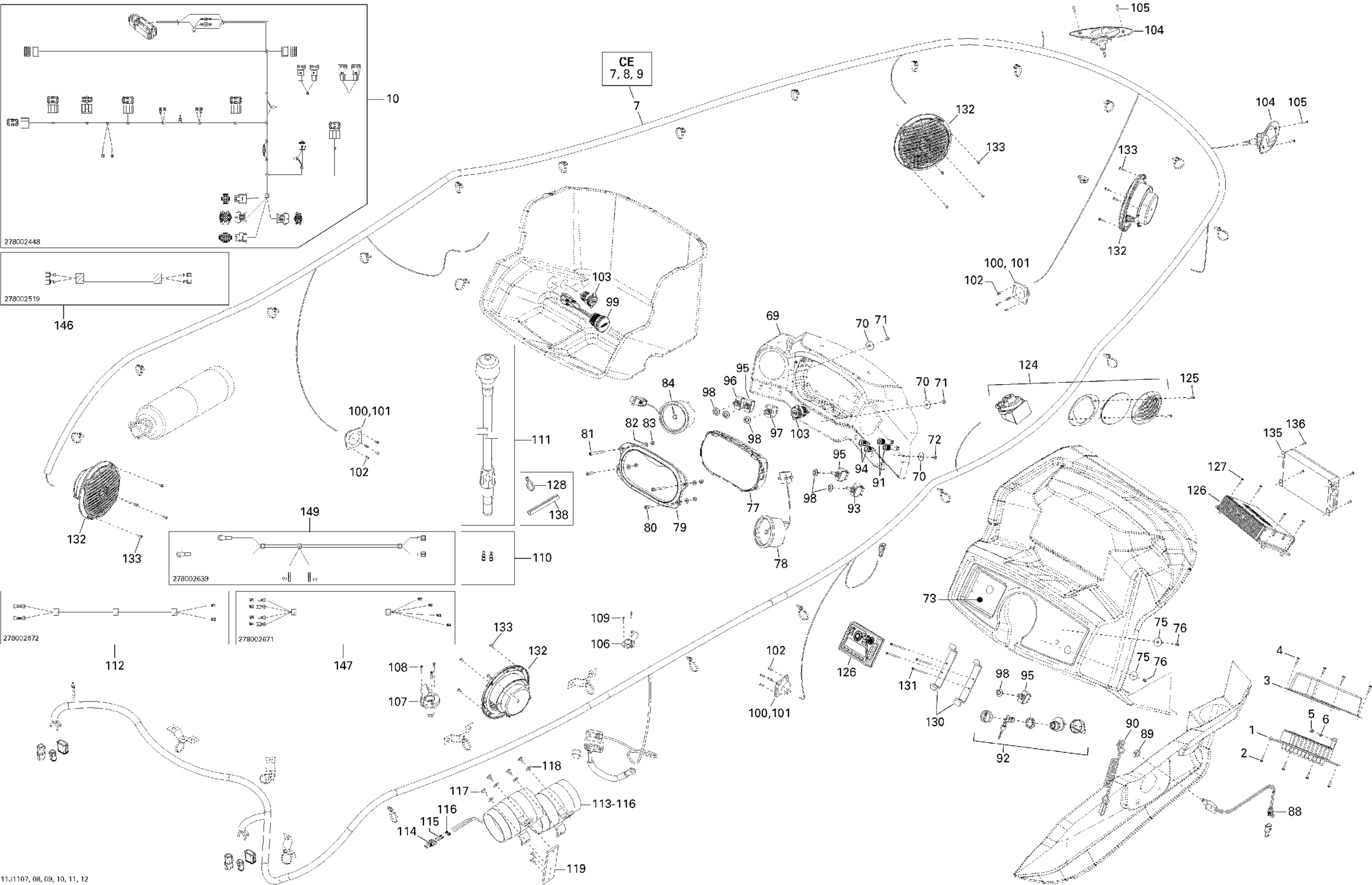

Sea-doo 210 Wake 430, 2011 10- Electrical Accessories Diagram
#
1
BREAKER CIRCUIT PANEL - Call your local BRP dealership
204471329
Unavailable
2
TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
250000090
Unavailable
3
Circuit Breaker Panel Cover
204471375
Unavailable
4
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
5
Hex. Nut
212100005
$1.35
6
Helical Lock Washer M5
234151601
$1.15
7
ACCESSORIES WIRING HARNESS - Call your local BRP dealership | CE
204471235
Unavailable
8
Not Available As Spare Parts
XXX
Unavailable
9
Not Available As Spare Parts
XXX
Unavailable
10
WIRING HARNESS_CONSOLE - Call your local BRP dealership
278002448
Unavailable
69
210 FASCIA ASSY - Call your local BRP dealership
278002644
Unavailable
70
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
71
Not Available As Spare Part - Friction Washer
Unavailable
72
Not Available As Spare Part - Friction Washer
Unavailable
73
STEREO PANEL - Call your local BRP dealership
278002523
Unavailable
75
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
76
Not Available As Spare Part - Friction Washer
Unavailable
77
CLUSTER-GAUGE - Call your local BRP dealership This part replaces 204471374.
204471539
Unavailable
78
FUEL/VOLT GAUGE - Call your local BRP dealership
278002424
Unavailable
79
GAUGE BEZEL - Call your local BRP dealership This part replaces 278002664.
278002433
Unavailable
80
Socket Head Screw M6 X 35
205063560
$2.22
81
SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership
205065060
Unavailable
82
Flat Washer M6, Stainless
234062600
$0.77
83
Hex. Elastic Stop Nut M6
232561600
$1.15
84
SPEEDO GAUGE - Call your local BRP dealership
278002423
Unavailable
88
LANYARD SWITCH - Call your local BRP dealership
278002421
Unavailable
89
FLANGED NUT - Call your local BRP dealership
278002472
Unavailable
90
SAFETY LANYARD - Call your local BRP dealership
278002450
Unavailable
91
START SWITCH - Call your local BRP dealership
278002504
Unavailable
92
Ignition Switch With Key
710002323
$86.99
93
SWITCH - Call your local BRP dealership
278002422
Unavailable
94
Switch
278002446
Unavailable
95
SWITCH - Call your local BRP dealership
278002413
Unavailable
96
SWITCH - Call your local BRP dealership
278002414
Unavailable
97
SWITCH - Call your local BRP dealership
278002505
Unavailable
98
NUT SWITCH - Call your local BRP dealership
278002416
Unavailable
99
USB CONNECTOR - Call your local BRP dealership
278002417
Unavailable
100
Courtesy Light Ass'y | Includes 29 to 30
204470026
$47.49
101
BULB - Call your local BRP dealership
204470081
Unavailable
102
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
103
DC Outlet
710001248
$37.99
104
LATERAL LIGHT KIT - Call your local BRP dealership
204470908
Unavailable
105
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
106
CONNECTOR - Call your local BRP dealership | 210 Challenger S
204130221
Unavailable
107
Not Available As Spare Parts
XXX
Unavailable
108
Not Available As Spare Parts
XXX
Unavailable
109
Not Available As Spare Part - Friction Washer
Unavailable
110
FERRULE TERMINAL - Call your local BRP dealership | Without Tower
204471430
Unavailable
111
Not Available As Spare Parts
XXX
Unavailable
112
TOWER HARNESS ASS'Y - Call your local BRP dealership | With Tower
278002672
Unavailable
113
Fan Ass'y | Includes 44 to 47
204470108
$144.99
114
Male Connector, 2 Circuits
278000220
$15.49
115
Female Terminal
278000223
$3.19
116
Wire Seal
278000218
$4.39
117
Pop Rivet 3/16"
293150008
$0.50
118
Flat Washer 5 mm, Stainless
234052600
$0.77
119
BRACKET - Call your local BRP dealership
204471389
Unavailable
126
Not Available As Spare Part - Friction Washer
Unavailable
127
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
209641960
Unavailable
128
Tie-Rap 180 mm
414115200
$0.11
130
BRACKET-STEREO - Call your local BRP dealership
277001743
Unavailable
131
PHILLIPS SCREW 6-32 X 2.5 - Call your local BRP dealership
204100254
Unavailable
132
Not Available As Spare Part - Friction Washer
Unavailable
133
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
135
Not Available As Spare Part - Friction Washer
Unavailable
136
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
138
SPLIT LOOM 3/8, METER - Call your local BRP dealership
204050326
Unavailable
146
COURTESY LIGHT EXTENSION - Call your local BRP dealership | WAKE
278002519
Unavailable
147
SPEAKER HARNESS - Call your local BRP dealership
278002671
Unavailable
149
Not Available As Spare Parts
XXX
Unavailable
