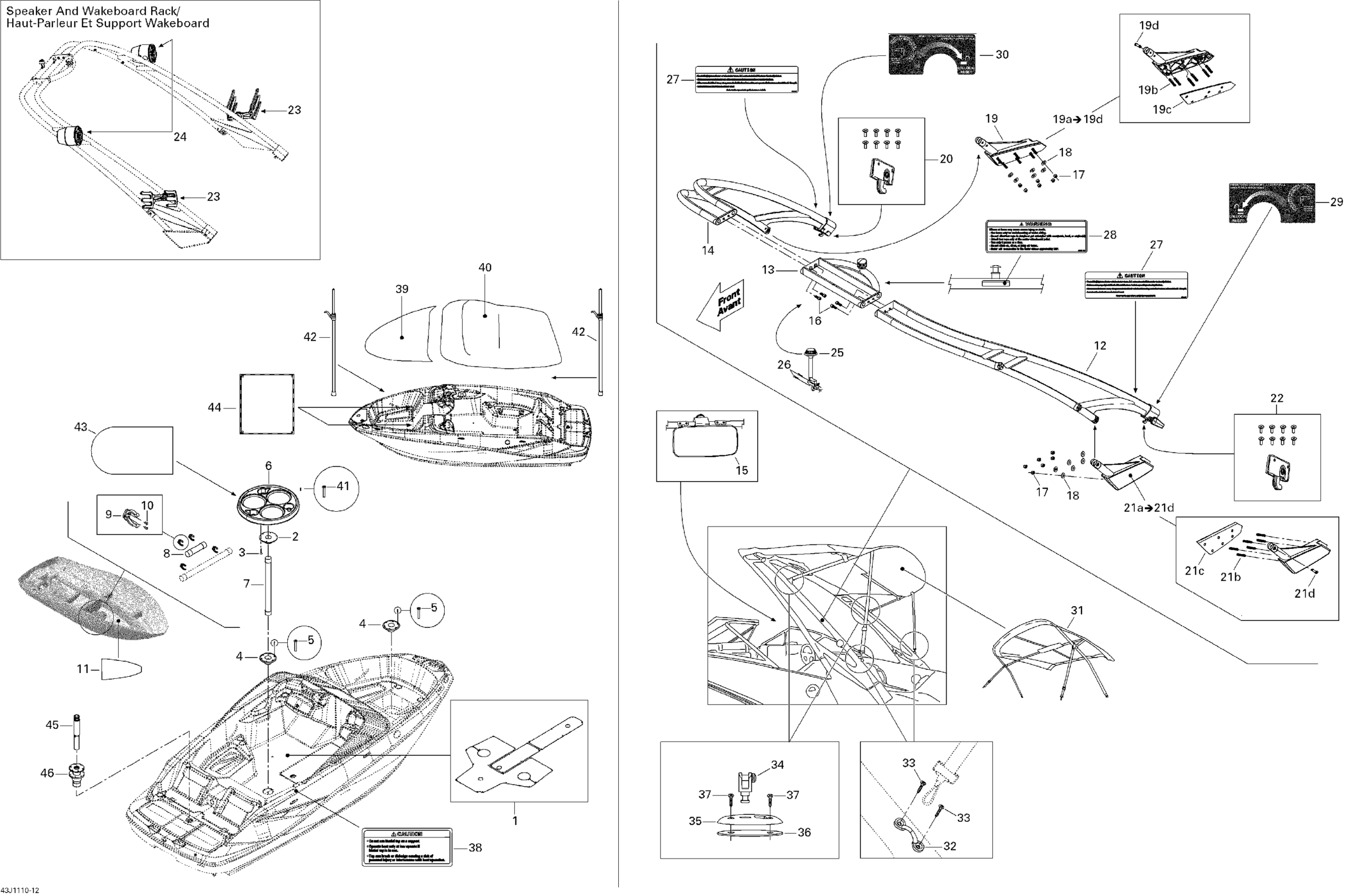

Sea-doo 210 Wake 430, 2011 09- Tower And Bimini Top Diagram
#
1
Cockpit Carpet
269800060
Unavailable
2
TABLE MOUNT - Call your local BRP dealership | Challenger S
204071315
Unavailable
3
TAPPING SCREW M5 X 19 - Call your local BRP dealership | Challenger S
209951960
Unavailable
4
TABLE BASE - Call your local BRP dealership
204071209
Unavailable
5
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
6
COCKPIT TABLE - Call your local BRP dealership | Challenger S
204073212
Unavailable
7
TABLE POST, LARGE - Call your local BRP dealership | Challenger S
204070634
Unavailable
8
TABLE POST, SMALL - Call your local BRP dealership
269800027
Unavailable
9
POLE CLIP - Call your local BRP dealership | Challenger S
204070342
Unavailable
10
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
11
SKI LOCKER CARPET - Call your local BRP dealership | Challenger SE
264000070
Unavailable
12
TOWER SIDE PORT/BLK 210/230 W/NUBS - Call your local BRP dealership This part replaces 269800450.
269800545
Unavailable
13
TOWER HEADER BLACK 210/230 - Call your local BRP dealership This part replaces 269800244.
269800544
Unavailable
14
STARBOARD SIDE TOWER - Call your local BRP dealership
269800451
Unavailable
15
MIRROR - Call your local BRP dealership
269800236
Unavailable
16
SCREW 1/2 X 13 X 1.25 - Call your local BRP dealership
269800197
Unavailable
17
HEX. NUT 1/2 X 13 - Call your local BRP dealership
269800421
Unavailable
18
TOWER MOUNT FENDER WASHER 1/2 - Call your local BRP dealership
269800344
Unavailable
19a
RH TOWER SUPPORT ASS'Y - Call your local BRP dealership
269800253
Unavailable
19b
STUD 1/2 - Call your local BRP dealership | Starboard
269800349
Unavailable
19c
TOWER MOUNT GASKET - 210 - STBD - Call your local BRP dealership
269800352
Unavailable
19d
TOWER MOUNT PIVOT BOLT 1/2 X 13 X 1.5 - Call your local BRP dealership
269800350
Unavailable
20
CAM LATCH KIT - Call your local BRP dealership | Starboard
204950247
Unavailable
21a
LH TOWER SUPPORT - Call your local BRP dealership
269800254
Unavailable
21b
STUD 1/2 - Call your local BRP dealership | Starboard
269800349
Unavailable
21c
TOWER MOUNT GASKET - 210 - PORT - Call your local BRP dealership
269800441
Unavailable
21d
TOWER MOUNT PIVOT BOLT 1/2 X 13 X 1.5 - Call your local BRP dealership
269800350
Unavailable
22
CAM LATCH KIT - Call your local BRP dealership | Starboard
204950247
Unavailable
23
WAKEBOARD RACK - Call your local BRP dealership
204072339
Unavailable
24
SPEAKER ASS. - Call your local BRP dealership
269800274
Unavailable
25
Stern Light
204471183
Unavailable
25
Bulb
204470053
Unavailable
26
SCREW 8-18 X 1 - Call your local BRP dealership
269800422
Unavailable
27
CAUTION LABEL, TOWER - Call your local BRP dealership | With Tower
269800405
Unavailable
28
WARNING LABEL, TOWER - Call your local BRP dealership | With Tower
204902068
Unavailable
29
LABEL-TOWER/LEVER-PORT - Call your local BRP dealership | With Tower
219903499
Unavailable
30
LABEL-TOWER/LEVER-STBD. - Call your local BRP dealership | With Tower
219903500
Unavailable
31
Bimini Top
269800218
Unavailable
32
STRAP EYE, STAINLESS - Call your local BRP dealership
269800358
Unavailable
33
SCREW 8-18 X 1 - Call your local BRP dealership
269800422
Unavailable
34
BIMINI POST - Call your local BRP dealership
204950033
Unavailable
35
BIMINI BASE - Call your local BRP dealership
204950034
Unavailable
36
BIMINI SPACER - Call your local BRP dealership
204950031
Unavailable
37
SCREW 8-18 X 1 - Call your local BRP dealership
269800422
Unavailable
38
CAUTION LABEL, BIMINI TOP - Call your local BRP dealership
204901331
Unavailable
39
Bow Cover
269800382
Unavailable
40
COCKPIT COVER - Call your local BRP dealership | With Tower
269800384
Unavailable
41
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
42
SUPPORT POLE COVER - Call your local BRP dealership
269800404
Unavailable
43
OVAL TABLE BAG - Call your local BRP dealership | Challenger S
269800385
Unavailable
44
HELM CONSOLE COVER - Call your local BRP dealership
269800386
Unavailable
45
SKI PYLON - Call your local BRP dealership
269800135
Unavailable
46
SKI PYLON RECEPTACLE - Call your local BRP dealership This part replaces 269800192.
269800432
Unavailable
