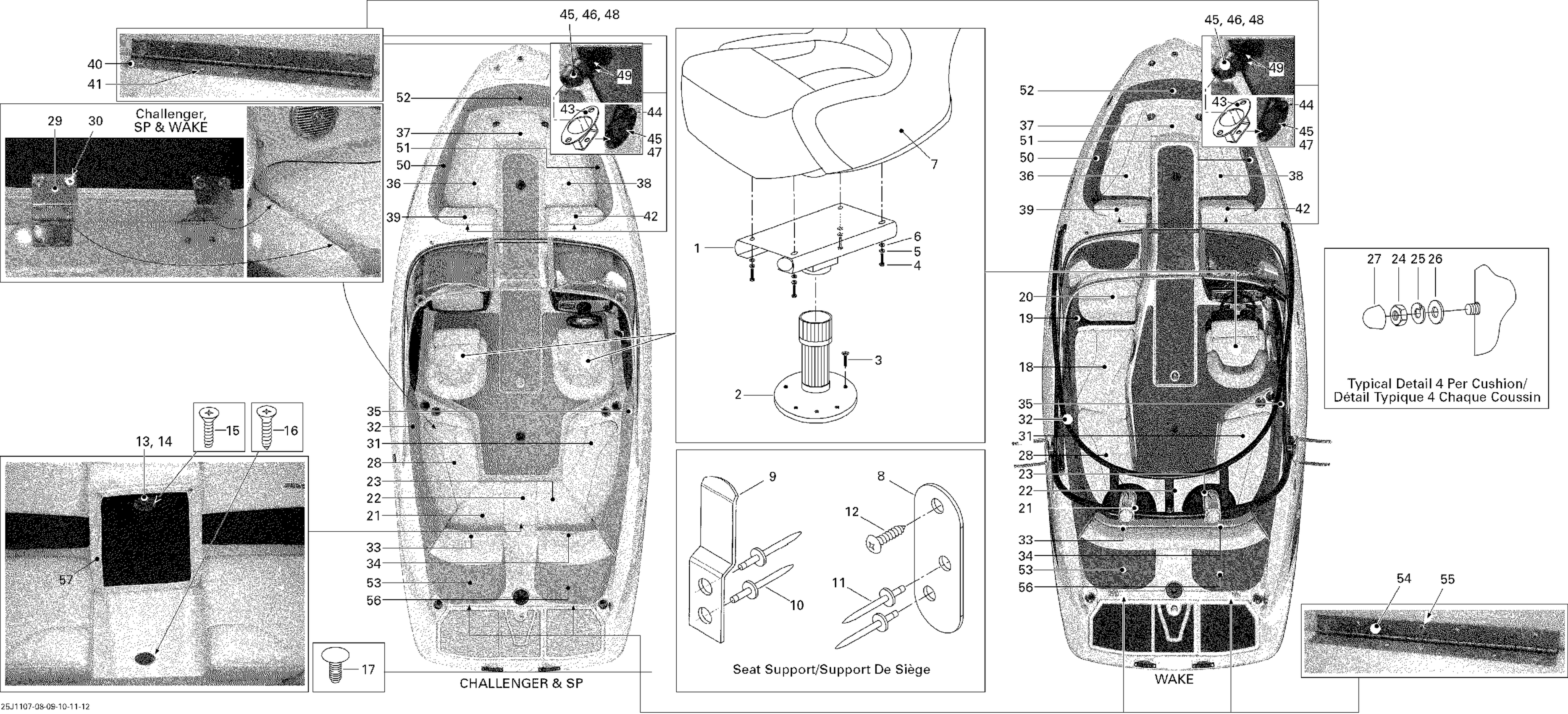

Sea-doo 210 Wake 430, 2011 09- Seat Diagram
#
1
SLIDE AND SWIVEL SEAT BASE - Call your local BRP dealership
204613742
Unavailable
2
SEAT PEDESTAL - Call your local BRP dealership
269001903
Unavailable
3
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership
204100201
Unavailable
4
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
5
Lock Washer 1/4”
211200025
$1.29
6
Flat Washer 8 mm, Stainless
234082600
$2.43
7
Bucket Seat
269002132
Unavailable
8
SEAT SUPPORT - Call your local BRP dealership
269001696
Unavailable
9
SEAT SUPPORT - Call your local BRP dealership
269001695
Unavailable
10
Pop Rivet 3/16"
293150043
$2.09
11
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
12
Phillips Screw #8 X 1/2”
204100030
Unavailable
13
SPACER MAGNET 1/8'' - Call your local BRP dealership
204130219
Unavailable
14
MAGNETIC CATCH ASS'Y - Call your local BRP dealership
204614513
Unavailable
15
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
16
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership
208442060
Unavailable
17
Not Available As Spare Parts
XXX
Unavailable
18
CUSHION ASS'Y, SPOTTER - Call your local BRP dealership
269002158
Unavailable
19
BACKREST SPOTTER, PORT - Call your local BRP dealership
269001785
Unavailable
20
STORAGE BACKREST SPOTTER, PORT - Call your local BRP dealership
269001780
Unavailable
21
REAR CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership
269002142
Unavailable
22
REAR CUSHION ASS'Y, CENTER - Call your local BRP dealership
269002143
Unavailable
23
Rear Cushion Ass'y, Starboard
269002144
Unavailable
24
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
25
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
26
Flat Washer 8 mm, Stainless
234082600
$2.43
27
Plastic Cap, White
204130008
Unavailable
28
WRAP AROUND CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership
269002145
Unavailable
29
HINGE, 90 - Call your local BRP dealership
269001590
Unavailable
30
SLOTTED BOLT 1/4?-20 X 1? - Call your local BRP dealership
204100095
Unavailable
31
WRAP AROUND CUSHION ASS'Y, STARBOARD - Call your local BRP dealership
269002146
Unavailable
32
REAR LATERAL BACKREST ASS'Y, ALAB PORT - Call your local BRP dealership
269002044
Unavailable
33
BACKREST ASSY/REAR-PORT - Call your local BRP dealership This part replaces 269002253.
269002722
Unavailable
34
BACKREST ASSY/REAR-STBD - Call your local BRP dealership This part replaces 269002254.
269002723
Unavailable
35
REAR LATERAL BACKREST ASS'Y, ALAB, STARB - Call your local BRP dealership
269002046
Unavailable
36
FRONT CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership
269002147
Unavailable
37
FRONT CUSHION ASS'Y, CENTER - Call your local BRP dealership
269002148
Unavailable
38
FRONT CUSHION ASS'Y, STARBOARD - Call your local BRP dealership
269002149
Unavailable
39
BACKREST ACCESS DOOR, PORT - Call your local BRP dealership
269002259
Unavailable
40
Hinge
204613980
Unavailable
41
Pop Rivet 3/16"
293150008
$0.50
42
BACKREST ACCESS DOOR, STARBOARD - Call your local BRP dealership
269002260
Unavailable
43
HOLDER - Call your local BRP dealership
204614762
Unavailable
44
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
45
HOLDER DOOR ASS'Y - Call your local BRP dealership
269002153
Unavailable
46
Pan Head Screw 10-32 X 1/2"
204100220
$2.51
47
Hex. Nut
212100005
$1.35
48
SCREW-HEX.HD.MACHINE #10 X 1 - Call your local BRP dealership
204100236
Unavailable
49
FLAT WASHER - Call your local BRP dealership
211200033
Unavailable
50
FRONT LATERAL CUSHION, PORT SIDE - Call your local BRP dealership
269002062
Unavailable
51
FRONT LATERAL BACKREST ASS'Y, ALAB., STA - Call your local BRP dealership
269002064
Unavailable
52
FRONT CENTER BACKREST, ALABASTER - Call your local BRP dealership
269002066
Unavailable
53
SUNDECK CUSHION, PORT - Call your local BRP dealership
269002264
Unavailable
54
Hinge
204613980
Unavailable
55
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
56
SUNDECK CUSHION, STARBOARD - Call your local BRP dealership
269002266
Unavailable
57
REAR FILLER BACKREST, CENTER - Call your local BRP dealership
269002150
Unavailable
