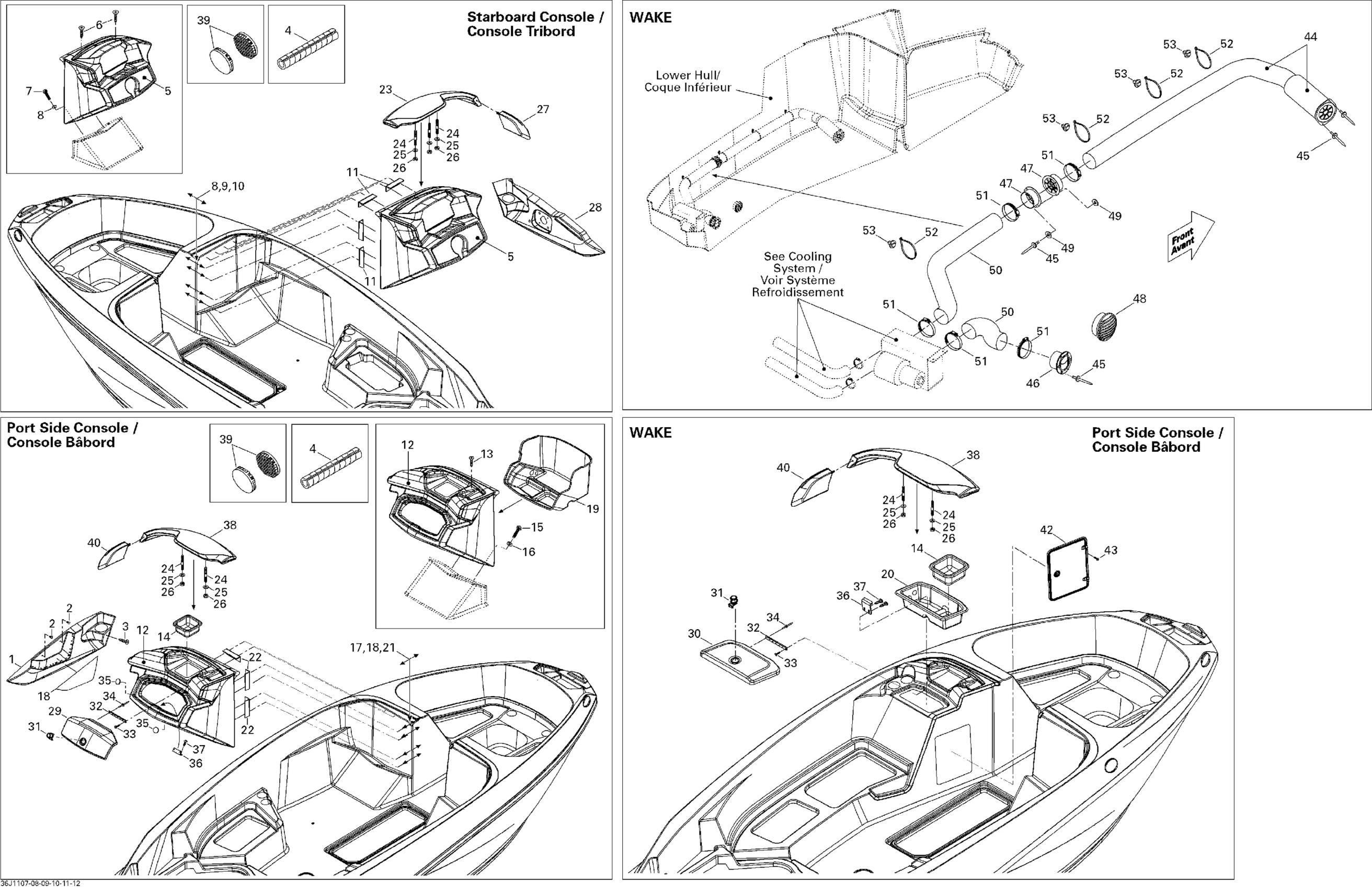

Sea-doo 210 Wake 430, 2011 09- Front Console And Glove Box And Heating System Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Not Available As Spare Parts

XXX

Unavailable

3

Not Available As Spare Parts

XXX

Unavailable

4

SPLIT LOOM 3/8, METER - Call your local BRP dealership

204050326

Unavailable

5

CONSOLE ASS'Y, STARBOARD - Call your local BRP dealership

291003174

Unavailable

6

PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership

204100056

Unavailable

7

Hex. Screw M6 X 30

207163060

$1.48

8

Flat Washer M6, Stainless

234062600

$0.77

9

Hex. Screw M6 X 45

207164560

$1.89

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Upper Glove Box

291002949

Unavailable

15

Not Available As Spare Parts

XXX

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Not Available As Spare Parts

XXX

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

DRY STORAGE BOX - Call your local BRP dealership

291003047

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

CONSOLE BROW, STARBOARD - Call your local BRP dealership

291002867

Unavailable

24

STUD 1/4?-20 X 2? - Call your local BRP dealership

204100033

Unavailable

25

FLAT WASHER 9/32? - Call your local BRP dealership

204100089

Unavailable

26

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

27

CONSOLE BROW PAD, STARBOARD - Call your local BRP dealership

291003035

Unavailable

28

Shifter Panel Fascia, Starboard

291002868

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

30

LOWER GLOVE BOX DOOR - Call your local BRP dealership

291003046

Unavailable

31

LATCH - Call your local BRP dealership

204073210

Unavailable

32

HINGE - Call your local BRP dealership

291003006

Unavailable

33

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

34

Pop Rivet 3/16"

293150008

$0.50

35

Not Available As Spare Parts

XXX

Unavailable

36

KEEPER - Call your local BRP dealership

291003012

Unavailable

37

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

38

CONSOLE BROW, PORT SIDE - Call your local BRP dealership

291002878

Unavailable

39

DUAL LOCK, 1/2 X 5 1/2 - Call your local BRP dealership

262000084

Unavailable

40

Console Brow Pad, Port Side

291003048

Unavailable

42

ACCESS DOOR - Call your local BRP dealership

204073802

Unavailable

43

SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership

202000203

Unavailable

44

HEATER TUBE ASS'Y - Call your local BRP dealership

204073799

Unavailable

45

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

46

HEATER VENT GRILL - Call your local BRP dealership

204072852

Unavailable

47

HEATER GRILL - Call your local BRP dealership

204072853

Unavailable

48

GRILL S/S - INTAKE/HEATER - Call your local BRP dealership This part replaces 204073011.

204073852

Unavailable

49

Flat Washer 3 mm, Stainless Steel

234031600

$0.55

50

INTAKE HOSE - Call your local BRP dealership

204340435

Unavailable

51

Tridon Clamp

293650179

$11.49

52

Tie Wrap 368 mm

293750008

$1.04

53

Mount Dart

293730040

$1.04
