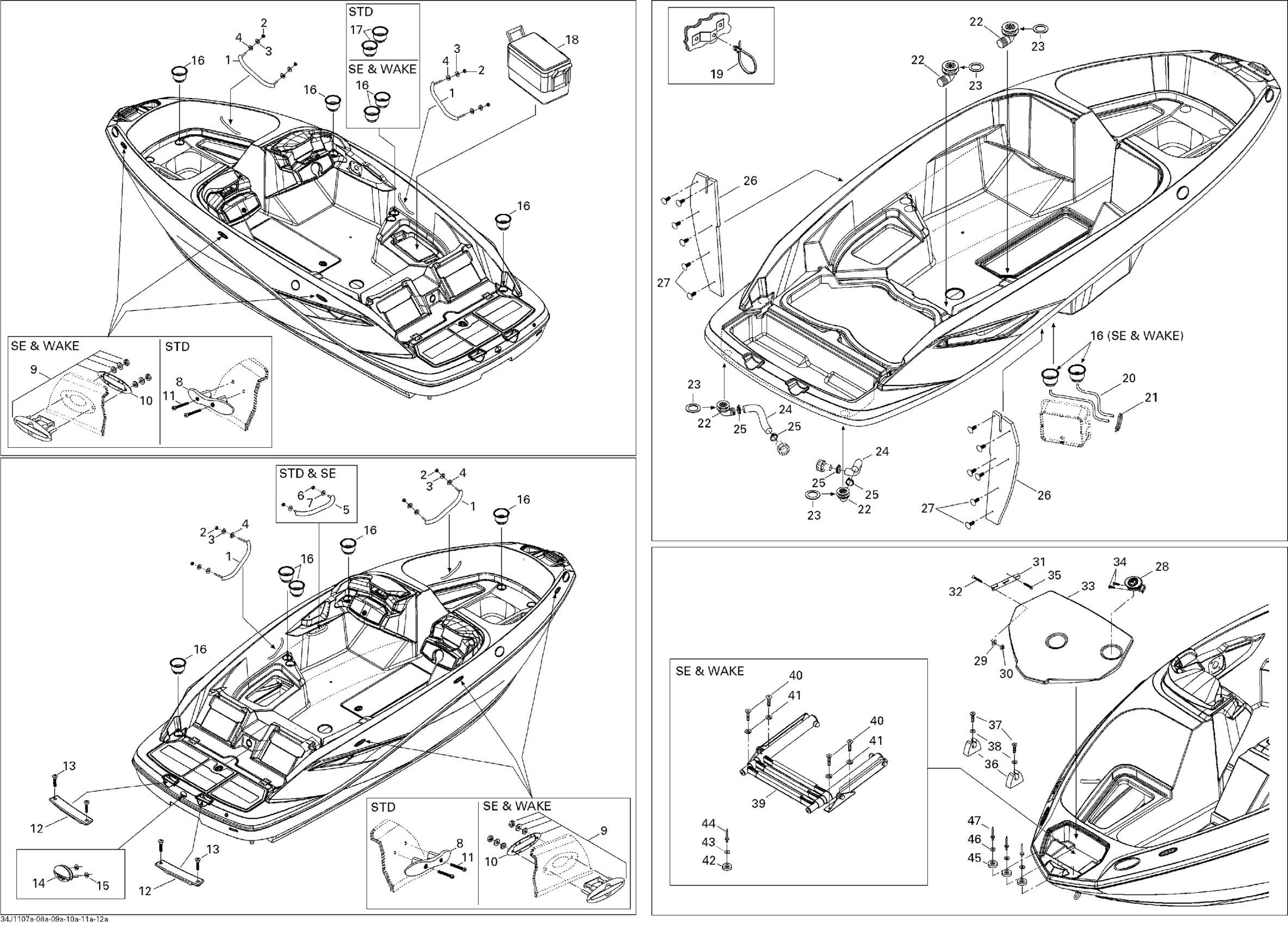

Sea-doo 210 Wake 430, 2011 Body And Accessories 1 Diagram

#

Description
Price

1

GRAB HANDLE 12'' - Call your local BRP dealership

262000103

Unavailable

2

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

3

Flat Washer 8 mm, Stainless

234082600

$2.43

4

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

5

GRAB HANDLE ASS'Y - Call your local BRP dealership

204073791

Unavailable

6

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

7

Flat Washer 10 mm, Stainless

234002600

$2.22

8

Not Available As Spare Parts

XXX

Unavailable

9

PULL-UP CLEAT - Call your local BRP dealership

204073514

Unavailable

10

CLEAT BACKING PLATE - Call your local BRP dealership | Models Without Tower

204073516

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable

12

GRIP HANDLE, BLACK - Call your local BRP dealership

204070194

Unavailable

13

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

14

SKI TOW - Call your local BRP dealership

291002905

Unavailable

15

Lock Washer 8 mm, Stainless

234181601

$0.55

16

CUP HOLDER - Call your local BRP dealership | SE & SP

204073519

Unavailable

17

Not Available As Spare Parts

XXX

Unavailable

18

COOLER, 23 LITERS (25 QUARTS) - Call your local BRP dealership

204072662

Unavailable

19

TIE RAP WITH DART - Call your local BRP dealership

204130098

Unavailable

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

Tie Wrap 142 mm

293750002

$1.25

22

DRAIN FITTING - Call your local BRP dealership

204073301

Unavailable

23

GASKET - Call your local BRP dealership

293250255

Unavailable

24

HOSE 1-1/2, REINFORCED - Call your local BRP dealership

262000072

Unavailable

25

NORMA CLAMP - Call your local BRP dealership

275500823

Unavailable

26

FOAM/ S-WALL SEAL - Call your local BRP dealership

291003045

Unavailable

27

Black Dart

293730014

$0.99

28

Stainless Latch

204072838

$144.99

29

Flat Washer 4 mm

234040600

$0.55

30

Elastic Stop Nut M4

232541600

$1.15

31

HINGE - Call your local BRP dealership

291002974

Unavailable

32

PHILLIPS SCREW M4 X 20 - Call your local BRP dealership

208442060

Unavailable

33

ANCHOR COVER - Call your local BRP dealership This part replaces 291003716.

291003176

Unavailable

34

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

35

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

36

Pole Support

291000642

Unavailable

37

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

38

Flat Washer 4 mm, Stainless

234041600

$1.15

39

RETRACTABLE LADDER - Call your local BRP dealership

295100387

Unavailable

40

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

41

Lock Washer Helical M6

234161601

$1.15

42

BUMPER PAD - Call your local BRP dealership

204073815

Unavailable

43

Flat Washer 4 mm, Stainless

234041600

$1.15

44

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

45

BUMPER PAD - Call your local BRP dealership

204073815

Unavailable

46

Flat Washer 4 mm, Stainless

234041600

$1.15

47

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable
