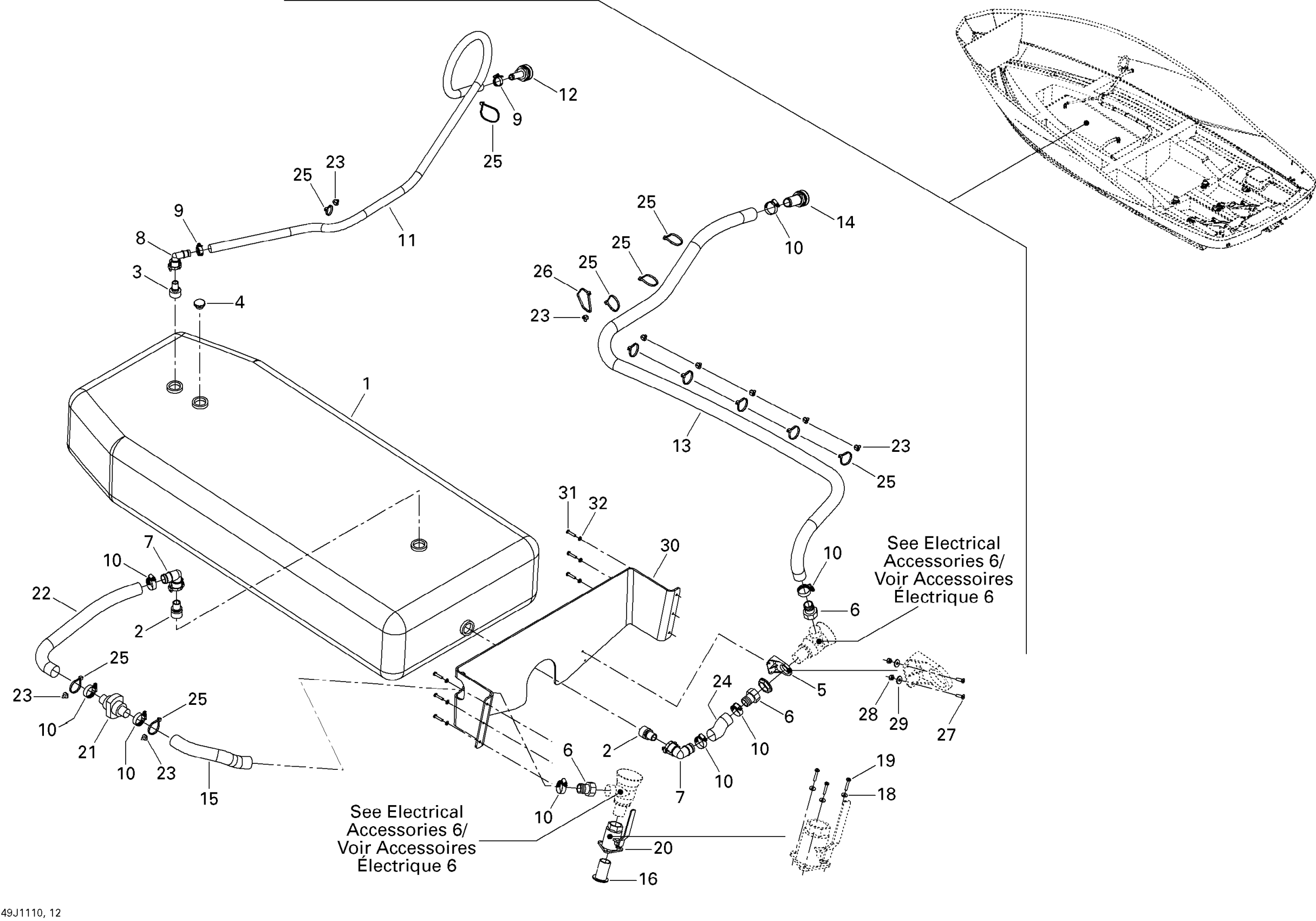

Sea-doo 210 Wake 430, 2011 Ballast System Diagram

#

Description
Price

1

BAG-BALLAST - Call your local BRP dealership

292800007

Unavailable

2

VALVE FITTING 1 - Call your local BRP dealership

204130265

Unavailable

3

FITTING - Call your local BRP dealership

204130188

Unavailable

4

PLUG - Call your local BRP dealership

204061154

Unavailable

5

MOUNTING PUMP BRACKET - Call your local BRP dealership

204061378

Unavailable

6

PUMP FITTING - Call your local BRP dealership

204130266

Unavailable

7

ELBOW FITTING 1 - Call your local BRP dealership

204130267

Unavailable

8

ELBOW FITTING - Call your local BRP dealership

204130189

Unavailable

9

Tridon Clamp

293650016

$10.99

10

Tridon Gear Clamp

293650045

$5.69

11

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

12

Thru Hull Fitting 3/4"

262000074

Unavailable

13

BALLAST HOSE 1-1/8 - Call your local BRP dealership

204061377

Unavailable

14

THRU HULL FITTING 1-1/8 - Call your local BRP dealership

262000075

Unavailable

15

BALLAST HOSE 1-1/8 - Call your local BRP dealership

204061377

Unavailable

16

HULL INSERT (BALLAST) - Call your local BRP dealership

262000130

Unavailable

18

Flat Washer M6, Stainless

234062600

$0.77

19

PHILLIPS TAPPING SCREW M6.3 X 25 - Call your local BRP dealership

209662560

Unavailable

20

SEACOCK 1 NPT - Call your local BRP dealership This part replaces 262000129.

204940073

Unavailable

21

CHECK VALVE 1-1/8 - Call your local BRP dealership

262000088

Unavailable

22

BALLAST HOSE 1-1/8 - Call your local BRP dealership

204061377

Unavailable

23

Mount Dart

293730040

$1.04

24

BALLAST HOSE 1-1/8 - Call your local BRP dealership

204061377

Unavailable

25

Tie-Rap 173 mm

293750009

$1.04

26

Tie Wrap 368 mm

293750008

$1.04

27

PHILLIPS SCREW M4 X 20 - Call your local BRP dealership

208442060

Unavailable

28

Elastic Stop Nut M4

232541600

$1.15

29

Flat Washer 4 mm, Stainless

234042600

$1.15

30

Bracket Ass'y (Ballast)

262000145

Unavailable

31

Hex. Screw M6 X 30

207163060

$1.48

32

Flat Washer M6, Stainless

234062600

$0.77
