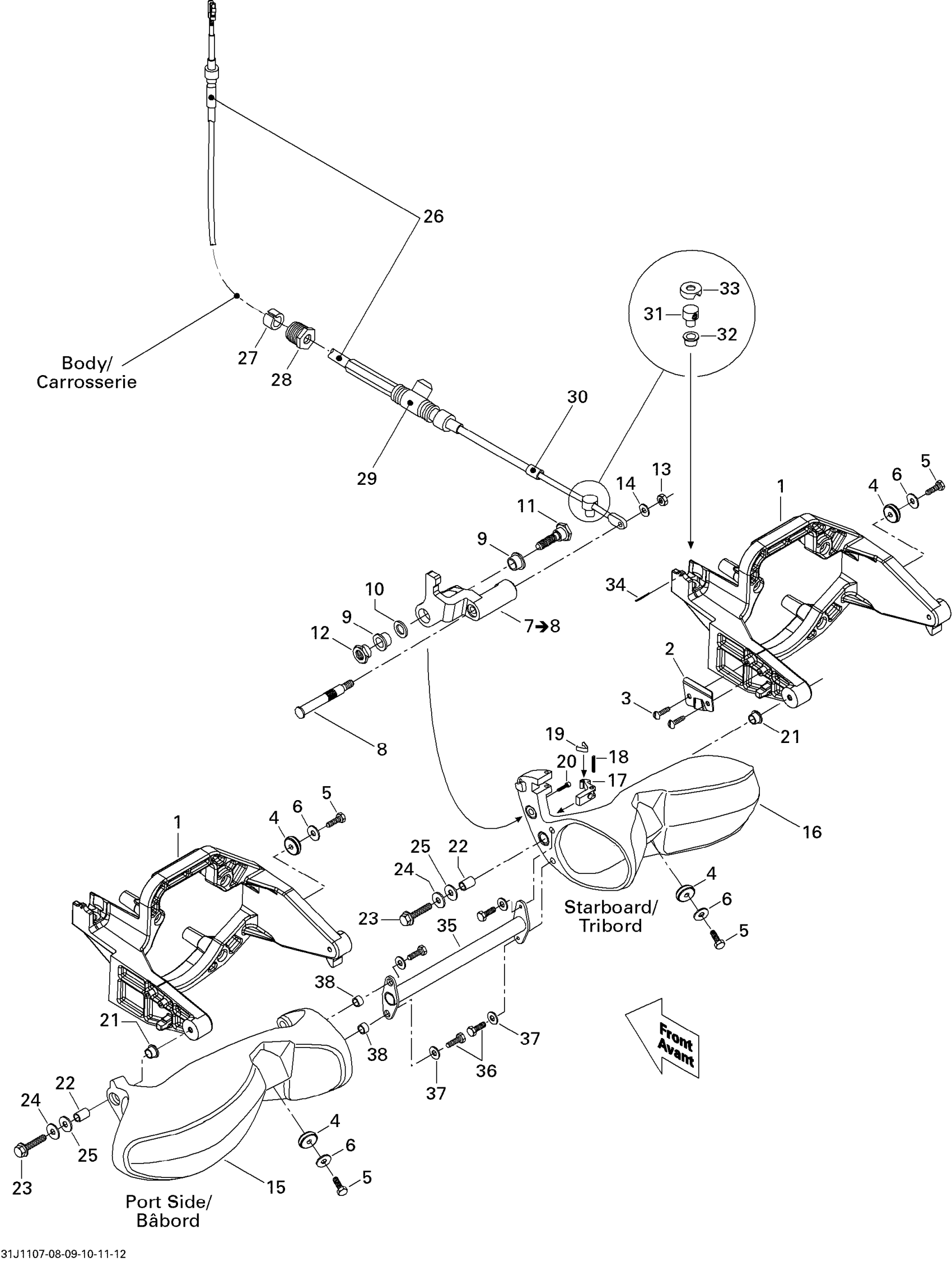

Sea-doo 210 Wake 430, 2011 Reverse Diagram

#

Description
Price

1

Reverse Gate Support

204170214

$189.99

2

STOP PAWL - Call your local BRP dealership

271000485

Unavailable

3

SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership

204100122

Unavailable

4

Anode Zinc

271001813

$18.99

5

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

6

Stainless Flat Washer M6

234061600

$0.33

7

NEEDS DESCRIPTION | Includes 7 to 8 This part replaces 204170230.

0460979

$224.99

8

PIN - Call your local BRP dealership

204130037

Unavailable

9

BUSHING - Call your local BRP dealership

204130036

Unavailable

10

WASHER, NYLON - Call your local BRP dealership

204100237

Unavailable

11

SHOULDER SCREW - Call your local BRP dealership

204100124

Unavailable

12

SHOULDER NUT - Call your local BRP dealership

204100123

Unavailable

13

NEEDS DESCRIPTION This part replaces 204100034.

0460000

$0.60

14

Flat Washer 5 mm, Stainless

234052600

$0.77

15

Reverse Gate, Port Side

268000106

$369.99

16

Reverse Gate, Starboard

268000107

$359.99

17

HOOK - Call your local BRP dealership

204170220

Unavailable

18

Pin

211400009

$1.68

19

Spring

271000431

$15.49

20

Socket Head Screw

204100127

$3.70

21

Bushing

204130237

$12.11

22

Sleeve

204170177

$33.99

23

Hex. Flange Screw 18 X 1.56

204100163

$9.09

24

Flat Washer 8 mm, Stainless

234082600

$2.43

25

WASHER, NYLON - Call your local BRP dealership

204100128

Unavailable

26

Reverse Cable

268000110

$148.49

27

Slip Grommet - Call your local BRP dealership

204130420

Unavailable

28

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

29

End Piece

277001583

$14.49

30

Wiper Rod

277001582

$11.11

31

THREADED END PIECE - Call your local BRP dealership

204130038

Unavailable

32

Bushing

204130237

$12.11

33

Reverse Cable Bushing - Call your local BRP dealership This part replaces 204170212.

296000396

Unavailable

34

Cotter Pin

204130040

$2.85

35

REVERSE ROD - Call your local BRP dealership

268000075

Unavailable

36

SCREW HEX. M4 X 20 - Call your local BRP dealership

207142060

Unavailable

37

Flat Washer 4 mm, Stainless

234042600

$1.15

38

SPACER BUSHING - Call your local BRP dealership

204170026

Unavailable
