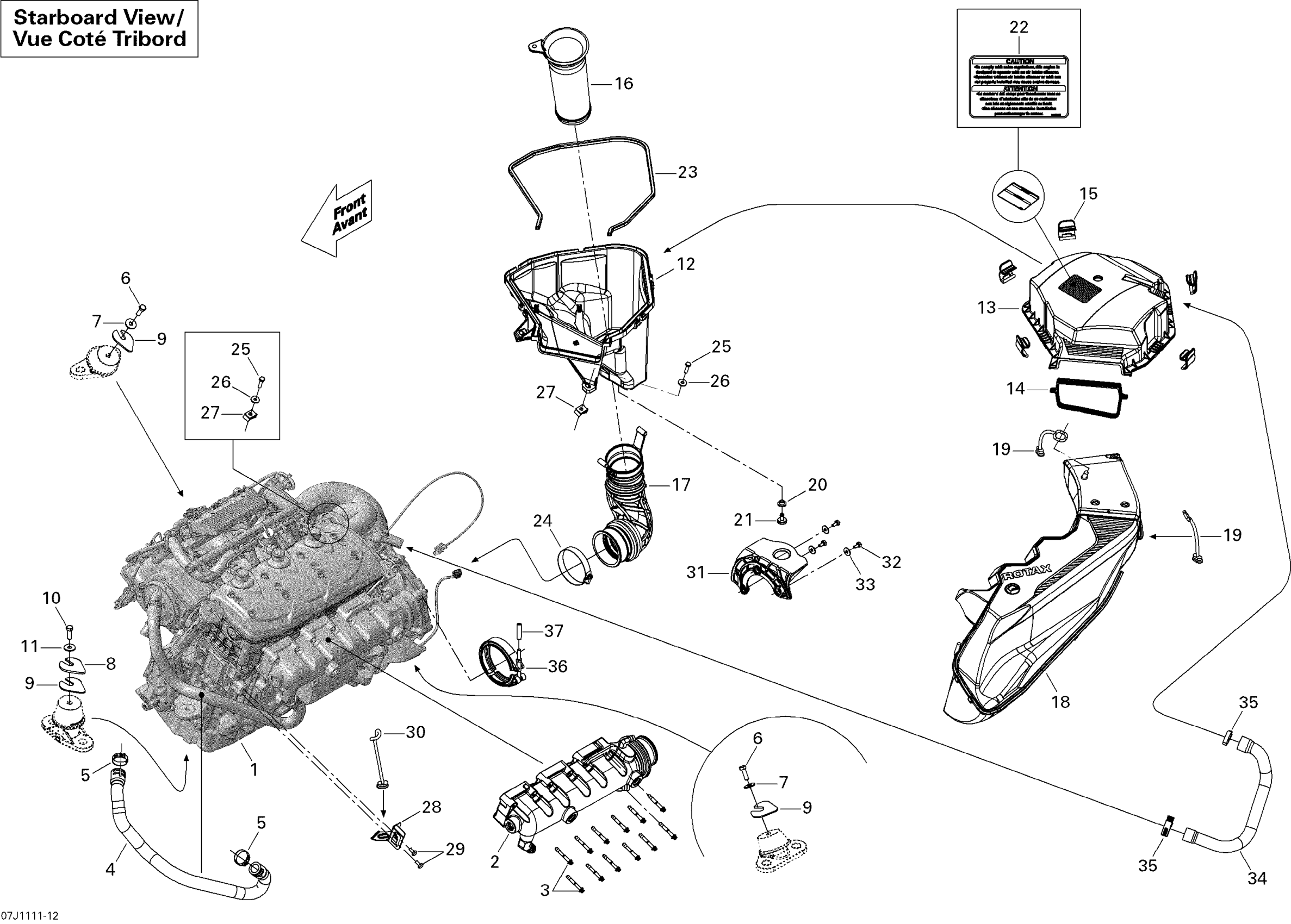

Sea-doo 210 Wake 430, 2011 01- Engine And Air Intake Silencer Diagram
#
Description
Price
1
Engine Long Block This part replaces 420150338.
420150394
$4.00
1
Engine Long Block This part replaces 420150338.
420150394
$4.00
1
Engine Long Block This part replaces 420150338.
420150394
$4.00
2
Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.
296000422
$839.99
3
Torx Flange Screw M6 X 45
420641198
$4.12
4
FORMED HOSE - Call your local BRP dealership
420822173
Unavailable
5
Crimp Clamp
293650217
$8.47
6
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
7
Flat Washer 8 mm, Stainless
234082600
$2.43
8
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
9
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
10
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
11
Flat Washer 8 mm, Stainless
234082600
$2.43
12
AIR SILENCER LOW - Call your local BRP dealership
273000250
Unavailable
13
Air Silencer Upper
273000249
$61.99
14
SEAL - Call your local BRP dealership
293250190
$15.49
15
Clip
269501718
$15.89
16
Intake Hose
273000359
$48.99
17
CONNECTOR HOSE - Call your local BRP dealership
273000251
Unavailable
18
INTAKE TUBE - Call your local BRP dealership
273000253
Unavailable
19
Strap
269501299
$19.49
20
GROMMET - Call your local BRP dealership
293720064
Unavailable
21
CHECK VALVE - Call your local BRP dealership
275500454
Unavailable
22
Caution Decal, Air Silencer
219902673
Unavailable
23
NEOPRENE SEAL - Call your local BRP dealership
293200123
Unavailable
24
Tridon Clamp
293650179
$11.49
25
Hex. Screw M6 X 25, Scotch Grip | With Catalyst
207362560
$1.47
26
Flat Washer M6, Stainless
234062600
$0.77
27
Panel Nut M6 X 1
420942108
$14.28
28
AIR BOX BRACKET - Call your local BRP dealership
273000260
Unavailable
29
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
30
Strap
273000261
$16.49
31
AIR BOX SUPPORT - Call your local BRP dealership
270000735
Unavailable
32
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
33
Flat Washer M6, Stainless
234062600
$0.77
34
Formed Hose
270000807
$65.49
35
Tridon Gear Clamp
293650051
$4.19
36
Exhaust Clamp
274001417
$58.99
37
Polyurethane Hose 10000Mm Long
219704410
$56.99
