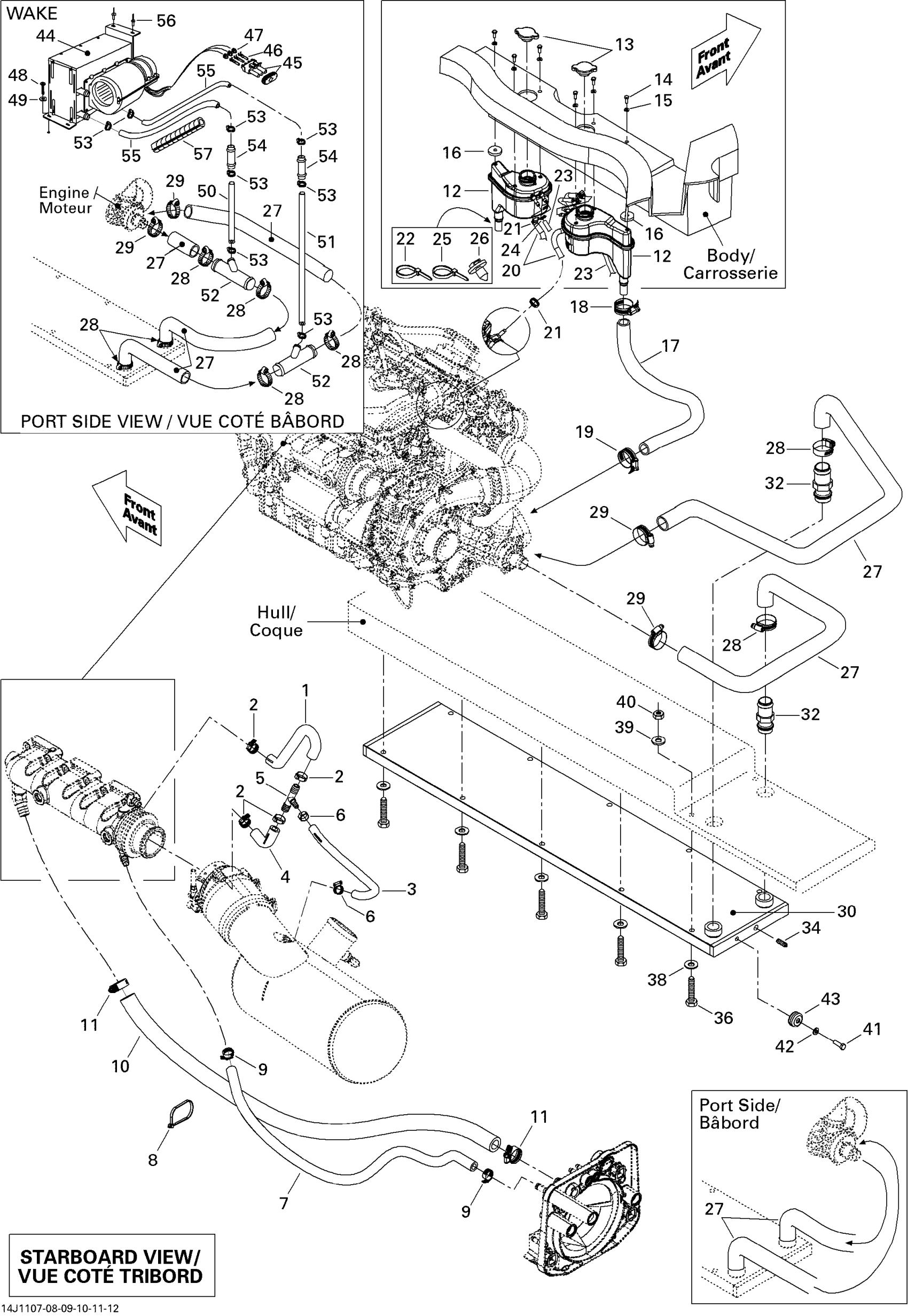

Sea-doo 210 Wake 430, 2011 Cooling System Diagram

#

Description
Price

1

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

2

Tridon Gear Clamp

293650172

$2.68

3

Formed Hose | Without Catalyst

276000246

$14.92

4

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

5

T-Fitting

293710116

$14.27

6

Tridon Gear Clamp

293650171

$2.46

7

Was 276000001 Hose 12.5 mm

219704394

$42.87

8

Tie Wrap 368 mm

293750008

$0.85

9

Tridon Gear Clamp

293650172

$2.68

10

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

11

Tridon Gear Clamp

293650051

$3.61

12

Coolant Tank

276000265

$102.67

13

Pressure Cap | Includes 720 to 720a

276000100

$20.77

14

Socket Head Screw M6 X 25

205062560

$1.42

15

Flat Washer M6, Stainless

234062600

$0.64

16

SPACER - Call your local BRP dealership

705202084

Unavailable

17

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

18

Tridon Gear Clamp

293650051

$3.61

19

Tridon Gear Clamp

293650019

$4.81

20

Was 275500549 Hose 1/4"

219704357

$178.33

21

Oetiker Gear Clamp

293650025

$2.46

22

Tie Wrap 142 mm

293750002

$0.88

23

Polyurethane Hose 10000Mm Long

219704410

$46.12

24

Tie Wrap 94 mm | 4X4

293750001

$0.83

25

Not Available As Spare Parts

XXX

Unavailable

25

Tie Wrap 142 mm

293750002

$0.88

26

Not Available As Spare Parts

XXX

Unavailable

26

Mount Dart

293730040

$0.86

27

RUBBER HOSE, PORT - Call your local BRP dealership

204061380

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

28

Tridon Gear Clamp

293650045

$4.51

29

Tridon Gear Clamp

293650045

$4.51

30

HEAT EXCHANGER - Call your local BRP dealership

204300255

Unavailable

32

Hose Fitting - Call your local BRP dealership

204300133

Unavailable

34

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

36

SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership

205405060

Unavailable

38

Flat Washer 10 mm, Stainless

234000600

$1.07

39

Flat Washer 10 mm, Stainless

234002600

$1.85

40

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

41

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

42

Stainless Flat Washer M6

234061600

$0.25

43

Anode Zinc

271001813

$13.62

44

HEATER UNIT - Call your local BRP dealership | WAKE

204300198

Unavailable

45

Male Housing, 3 Circuits

278000273

$7.59

46

Female Terminal

278000223

$2.55

47

Wire Seal

278000218

$3.48

48

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

49

Flat Washer 5 mm, Stainless

234052600

$0.64

50

HOSE 16 MM - Call your local BRP dealership | WAKE

204300204

Unavailable

51

HOSE 16 MM - Call your local BRP dealership | WAKE

204300204

Unavailable

52

Y-Fitting | WAKE

204130174

Unavailable

53

Tridon Gear Clamp

293650045

$4.51

54

STRAIGHT FITTING, 5/8'' X 5/8'' - Call your local BRP dealership | WAKE

276000271

Unavailable

55

HOSE 16 MM - Call your local BRP dealership | WAKE

204300204

Unavailable

56

RIVET - Call your local BRP dealership

293150065

Unavailable

57

SLIT CONDUIT - Call your local BRP dealership

204471077

Unavailable
