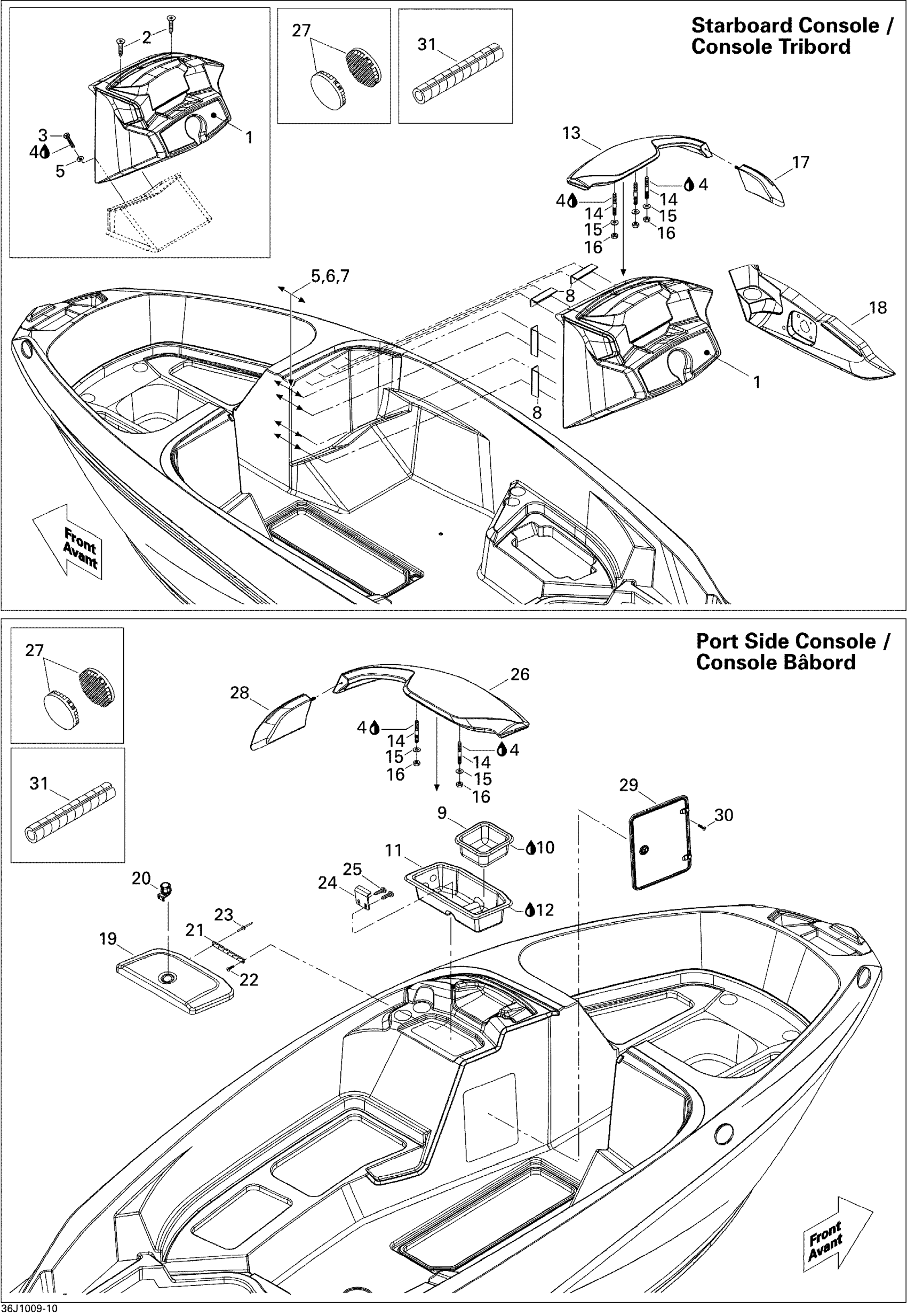

Sea-doo 210 Wake 310, 2x155 1503NA ETC, 2010 09- Front Console And Glove Box Diagram

#

Description
Price

1

Console Ass'y, Starboard

291002870

Unavailable

2

PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership

204100056

Unavailable

3

Hex. Screw M6 X 30

207163060

$1.48

4

Loctite 243, 10 ml

293800060

$21.49

5

Flat Washer M6, Stainless

234062600

$0.77

6

Hex. Screw M6 X 45

207164560

$1.89

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Upper Glove Box

291002949

Unavailable

10

Silicone Sealant 51388, 300 ml

296000309

$36.99

11

DRY STORAGE BOX - Call your local BRP dealership

291003047

Unavailable

12

Silicone Sealant 51388, 300 ml

296000309

$36.99

13

CONSOLE BROW, STARBOARD - Call your local BRP dealership

291002867

Unavailable

14

STUD 1/4?-20 X 2? - Call your local BRP dealership

204100033

Unavailable

15

FLAT WASHER 9/32? - Call your local BRP dealership

204100089

Unavailable

16

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

17

CONSOLE BROW PAD, STARBOARD - Call your local BRP dealership

291003035

Unavailable

18

Shifter Panel Fascia, Starboard

291002868

Unavailable

19

LOWER GLOVE BOX DOOR - Call your local BRP dealership

291003046

Unavailable

20

LATCH - Call your local BRP dealership

204073210

Unavailable

21

HINGE - Call your local BRP dealership

291003006

Unavailable

22

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

23

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

24

KEEPER - Call your local BRP dealership

291003012

Unavailable

25

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

26

CONSOLE BROW, PORT SIDE - Call your local BRP dealership

291002878

Unavailable

27

DUAL LOCK, 1/2 X 5 1/2 - Call your local BRP dealership

262000084

Unavailable

28

Console Brow Pad, Port Side

291003048

Unavailable

29

ACCESS DOOR - Call your local BRP dealership

204073802

Unavailable

30

SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership

202000203

Unavailable

31

SPLIT LOOM 3/8, METER - Call your local BRP dealership

204050326

Unavailable
