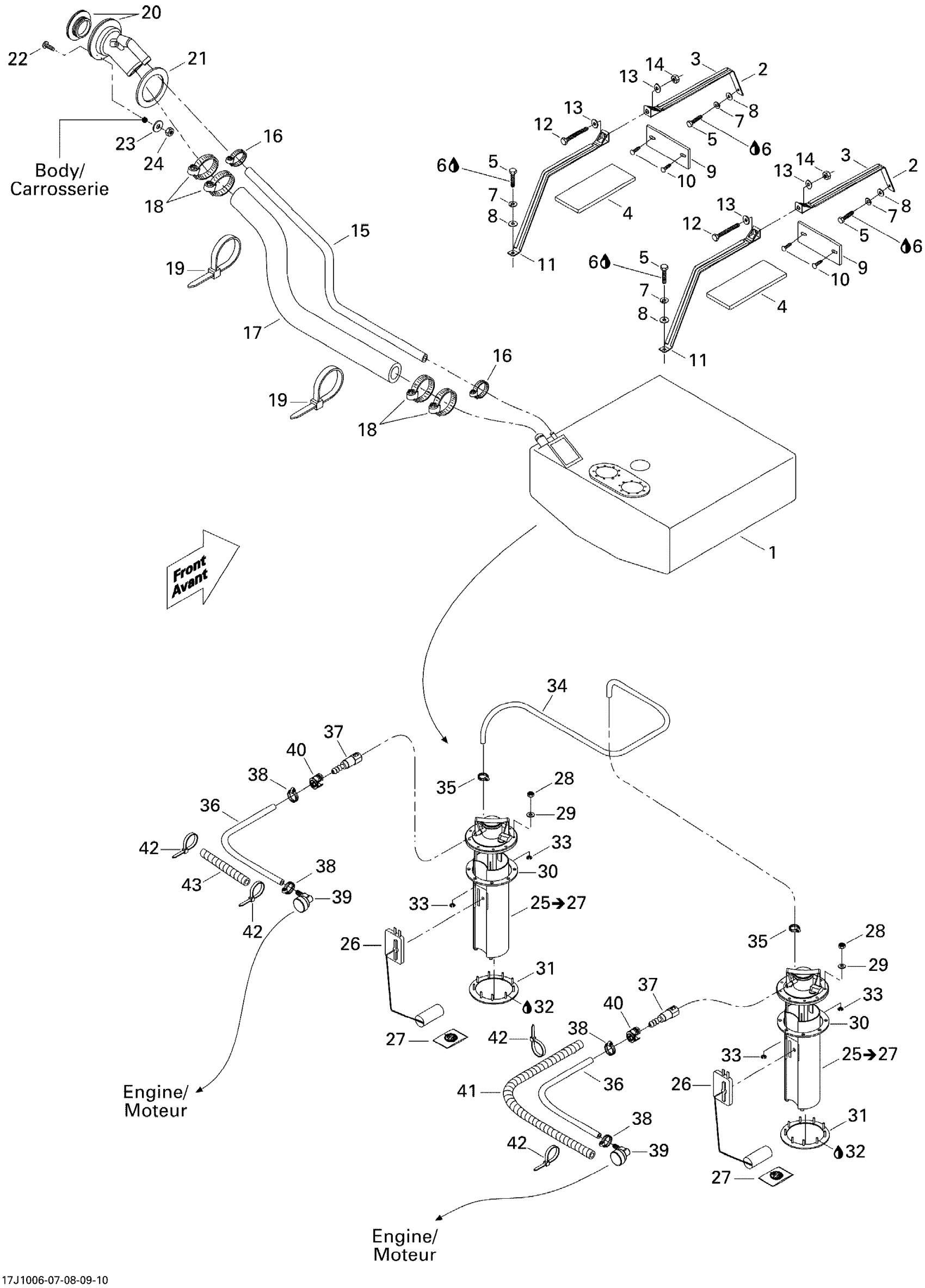

Sea-doo 210 Wake 310, 2x155 1503NA ETC, 2010 Fuel System Diagram

#

Description
Price

1

FUEL TANK 42 GAL - C/U - Call your local BRP dealership This part replaces 204560364.

204560473

Unavailable

2

FUEL TANK STRAP - Call your local BRP dealership

204560235

Unavailable

3

PROTECTOR PAD - Call your local BRP dealership

293830044

Unavailable

4

NEOPRENE PAD - Call your local BRP dealership

204560191

Unavailable

5

Hex. Screw M8 X 30

207183060

$1.58

6

Loctite 271, 10 ml

293800005

$26.99

7

Lock Washer 8 mm, Stainless

234181601

$0.55

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

10

Black, Dart

293730006

$0.99

11

FUEL TANK STRAP - Call your local BRP dealership

204560270

Unavailable

12

HEX. SCREW M8 X 80 - Call your local BRP dealership

207188060

Unavailable

13

Flat Washer 8 mm, Stainless

234082600

$2.43

14

Hex. Elastic Nut M8

232581600

$1.48

15

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

16

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

17

FILLER NECK HOSE - Call your local BRP dealership

204560401

Unavailable

18

NORMA CLAMP - Call your local BRP dealership

293650174

Unavailable

19

Tie-Rap 180 mm

414115200

$0.11

20

FILLER NECK - Call your local BRP dealership

204560182

Unavailable

21

SPACER - Call your local BRP dealership This part replaces 275500801.

204560188

Unavailable

22

Phillips Screw M4 X 35

208643560

Unavailable

23

Flat Washer 4 mm

234040600

$0.55

24

Elastic Stop Nut M4

232541600

$1.15

25

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 23 to 25

204560418

Unavailable

26

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

27

Fuel Filter, Bosch

219700368

$39.99

28

Elastic Stop Nut 5 mm

232551200

$1.47

29

Flat Washer 5 mm, Stainless

234052400

$2.85

30

Gasket

293250088

$14.99

31

C-Ring, 9 Studs

275500679

$77.49

32

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

33

Circlip 5 mm

293370002

$5.50

34

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

35

Tridon Gear Clamp

293650171

$3.09

36

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

37

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

38

NORMA CLAMP - Call your local BRP dealership

204130224

Unavailable

39

Elbow Fitting 90°

293710105

$14.22

40

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

41

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

42

Tie Wrap 142 mm

293750002

$1.25

43

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable
