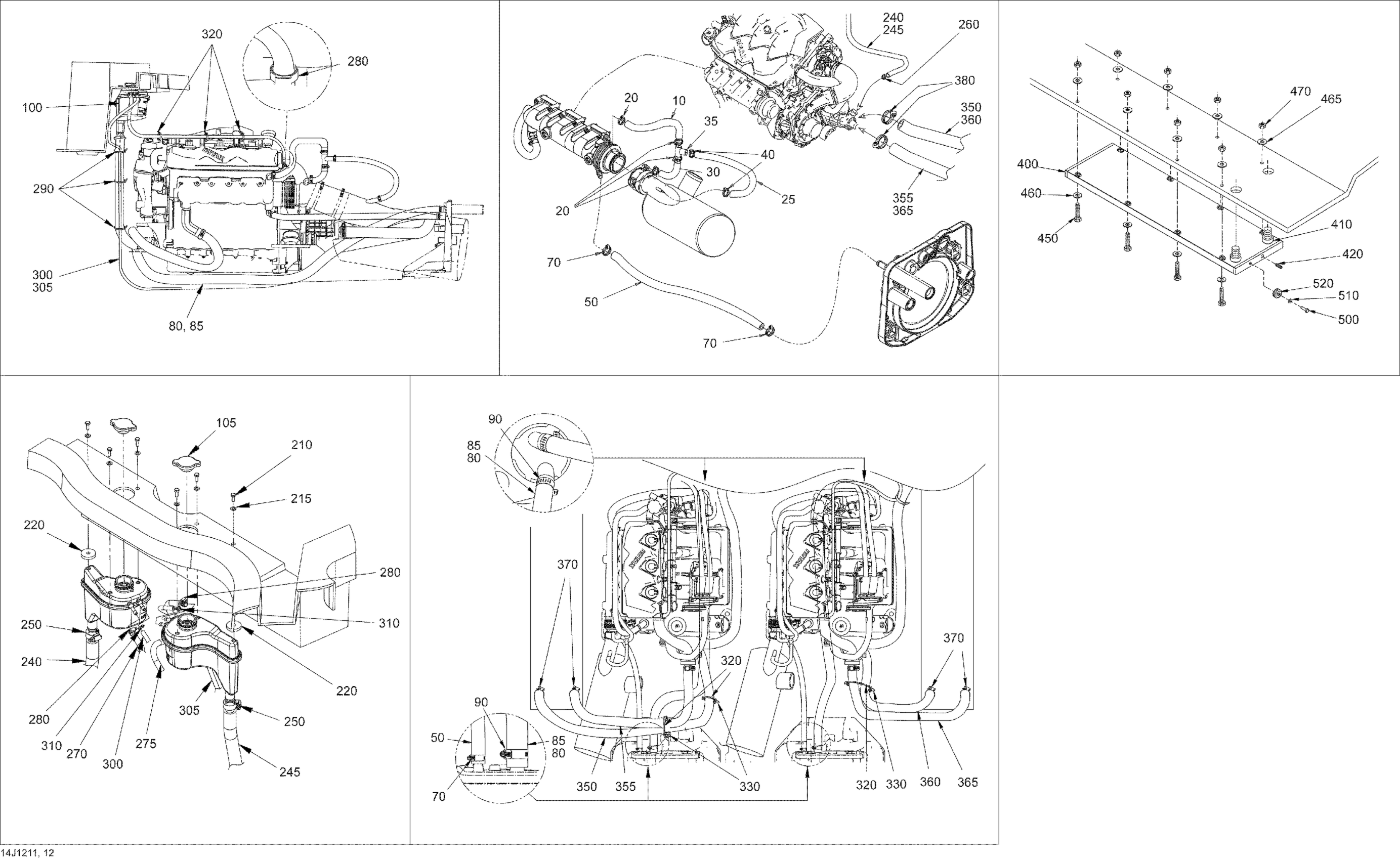

Sea-doo 210 SP 430, 2012 Cooling System Diagram

#

Description
Price

10

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

20

Tridon Gear Clamp

293650172

$3.09

25

Formed Hose | Without Catalyst

276000246

$19.49

30

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

35

T-Fitting

293710116

$17.62

40

Tridon Gear Clamp

293650171

$3.09

50

Was 276000001 Hose 12.5 mm

219704394

$51.99

70

Tridon Gear Clamp

293650172

$3.09

80

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

85

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

90

Tridon Gear Clamp

293650051

$4.19

100

Coolant Tank

276000265

$134.99

105

Pressure Cap | Includes 720 to 720a

276000100

$25.99

210

Socket Head Screw M6 X 25

205062560

$1.69

215

Flat Washer M6, Stainless

234062600

$0.77

220

SPACER - Call your local BRP dealership

705202084

Unavailable

240

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

245

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

250

Tridon Gear Clamp

293650051

$4.19

260

Tridon Gear Clamp

293650019

$5.82

270

Was 275500549 Hose 1/4"

219704357

$194.99

275

Was 275500549 Hose 1/4"

219704357

$194.99

280

Oetiker Gear Clamp

293650025

$3.09

290

Tie Wrap 142 mm

293750002

$1.25

300

Polyurethane Hose 10000Mm Long

219704410

$56.99

305

Polyurethane Hose 10000Mm Long

219704410

$56.99

310

Tie Wrap 94 mm | 4X4

293750001

$1.03

320

Tie Wrap 142 mm

293750002

$1.25

330

Mount Dart

293730040

$1.04

350

RUBBER HOSE, PORT - Call your local BRP dealership

204061380

Unavailable

355

RUBBER HOSE, PORT - Call your local BRP dealership

204061380

Unavailable

360

RUBBER HOSE, PORT - Call your local BRP dealership

204061380

Unavailable

365

RUBBER HOSE, PORT - Call your local BRP dealership

204061380

Unavailable

370

Tridon Gear Clamp

293650045

$5.69

380

Tridon Gear Clamp

293650045

$5.69

400

HEAT EXCHANGER - Call your local BRP dealership

276000299

Unavailable

410

Hose Fitting - Call your local BRP dealership

204300133

Unavailable

420

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

450

SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership

205405060

Unavailable

460

Flat Washer 10 mm, Stainless

234000600

$1.46

465

Flat Washer 10 mm, Stainless

234002600

$2.22

470

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

500

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

510

Stainless Flat Washer M6

234061600

$0.33

520

Anode Zinc

271001813

$18.99
