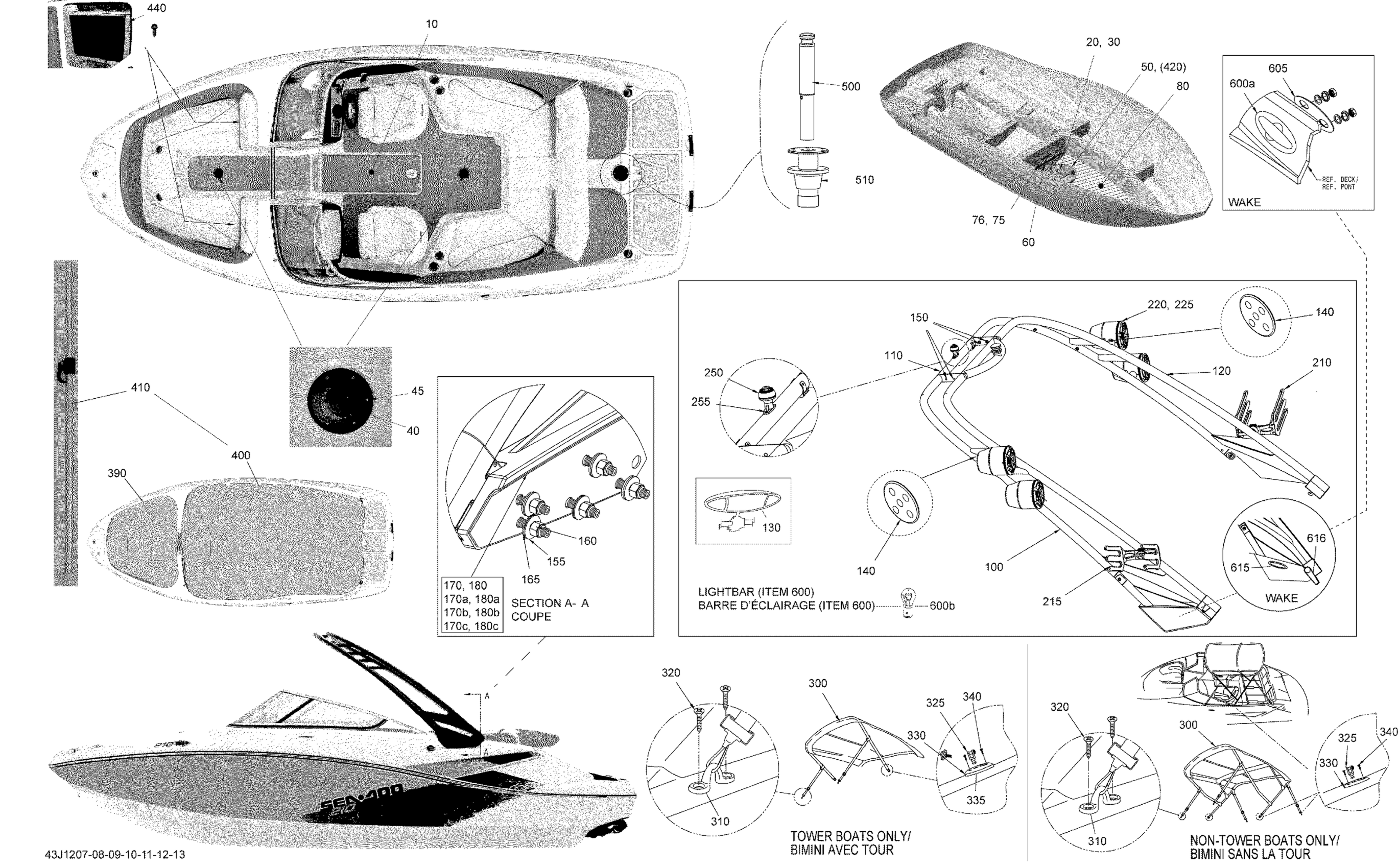

Sea-doo 210 SP 310, 2012 09- Utilities Diagram
#
10
Cockpit Carpet
269800269
Unavailable
20
TABLE MOUNT - Call your local BRP dealership | Challenger S
204071315
Unavailable
30
TAPPING SCREW M5 X 19 - Call your local BRP dealership | Challenger S
209951960
Unavailable
40
TABLE BASE - Call your local BRP dealership
204071209
Unavailable
45
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
50
COCKPIT TABLE - Call your local BRP dealership | Challenger S
204073212
Unavailable
60
TABLE POST, LARGE - Call your local BRP dealership | Challenger S
204070634
Unavailable
75
POLE CLIP - Call your local BRP dealership | Challenger S
204070342
Unavailable
76
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
80
SKI LOCKER CARPET - Call your local BRP dealership | Challenger SE
264000070
Unavailable
100
TOWER SIDE PORT/BLK 210/230 W/NUBS - Call your local BRP dealership This part replaces 269800450.
269800545
Unavailable
110
TOWER HEADER BLACK 210/230 - Call your local BRP dealership This part replaces 269800244.
269800544
Unavailable
120
STARBOARD SIDE TOWER - Call your local BRP dealership
269800451
Unavailable
130
MIRROR - Call your local BRP dealership
269800236
Unavailable
140
Not Available As Spare Parts
XXX
Unavailable
150
SCREW 1/2 X 13 X 1.25 - Call your local BRP dealership
269800197
Unavailable
155
WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership
204100048
Unavailable
160
HEX. NUT 1/2 X 13 - Call your local BRP dealership
269800421
Unavailable
165
TOWER MOUNT FENDER WASHER 1/2 - Call your local BRP dealership
269800344
Unavailable
170
RH TOWER SUPPORT ASS'Y - Call your local BRP dealership
269800253
Unavailable
170a
STUD 1/2 - Call your local BRP dealership | Starboard
269800349
Unavailable
170b
TOWER MOUNT GASKET - 210 - STBD - Call your local BRP dealership
269800352
Unavailable
170c
TOWER MOUNT PIVOT BOLT 1/2 X 13 X 1.5 - Call your local BRP dealership
269800350
Unavailable
180
LH TOWER SUPPORT - Call your local BRP dealership
269800254
Unavailable
180a
STUD 1/2 - Call your local BRP dealership | Starboard
269800349
Unavailable
180b
TOWER MOUNT GASKET - 210 - PORT - Call your local BRP dealership
269800441
Unavailable
180c
TOWER MOUNT PIVOT BOLT 1/2 X 13 X 1.5 - Call your local BRP dealership
269800350
Unavailable
210
Not Available As Spare Parts
XXX
Unavailable
215
Not Available As Spare Parts
XXX
Unavailable
220
Not Available As Spare Parts
XXX
Unavailable
225
COVER - SPEAKER MOUNT - Call your local BRP dealership
269800234
Unavailable
250
Stern Light
204471183
Unavailable
250
Bulb
204470053
Unavailable
255
SCREW 8-18 X 1 - Call your local BRP dealership
269800422
Unavailable
300
Bimini Top, W/Tower | Challenger SE
269800208
$1.00
310
STRAP EYE, STAINLESS - Call your local BRP dealership
269800358
Unavailable
320
SCREW 8-18 X 1 - Call your local BRP dealership
269800422
Unavailable
325
BIMINI POST - Call your local BRP dealership
204950033
Unavailable
330
BIMINI BASE - Call your local BRP dealership
204950034
Unavailable
335
BIMINI SPACER - Call your local BRP dealership
204950031
Unavailable
340
SCREW 8-18 X 1 - Call your local BRP dealership
269800422
Unavailable
390
Bow Cover
269800382
Unavailable
400
COCKPIT COVER - Call your local BRP dealership | With Tower
269800384
Unavailable
405
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
410
SUPPORT POLE COVER - Call your local BRP dealership
269800404
Unavailable
420
OVAL TABLE BAG - Call your local BRP dealership | Challenger S
269800385
Unavailable
440
HELM CONSOLE COVER - Call your local BRP dealership
269800386
Unavailable
500
SKI PYLON - Call your local BRP dealership
269800135
Unavailable
510
SKI PYLON RECEPTACLE - Call your local BRP dealership This part replaces 269800192.
269800432
Unavailable
600
Not Available As Spare Parts
XXX
Unavailable
600a
Not Available As Spare Parts
XXX
Unavailable
605
Not Available As Spare Parts
XXX
Unavailable
615
Not Available As Spare Parts
XXX
Unavailable
