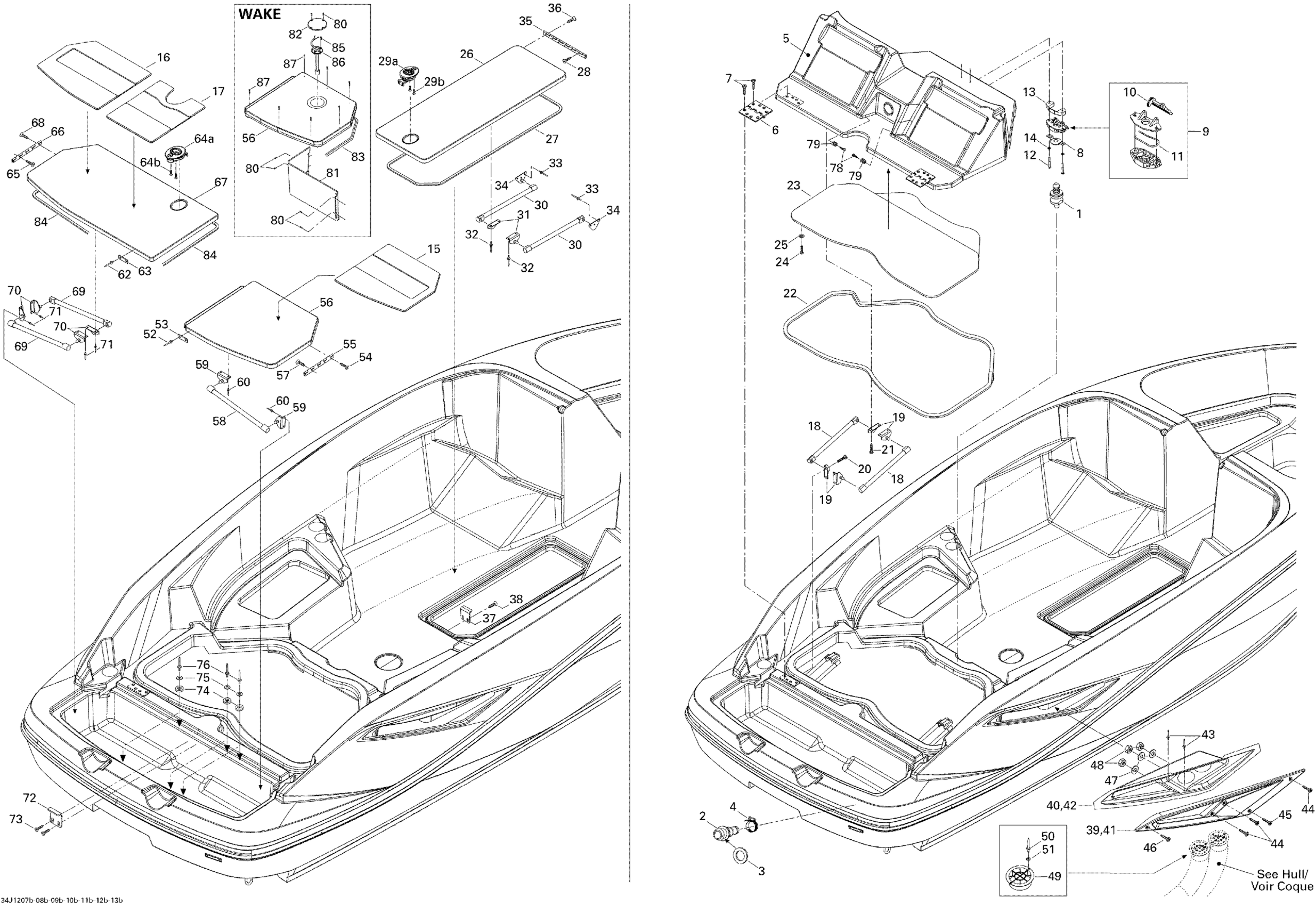

Sea-doo 210 SP 310, 2012 09- Body And Accessories 2 Diagram
#
1
Latch Stud
204130146
$154.99
2
Fitting
293710162
$13.49
3
Gasket
292001486
$6.60
4
Tridon Clamp
293650016
$10.99
5
ENGINE COVER - Call your local BRP dealership
291003708
Unavailable
6
HINGE - Call your local BRP dealership
291003158
Unavailable
7
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership
204100201
Unavailable
8
LATCH PROTECTOR - Call your local BRP dealership
204070952
Unavailable
9
Latch Ass'y
269700109
$24.99
10
Latch Ass'y
269700109
$24.99
11
Latch Spring
269700017
$9.19
12
HEX. SCREW M6 X 45 - Call your local BRP dealership
207064560
Unavailable
13
SHIM - Call your local BRP dealership
269700015
Unavailable
14
Stainless Flat Washer M6
234061600
$0.33
15
ANTI SLIP MAT RH - Call your local BRP dealership
291003721
Unavailable
16
ANTI SLIP MAT LH - Call your local BRP dealership
291003722
Unavailable
17
ANTI SLIP MAT CTRL - Call your local BRP dealership
291003724
Unavailable
18
GAS SHOCK - Call your local BRP dealership
291003009
Unavailable
19
Shock Bracket
204073074
$27.99
20
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152560
Unavailable
21
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152560
Unavailable
22
D-SEAL RUBBER - Call your local BRP dealership
204130083
Unavailable
23
ENGINE HATCH SOUND WALL - Call your local BRP dealership
269700127
Unavailable
24
SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership
204100073
Unavailable
25
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
26
SKI LID - Call your local BRP dealership
291003719
Unavailable
27
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
28
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
29a
LATCH, STAINLESS STEEL - Call your local BRP dealership
291003414
Unavailable
29b
Phillips Screw M5 X 25
208652560
$3.39
30
GAS SHOCK - Call your local BRP dealership
204071874
Unavailable
31
Shock Bracket
204073074
$27.99
32
Pop Rivet 3/16"
293150088
$0.99
33
Pop Rivet 3/16"
293150043
$2.09
34
SHOCK BRACKET - Call your local BRP dealership
204073065
Unavailable
35
HINGE - Call your local BRP dealership
291002975
Unavailable
36
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
37
KEEPER - Call your local BRP dealership
291003012
Unavailable
38
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
39
VENT COVER, STARBOARD - Call your local BRP dealership
237000049
Unavailable
40
VENT BASE, STARBOARD - Call your local BRP dealership
237000050
Unavailable
41
VENT COVER, PORT SIDE - Call your local BRP dealership
237000055
Unavailable
42
VENT BASE, PORT SIDE - Call your local BRP dealership
237000052
Unavailable
43
RIVET - Call your local BRP dealership
293150065
Unavailable
44
Socket Screw M6 X 40
205464060
$2.22
45
SOCKET SCREW M6 X 25 - Call your local BRP dealership
205462560
Unavailable
46
HEX. SOCKET SCREW M6 X 60 - Call your local BRP dealership
205466060
Unavailable
47
Flat Washer M6, Stainless
234062600
$0.77
48
Hex. Elastic Stop Nut M6
232561600
$1.15
49
Vent Grille 4 - Call your local BRP dealership
204050637
Unavailable
50
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
51
Flat Washer 3 mm, Stainless Steel
234031600
$0.55
52
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
53
SWIM PLATFORM LID SHIM - Call your local BRP dealership
262000131
Unavailable
54
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
55
HINGE - Call your local BRP dealership
291002976
Unavailable
56
COVER-STBD SE, SP - Call your local BRP dealership
291003718
Unavailable
57
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
58
CYLINDER GAS SHOCK - Call your local BRP dealership
204071918
Unavailable
59
Shock Bracket
204073074
$27.99
60
Pop Rivet 3/16"
293150088
$0.99
62
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
63
SWIM PLATFORM LID SHIM - Call your local BRP dealership
262000131
Unavailable
64a
LATCH, STAINLESS STEEL - Call your local BRP dealership
291003414
Unavailable
64b
Phillips Screw M5 X 25
208652560
$3.39
65
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
66
HINGE - Call your local BRP dealership
291002976
Unavailable
67
COVER-PORT SE,SP - Call your local BRP dealership
291003699
Unavailable
68
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
69
GAS SHOCK - Call your local BRP dealership
204071874
Unavailable
70
Shock Bracket
204073074
$27.99
71
Pop Rivet 3/16"
293150088
$0.99
72
KEEPER - Call your local BRP dealership
291003012
Unavailable
73
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
74
BUMPER PAD - Call your local BRP dealership
204073815
Unavailable
75
Flat Washer 4 mm, Stainless
234041600
$1.15
76
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
78
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
79
Attachment Knob
204073221
$8.19
80
Not Available As Spare Parts
XXX
Unavailable
81
Not Available As Spare Parts
XXX
Unavailable
82
Not Available As Spare Parts
XXX
Unavailable
83
Not Available As Spare Parts
XXX
Unavailable
84
Not Available As Spare Parts
XXX
Unavailable
85
Not Available As Spare Parts
XXX
Unavailable
86
Not Available As Spare Parts
XXX
Unavailable
87
Not Available As Spare Parts
XXX
Unavailable
