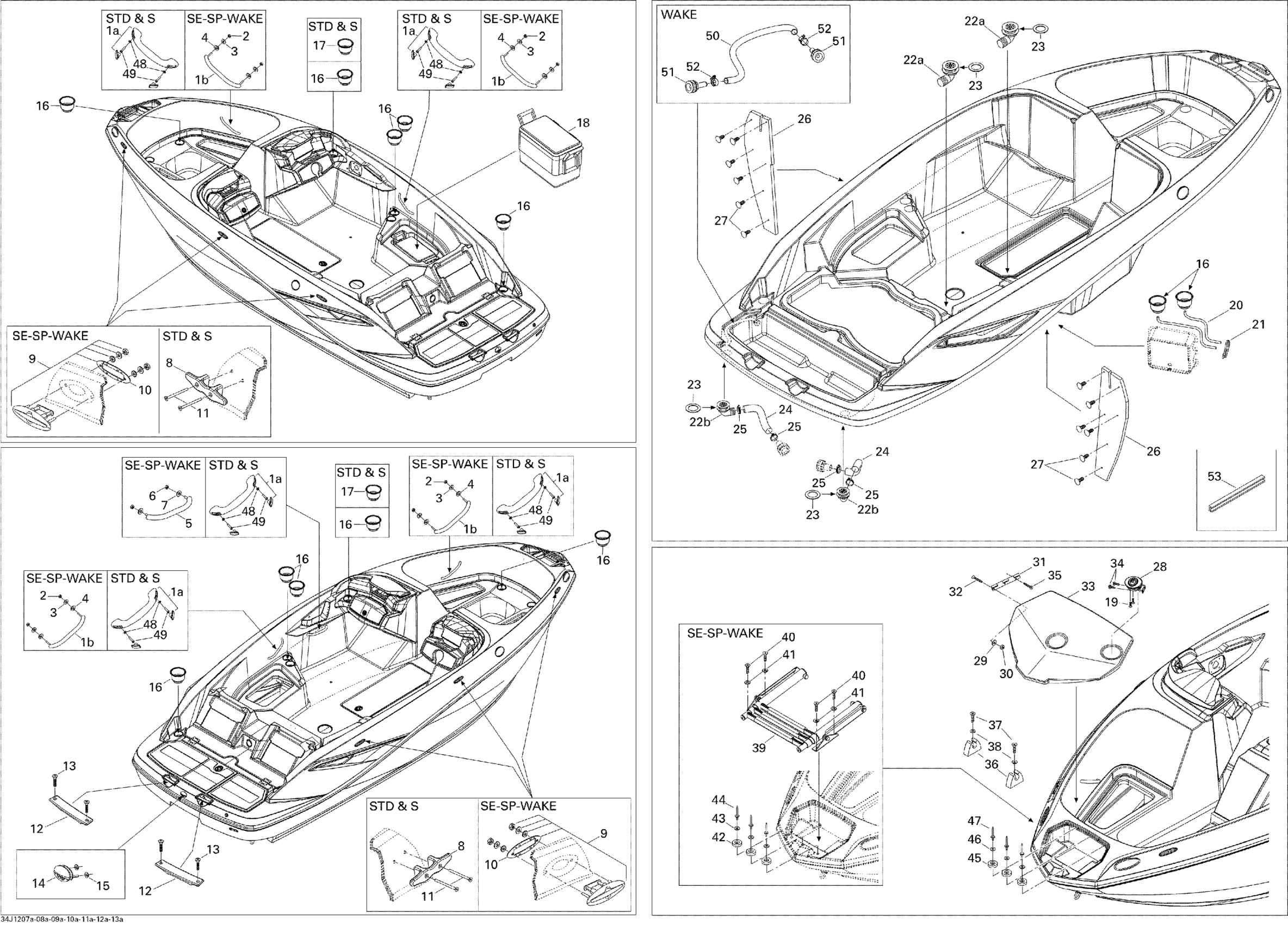

Sea-doo 210 SP 310, 2012 09- Body And Accessories 1 Diagram
#
1a
Not Available As Spare Parts
XXX
Unavailable
1b
GRAB HANDLE 12'' - Call your local BRP dealership
262000103
Unavailable
2
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
3
Flat Washer 8 mm, Stainless
234082600
$2.43
4
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
5
GRAB HANDLE ASS'Y - Call your local BRP dealership
204073791
Unavailable
6
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
7
Flat Washer 10 mm, Stainless
234002600
$2.22
8
Not Available As Spare Parts
XXX
Unavailable
9
PULL-UP CLEAT - Call your local BRP dealership | SE & SP
262000153
Unavailable
9
PULL-UP CLEAT - Call your local BRP dealership | SE & SP
262000153
Unavailable
10
CLEAT BACKING PLATE - Call your local BRP dealership | Models Without Tower
204073516
Unavailable
10
CLEAT BACKING PLATE - Call your local BRP dealership | Models Without Tower
204073516
Unavailable
11
Not Available As Spare Parts
XXX
Unavailable
12
GRIP HANDLE, BLACK - Call your local BRP dealership
204070194
Unavailable
13
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
14
SKI TOW - Call your local BRP dealership
291002905
Unavailable
15
Lock Washer 8 mm, Stainless
234181601
$0.55
16
CUP HOLDER - Call your local BRP dealership | SE & SP
204073519
Unavailable
17
Not Available As Spare Parts
XXX
Unavailable
18
COOLER, 23 LITERS (25 QUARTS) - Call your local BRP dealership
204073816
Unavailable
19
Phillips Screw M5 X 25
208652560
$3.39
20
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
21
Tie Wrap 142 mm
293750002
$1.25
22a
DRAIN FITTING - Call your local BRP dealership
204073301
Unavailable
22b
DRAIN FITTING - Call your local BRP dealership
204073301
Unavailable
23
GASKET - Call your local BRP dealership
292800106
Unavailable
24
HOSE 1-1/2, REINFORCED - Call your local BRP dealership
262000072
Unavailable
25
NORMA CLAMP - Call your local BRP dealership
275500823
Unavailable
26
FOAM/ S-WALL SEAL - Call your local BRP dealership
291003045
Unavailable
27
Black Dart
293730014
$0.99
28
Latch, Stainless Steel
291003415
Unavailable
29
Flat Washer 4 mm
234040600
$0.55
30
Elastic Stop Nut M4
232541600
$1.15
31
HINGE - Call your local BRP dealership
291002974
Unavailable
32
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership
208442060
Unavailable
33
ANCHOR COVER - Call your local BRP dealership This part replaces 291003716.
291003176
Unavailable
34
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
35
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
36
Pole Support
291000642
Unavailable
37
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
38
Flat Washer 4 mm, Stainless
234041600
$1.15
39
RETRACTABLE LADDER - Call your local BRP dealership
262000150
Unavailable
40
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership
208663060
Unavailable
41
Lock Washer Helical M6
234161601
$1.15
42
BUMPER PAD - Call your local BRP dealership
204073815
Unavailable
43
Flat Washer 4 mm, Stainless
234041600
$1.15
44
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
45
BUMPER PAD - Call your local BRP dealership
204073815
Unavailable
46
Flat Washer 4 mm, Stainless
234041600
$1.15
47
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
48
Not Available As Spare Parts
XXX
Unavailable
49
Not Available As Spare Parts
XXX
Unavailable
50
Not Available As Spare Parts
XXX
Unavailable
51
Not Available As Spare Parts
XXX
Unavailable
52
Not Available As Spare Parts
XXX
Unavailable
53
TRIM, WHITE - Call your local BRP dealership
262000086
Unavailable
