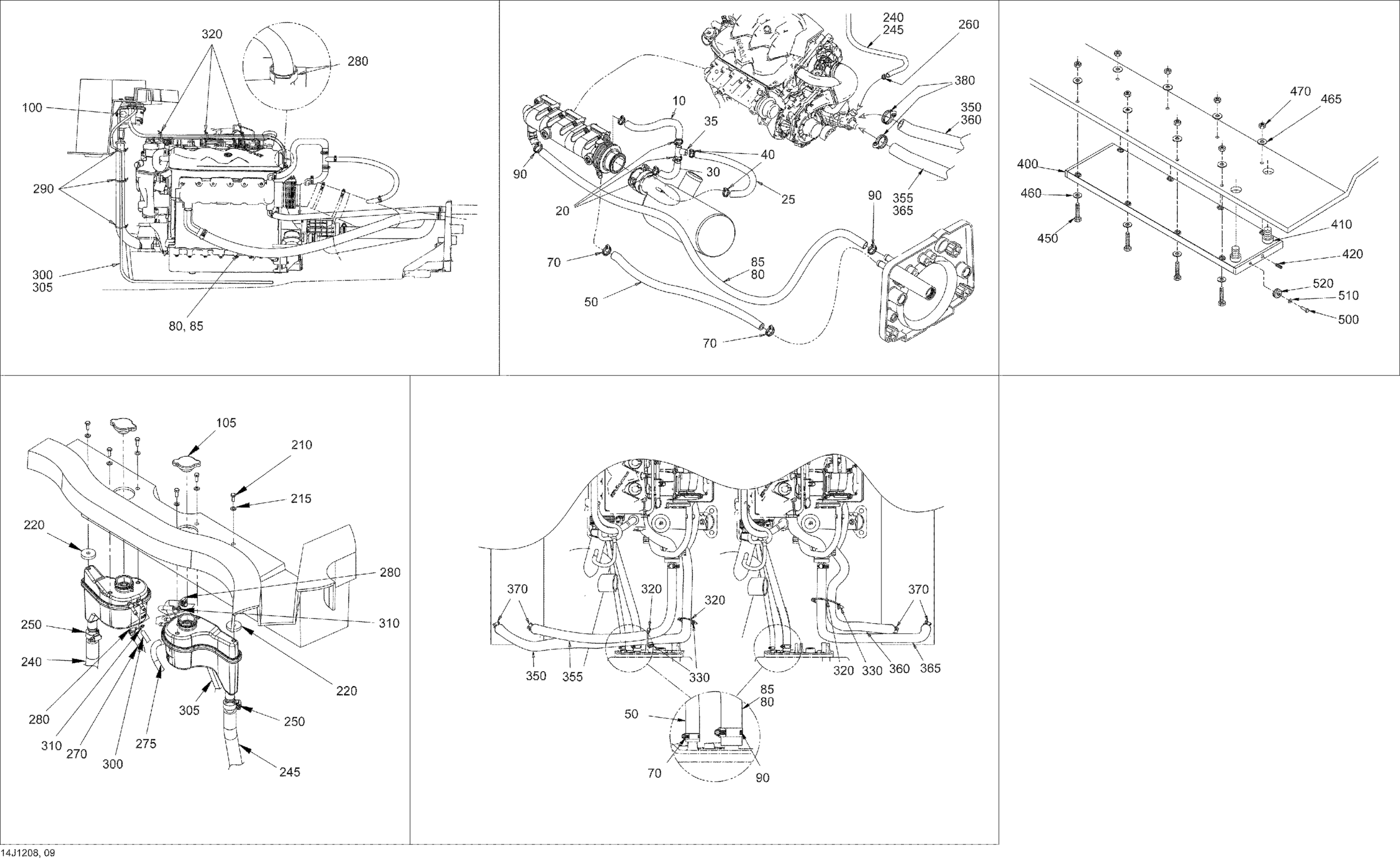

Sea-doo 210 SP 310, 2012 01- Cooling System Diagram
#
10
Hose, Bypass Upper | Without Catalyst This part replaces 276000244.
276000484
$19.49
20
Tridon Gear Clamp
293650172
$3.09
25
Formed Hose | Without Catalyst
276000246
$19.49
30
Hose, Bypass Lower | With Catalyst This part replaces 276000137.
276000455
$19.49
35
T-Fitting
293710116
$17.62
40
Tridon Gear Clamp
293650171
$3.09
50
Was 276000001 Hose 12.5 mm
219704394
$51.99
70
Tridon Gear Clamp
293650172
$3.09
80
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
85
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
90
Tridon Gear Clamp
293650051
$4.19
100
Coolant Tank
276000265
$134.99
105
Pressure Cap | Includes 720 to 720a
276000100
$25.99
210
Socket Head Screw M6 X 25
205062560
$1.69
215
Flat Washer M6, Stainless
234062600
$0.77
220
SPACER - Call your local BRP dealership
705202084
Unavailable
240
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
245
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
250
Tridon Gear Clamp
293650051
$4.19
260
Tridon Gear Clamp
293650019
$5.82
270
Was 275500549 Hose 1/4"
219704357
$194.99
275
Was 275500549 Hose 1/4"
219704357
$194.99
280
Oetiker Gear Clamp
293650025
$3.09
290
Tie Wrap 142 mm
293750002
$1.25
300
Polyurethane Hose 10000Mm Long
219704410
$56.99
305
Polyurethane Hose 10000Mm Long
219704410
$56.99
310
Tie Wrap 94 mm | 4X4
293750001
$1.03
320
Tie Wrap 142 mm
293750002
$1.25
330
Mount Dart
293730040
$1.04
350
RUBBER HOSE, PORT - Call your local BRP dealership
204061380
Unavailable
355
RUBBER HOSE, PORT - Call your local BRP dealership
204061380
Unavailable
360
RUBBER HOSE, PORT - Call your local BRP dealership
204061380
Unavailable
365
RUBBER HOSE, PORT - Call your local BRP dealership
204061380
Unavailable
370
Tridon Gear Clamp
293650045
$5.69
380
Tridon Gear Clamp
293650045
$5.69
400
HEAT EXCHANGER - Call your local BRP dealership
276000299
Unavailable
410
Hose Fitting - Call your local BRP dealership
204300133
Unavailable
420
Pipe Plug Socket Head 1/8-27 Npt
211500001
$9.59
450
SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership
205405060
Unavailable
460
Flat Washer 10 mm, Stainless
234000600
$1.46
465
Flat Washer 10 mm, Stainless
234002600
$2.22
470
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
500
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
510
Stainless Flat Washer M6
234061600
$0.33
520
Anode Zinc
271001813
$18.99
