02- Supercharger

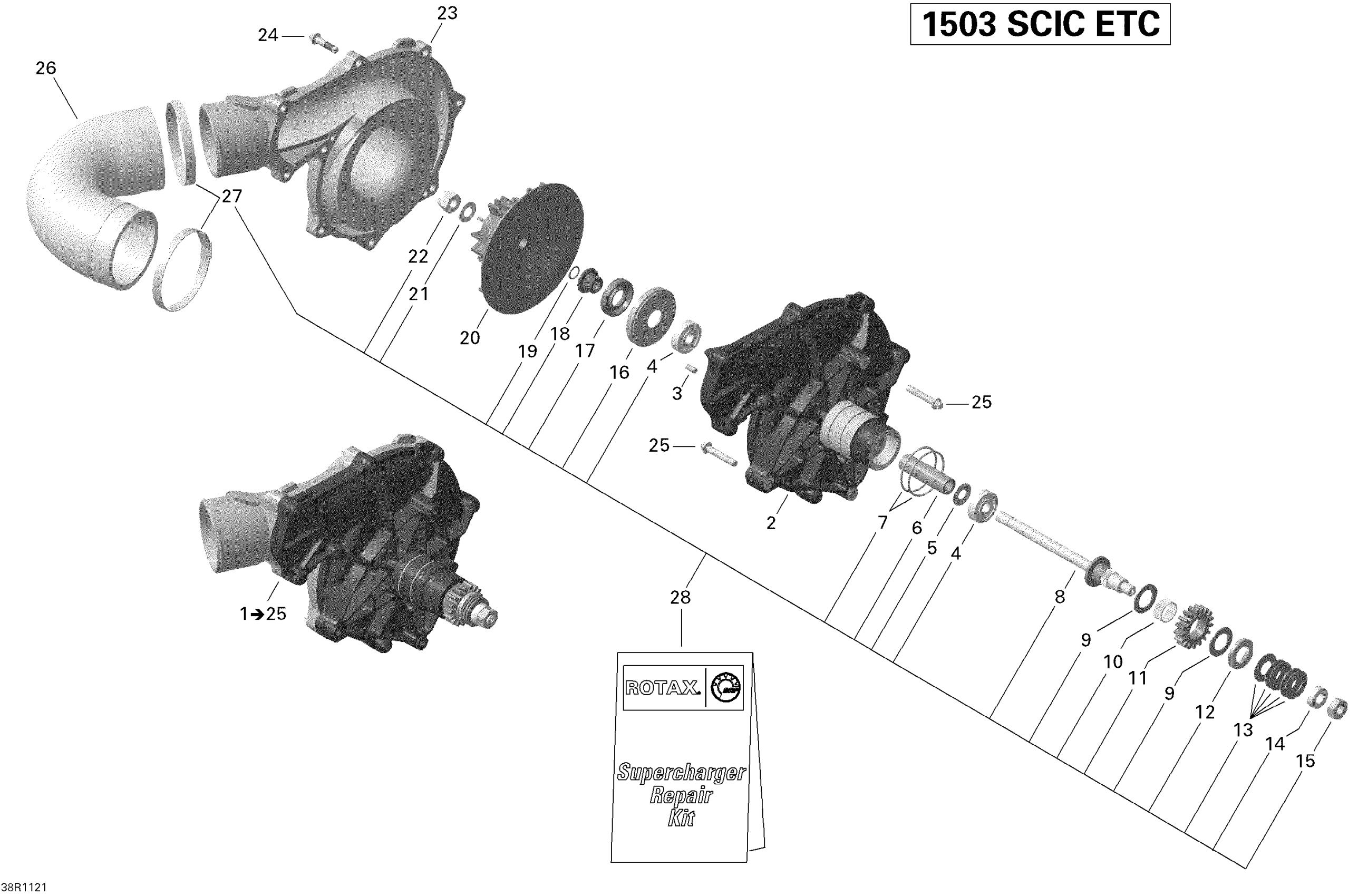

Sea-doo 210 Challenger SE 430, 2011 02- Supercharger Diagram
#
Description
Price
1
Supercharger Ass'Y | Includes 1 to 25 This part replaces 420881996.
420890489
$1.00
2
Compressor Base Plate
420867180
$264.99
3
Drive Pin 5 X 10
420929650
$1.68
4
Bearing Ball This part replaces 420832710.
420832713
$39.99
5
THRUST WASHER - Call your local BRP dealership
420227685
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
O-Ring | Included in gasket kit
420650270
$8.01
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Needle Pin This part replaces 420632430.
420632435
$35.99
11
Not Available As Spare Part - Friction Washer
Unavailable
12
LOCK WASHER - Call your local BRP dealership
420926377
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
HEX. NUT - Call your local BRP dealership
420942950
Unavailable
16
THRUST WASHER - Call your local BRP dealership
420926393
Unavailable
17
Oil Seal
420950940
$30.49
18
STEP COLLAR - Call your local BRP dealership
420947012
Unavailable
19
O-Ring
420950950
$1.01
20
Compressor Impeller
420867191
$759.99
21
SHIM - Call your local BRP dealership
420627418
Unavailable
22
CAP NUT - Call your local BRP dealership
420842833
Unavailable
23
Compressor Housing
420867154
$114.99
24
Torx Flange Screw M6 X 25
420641238
$3.27
25
Torx Flange Screw M6 X 35
420641258
$3.38
26
Formed Hose
420660155
$44.99
27
Gear Clamp
420851703
$22.99
28
Supercharger Kit This part replaces 420881101.
420881102
$499.99
