- 210 Challenger SE 310, 2011
07- Steering

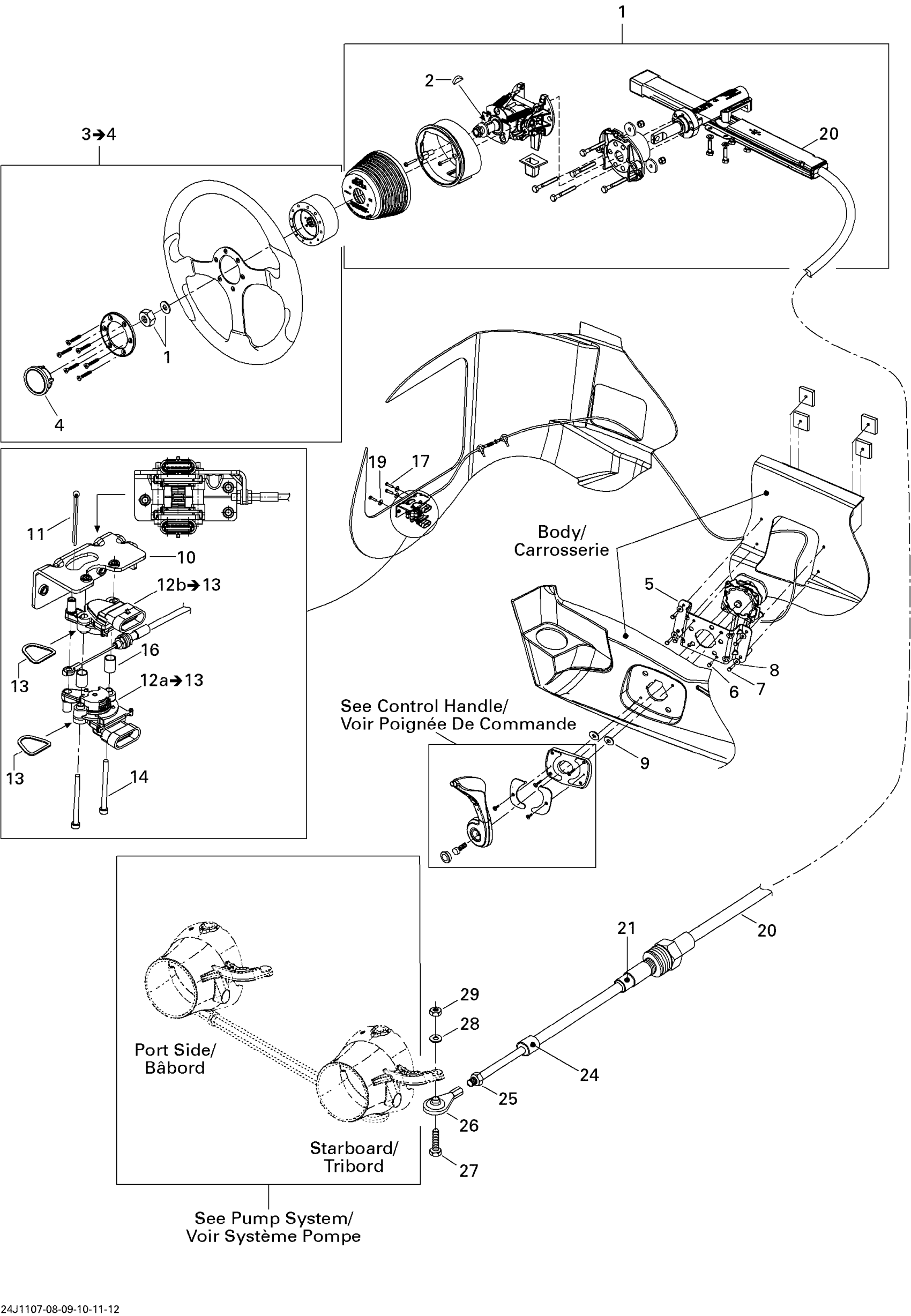

Sea-doo 210 Challenger SE 310, 2011 07- Steering Diagram
#
Description
Price
1
HELM TILT ASS'Y - Call your local BRP dealership | Twin Engine Models
277001690
Unavailable
2
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
3
Steering Wheel Ass'y | 210 CHALL
204390543
Unavailable
4
CENTER CAP - Call your local BRP dealership | SE
204390549
Unavailable
5
CONTROL BRACKET - Call your local BRP dealership
277001705
Unavailable
6
TAPPING SCREW 1/4-20 X 1/2 - Call your local BRP dealership
204100137
Unavailable
7
Hex. Screw M6 X 30
207163060
$1.48
8
Flat Washer M6, Stainless
234062600
$0.77
9
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
10
SENSOR BRACKET - Call your local BRP dealership
277001694
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12a
RH THROTTLE SENSOR - Call your local BRP dealership | Twin Engine Models
277001726
Unavailable
12b
SENSOR_POSITION THROTTLE - Call your local BRP dealership
277001727
Unavailable
13
O-Ring
270000544
$4.65
14
SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership
205455060
Unavailable
16
Spacer
278000644
Unavailable
17
Hex. Screw M5 X 20
207152060
$1.47
19
Flat Washer 5 mm, Stainless
234052600
$0.77
20
STEERING CABLE - Call your local BRP dealership | Twin Engine Models
277001867
$489.99
21
SEAL SWIVEL - Call your local BRP dealership
277000440
Unavailable
24
Terminal Wiper
277000441
$11.99
25
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
26
BALL JOINT - Call your local BRP dealership
204120074
Unavailable
27
Hex. Screw M6 X 35
207063560
$2.22
28
Stainless Flat Washer M6
234061600
$0.33
29
Hex. Elastic Stop Nut M6
232561600
$1.15
