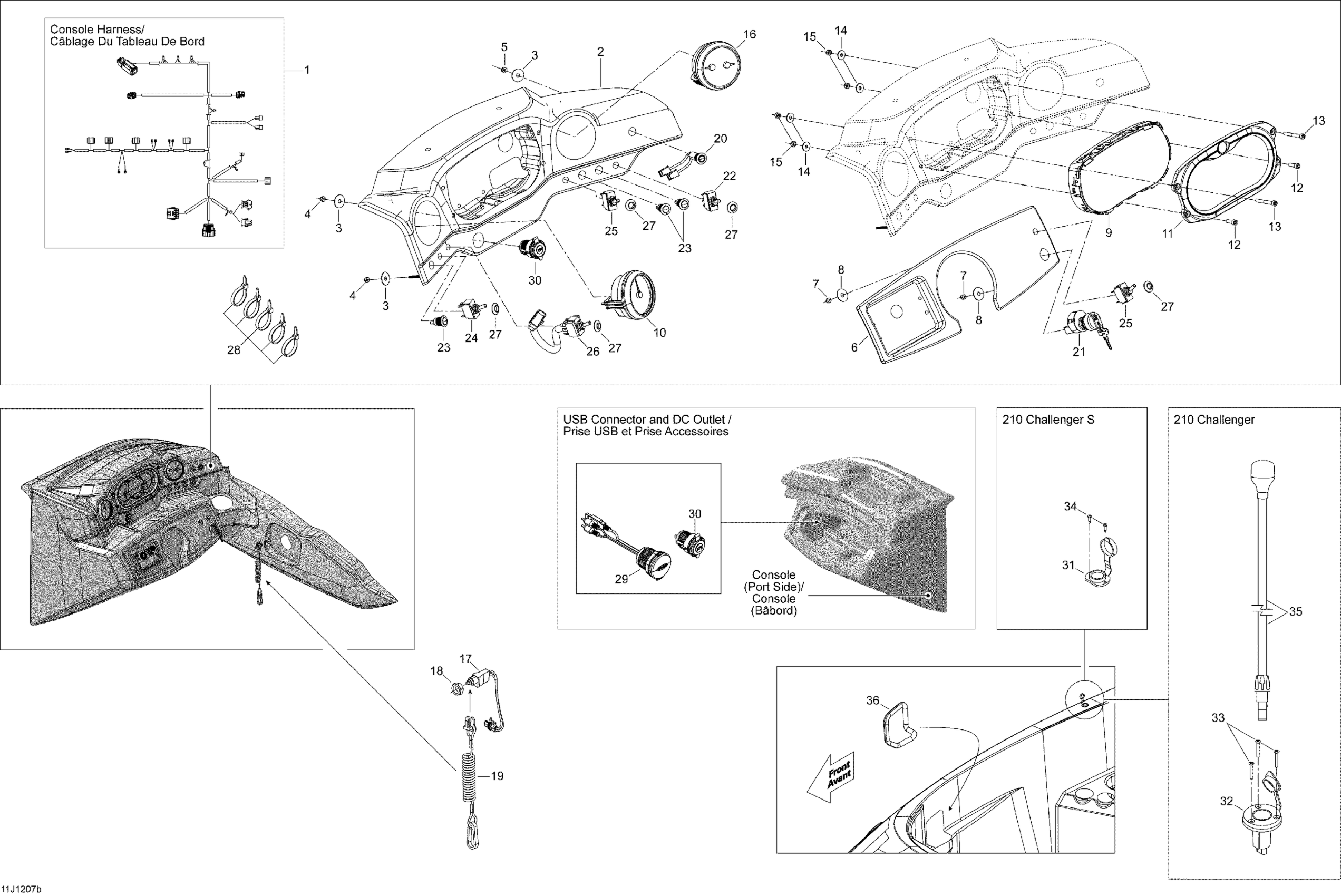

Sea-doo 210 Challenger & Challenger S 260, 2012 Electrical Accessories 2 Diagram

#

Description
Price

1

CONSOLE HARNESS - Call your local BRP dealership

278002708

Unavailable

2

210 FASCIA ASSY SINGLE ENG - Call your local BRP dealership | Starboard

278002710

Unavailable

3

FLAT WASHER 9/32? - Call your local BRP dealership

204100089

Unavailable

4

HEXAGONAL NUT 8-32 - Call your local BRP dealership

204100262

Unavailable

5

HEXAGONAL NUT 10-24 - Call your local BRP dealership

204100261

Unavailable

6

STEREO PANEL - Call your local BRP dealership | Starboard

278002742

Unavailable

7

FLAT WASHER 9/32? - Call your local BRP dealership

204100089

Unavailable

8

HEXAGONAL NUT 8-32 - Call your local BRP dealership

204100262

Unavailable

9

Indicator Gauge

204471501

Unavailable

10

VOLT/TEMPERATURE GAUGE - Call your local BRP dealership

278002711

Unavailable

11

GAUGE BEZEL - Call your local BRP dealership This part replaces 278002664.

278002433

Unavailable

12

Socket Head Screw M6 X 20

205062060

$2.32

13

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065060

Unavailable

14

Flat Washer M6, Stainless

234062600

$0.77

15

Hex. Elastic Stop Nut M6

232561600

$1.15

16

FUEL GAUGE - Call your local BRP dealership

278002712

Unavailable

17

LANYARD SWITCH - Call your local BRP dealership

278002421

Unavailable

18

FLANGED NUT - Call your local BRP dealership

278002472

Unavailable

19

SAFETY LANYARD - Call your local BRP dealership

278002450

Unavailable

20

Start Switch

278002694

Unavailable

21

Ignition Switch With Key

710002323

$86.99

22

SWITCH - Call your local BRP dealership

278002695

Unavailable

23

Switch

278002446

Unavailable

24

SWITCH - Call your local BRP dealership

278002696

Unavailable

25

SWITCH - Call your local BRP dealership

278002776

Unavailable

26

Switch

278002698

Unavailable

27

NUT SWITCH - Call your local BRP dealership

278002416

Unavailable

28

TIE-RAP 203 MM - Call your local BRP dealership

293750059

Unavailable

29

USB CONNECTOR - Call your local BRP dealership

278002417

Unavailable

30

DC Outlet

710001248

$37.99

31

CONNECTOR - Call your local BRP dealership | 210 Challenger S

204130221

Unavailable

32

REAR LAMP BASE ASSY - Call your local BRP dealership | 210 Challenger This part replaces 204470643.

204470642

Unavailable

33

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

34

TAPP SCREW PHILLIP HEAD M2.9 X 13 - Call your local BRP dealership | 210 Challenger S

250200108

Unavailable

35

REAR LIGHT POLE - Call your local BRP dealership | 210 Challenger

269800190

Unavailable

36

SLIT CONDUIT - Call your local BRP dealership

204471077

Unavailable
