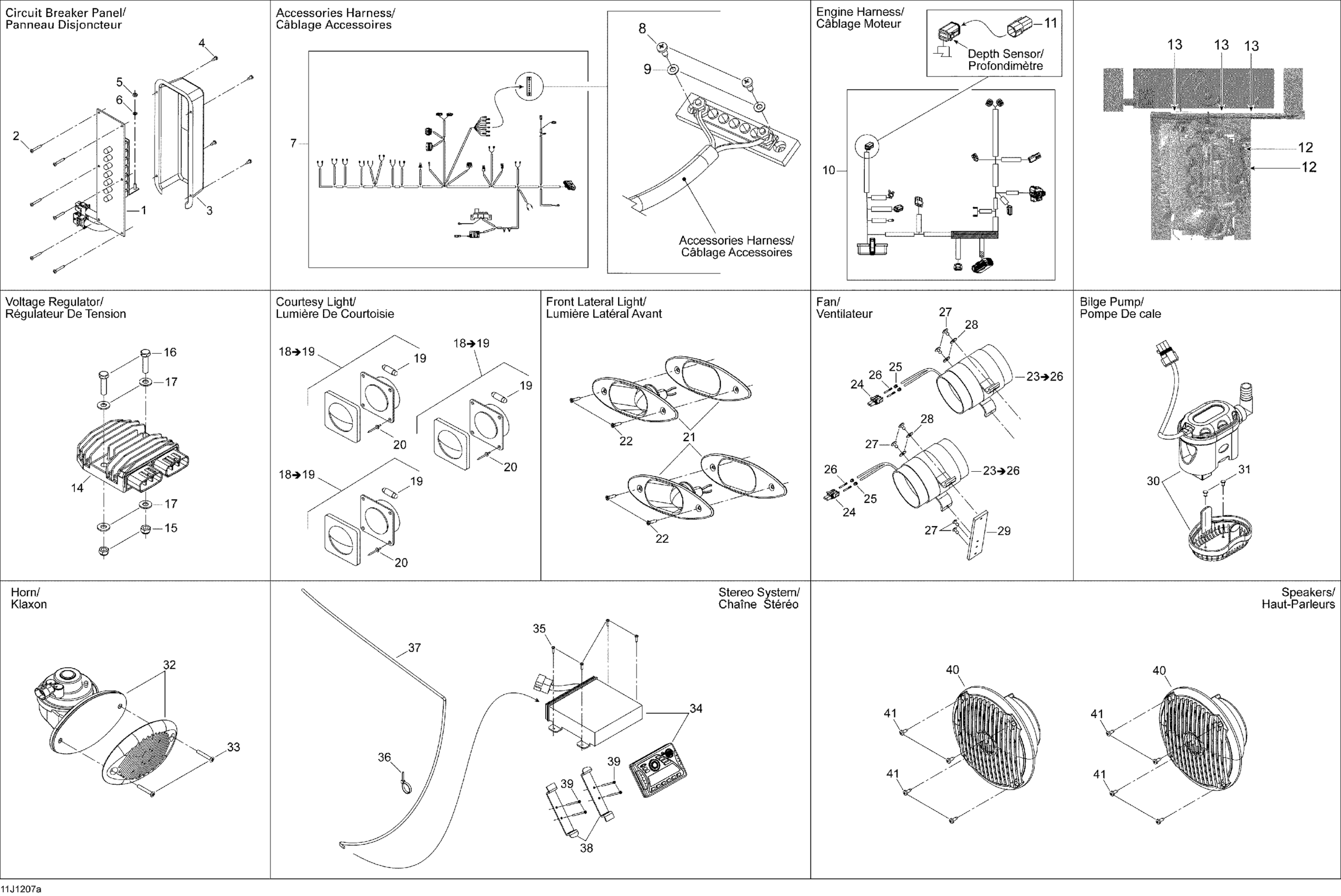

Sea-doo 210 Challenger & Challenger S 260, 2012 Electrical Accessories 1 Diagram

#

Description
Price

1

CIRCUIT BREAKER PANEL - Call your local BRP dealership

278002685

Unavailable

2

TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

250000090

Unavailable

3

Circuit Breaker Panel Cover

204471375

Unavailable

4

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

5

Hex. Nut

212100005

$1.35

6

Helical Lock Washer M5

234151601

$1.15

7

ACCESSORIES HARNESS - Call your local BRP dealership

278002707

Unavailable

8

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable

9

Flat Washer 4 mm, Stainless

234041600

$1.15

10

Engine Harness | Without Catalyst

278002662

Unavailable

11

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

12

Tie-Rap 180 mm

414115200

$0.11

13

Tie Wrap 142 mm

293750002

$1.25

14

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

15

Hex. Elastic Stop Nut M6

232561600

$1.15

16

Hex. Screw M6 X 25

207162560

$1.47

17

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

18

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

19

BULB - Call your local BRP dealership

204470081

Unavailable

20

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

21

LATERAL LIGHT KIT - Call your local BRP dealership

204470908

Unavailable

22

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

23

Fan Ass'y | Includes 44 to 47

204470108

$144.99

24

Male Connector, 2 Circuits

278000220

$15.49

25

Female Terminal

278000223

$3.19

26

Wire Seal

278000218

$4.39

27

Pop Rivet 3/16"

293150008

$0.50

28

Flat Washer 5 mm, Stainless

234052600

$0.77

29

BRACKET - Call your local BRP dealership

204471389

Unavailable

30

Bilge Pump

204471432

Unavailable

31

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

32

HORN - Call your local BRP dealership

204470801

Unavailable

33

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

34

STEREO - Call your local BRP dealership

278002689

Unavailable

35

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable

36

Tie-Rap 180 mm

414115200

$0.11

37

STEREO ANTENNA - Call your local BRP dealership

204471215

Unavailable

38

BRACKET-STEREO - Call your local BRP dealership

277001743

Unavailable

39

PHILLIPS SCREW 6-32 X 2.5 - Call your local BRP dealership

204100254

Unavailable

40

SPEAKER, SILVER - Call your local BRP dealership | 180 Challenger SE

204471344

Unavailable

41

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable
