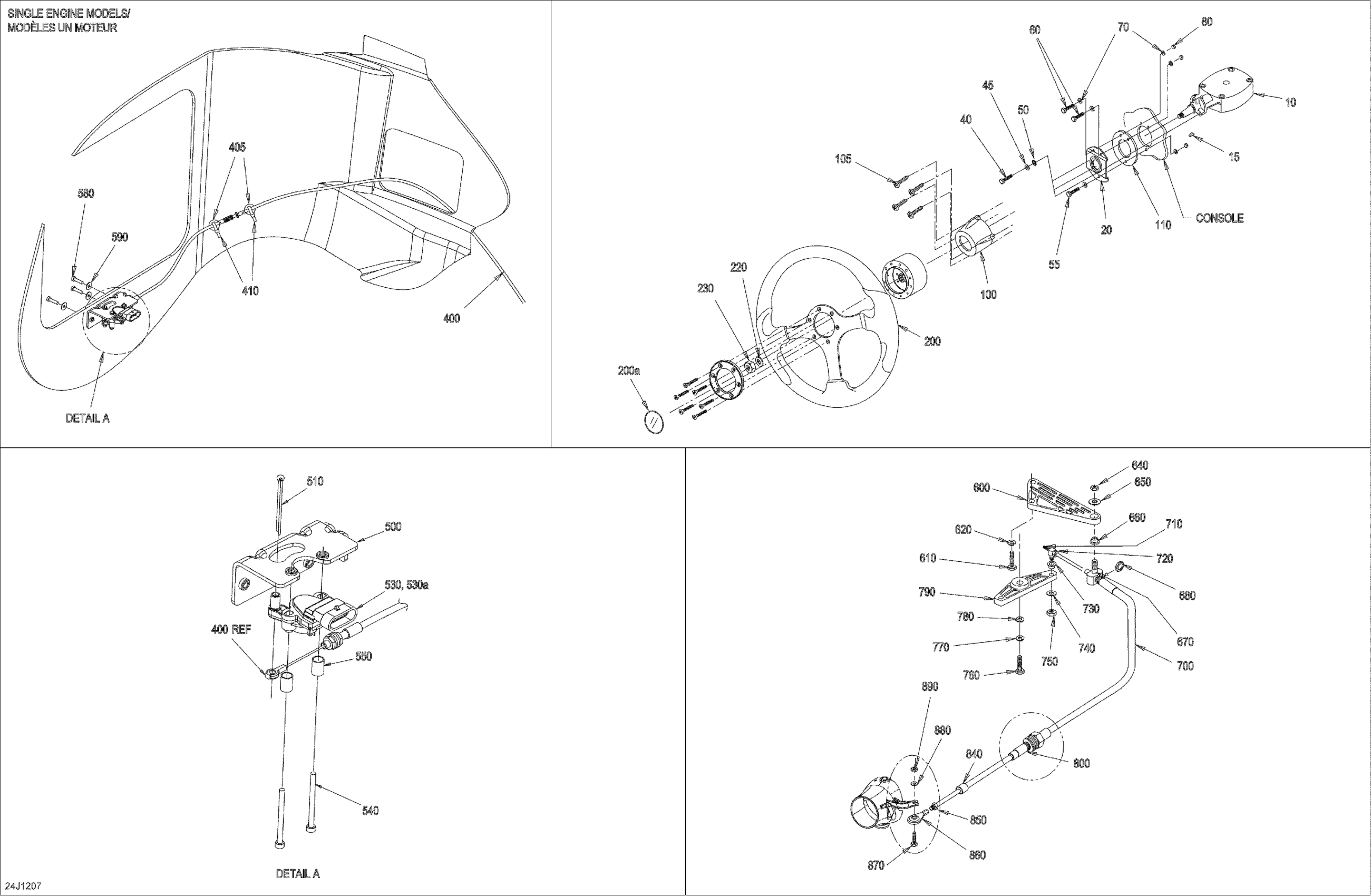

Sea-doo 210 Challenger & Challenger S 260, 2012 Steering Diagram

#

Description
Price

10

HELM ASS'Y - Call your local BRP dealership | Single HO Engine Models

204390361

Unavailable

15

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

20

Support

277000383

Unavailable

40

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

45

Flat Washer M6, Stainless

234062600

$0.77

50

Serrated Lock Washer 8 mm

234481608

$1.15

55

Hex. Screw M6 X 50

207065060

$2.22

60

Hex. Screw M6 X 40

207164060

$3.38

70

Stainless Flat Washer M6

234061600

$0.33

80

Hex. Elastic Stop Nut M6

232561600

$1.15

100

HELM FASCIA - Call your local BRP dealership | Single HO Engine Models

204390577

Unavailable

105

Phillips Tapping Screw

204100058

$0.66

110

SHIM STEERING - Call your local BRP dealership | Single HO Engine Models

277001868

Unavailable

200

Steering Wheel Ass'y | 210 CHALL

204390543

Unavailable

200a

CENTER CAP - Call your local BRP dealership | SE

204390549

Unavailable

220

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

230

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

405

Mount Dart

293730040

$1.04

400

THROTTLE CABLE - Call your local BRP dealership

277001693

Unavailable

410

Tie Wrap 142 mm

293750002

$1.25

500

SENSOR BRACKET - Call your local BRP dealership

277001694

Unavailable

510

Not Available As Spare Part - Friction Washer

Unavailable

520

Not Available As Spare Parts

XXX

Unavailable

520a

Not Available As Spare Parts

XXX

Unavailable

530

SENSOR_POSITION THROTTLE - Call your local BRP dealership

277001727

Unavailable

530a

O-Ring

270000544

$4.65

540

SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership

205455060

Unavailable

550

SPACER - Call your local BRP dealership

204390638

Unavailable

580

Hex. Screw M5 X 20

207152060

$1.47

590

Flat Washer 5 mm, Stainless

234052600

$0.77

600

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

610

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

620

Lock Washer 1/4”

211200025

$1.29

640

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

650

Flat Washer 10 mm, Stainless

234001600

$1.15

660

Flanged Bushing

293350014

$12.99

670

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

680

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

Unavailable

700

STEERING CABLE - Call your local BRP dealership | Single HO Engine Models

204390465

Unavailable

710

PIVOT - Call your local BRP dealership

277000456

Unavailable

720

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

730

BUSHING - Call your local BRP dealership

204130095

Unavailable

740

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

750

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

760

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

770

Lock Washer 1/4”

211200025

$1.29

780

Flat Washer M6, Stainless

234062600

$0.77

790

ARM - Call your local BRP dealership

204390040

Unavailable

800

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

840

Terminal Wiper

277000441

$11.99

850

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

860

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

870

Hex. Screw M6 X 35

207063560

$2.22

880

Stainless Flat Washer M6

234061600

$0.33

890

Hex. Elastic Stop Nut M6

232561600

$1.15
