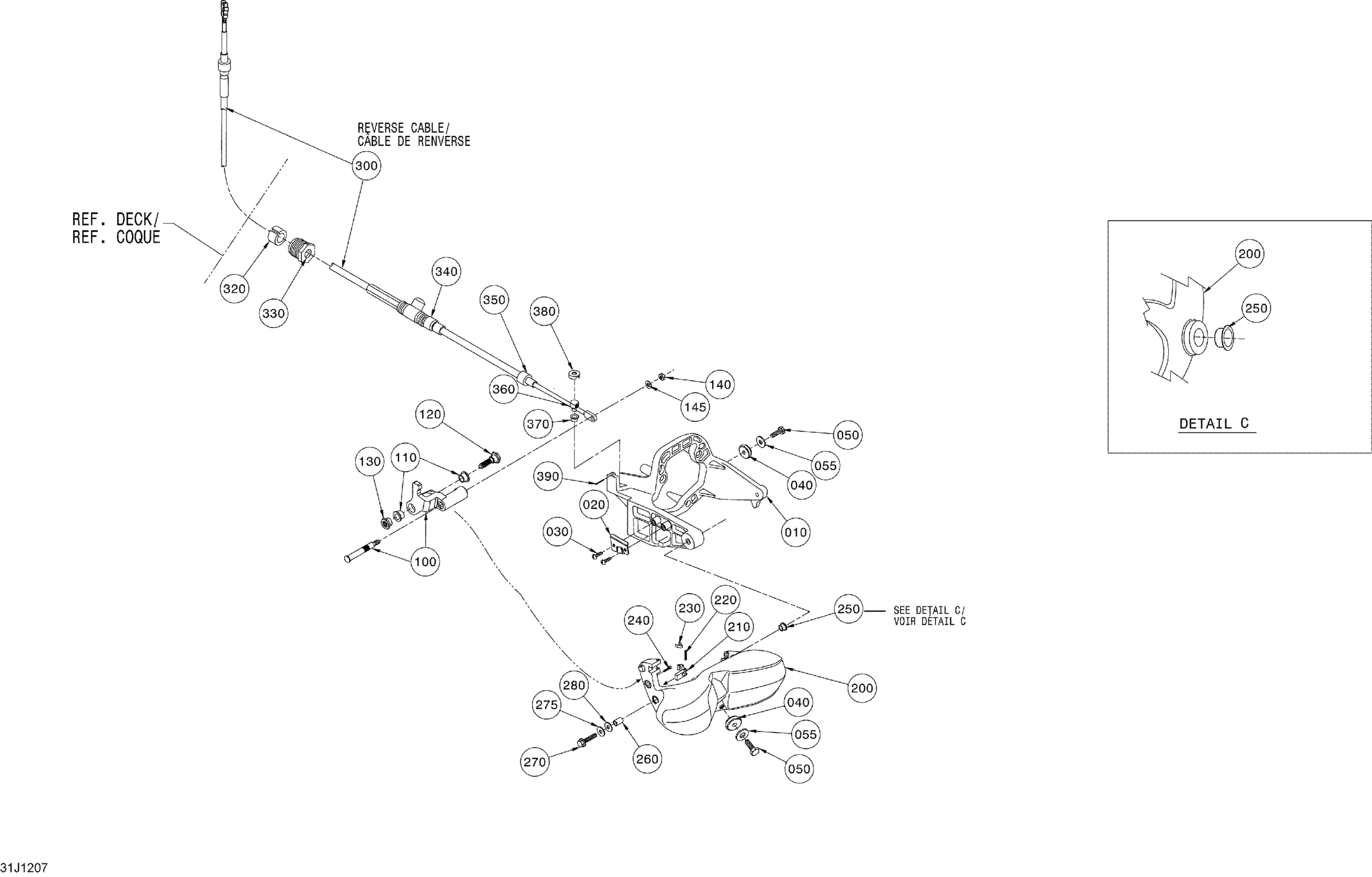

Sea-doo 210 Challenger & Challenger S 260, 2012 Reverse Diagram

#

Description
Price

10

Reverse Gate Support

204170214

$145.57

20

STOP PAWL - Call your local BRP dealership

271000485

Unavailable

30

SCREW-MACH.PAN HD.SLTD.10-24 X 1/2-SS - Call your local BRP dealership

204100270

Unavailable

40

Anode Zinc

271001813

$13.62

50

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

55

Stainless Flat Washer M6

234061600

$0.25

100

NEEDS DESCRIPTION | Includes 7 to 8 This part replaces 204170230.

0460979

Unavailable

110

BUSHING - Call your local BRP dealership

204130036

Unavailable

120

SHOULDER SCREW - Call your local BRP dealership

204100124

Unavailable

130

SHOULDER NUT - Call your local BRP dealership

204100123

Unavailable

140

NEEDS DESCRIPTION This part replaces 204100034.

0460000

Unavailable

145

Flat Washer 5 mm, Stainless

234052600

$0.64

200

Reverse Gate

204170213

$224.22

210

HOOK - Call your local BRP dealership

204170220

Unavailable

220

Pin

211400009

$1.31

230

Spring

271000431

$12.13

240

Socket Head Screw

204100127

$3.07

250

Bushing

204130237

$8.80

260

Sleeve

204170177

$27.27

270

Hex. Flange Screw 18 X 1.56

204100163

$7.22

275

Flat Washer 8 mm, Stainless

234082600

$1.98

280

WASHER, NYLON - Call your local BRP dealership

204100128

Unavailable

300

Reverse Cable

268000110

$118.92

320

Slip Grommet - Call your local BRP dealership

204130420

Unavailable

330

Steering Cable Lock This part replaces 277000784.

277001729

$10.41

340

End Piece

277001583

$11.14

350

Wiper Rod

277001582

$8.83

360

THREADED END PIECE - Call your local BRP dealership

204130038

Unavailable

370

Bushing

204130237

$8.80

380

Reverse Cable Bushing - Call your local BRP dealership This part replaces 204170212.

296000396

Unavailable

390

Cotter Pin

204130040

$2.30
