10- Electrical Accessories 3

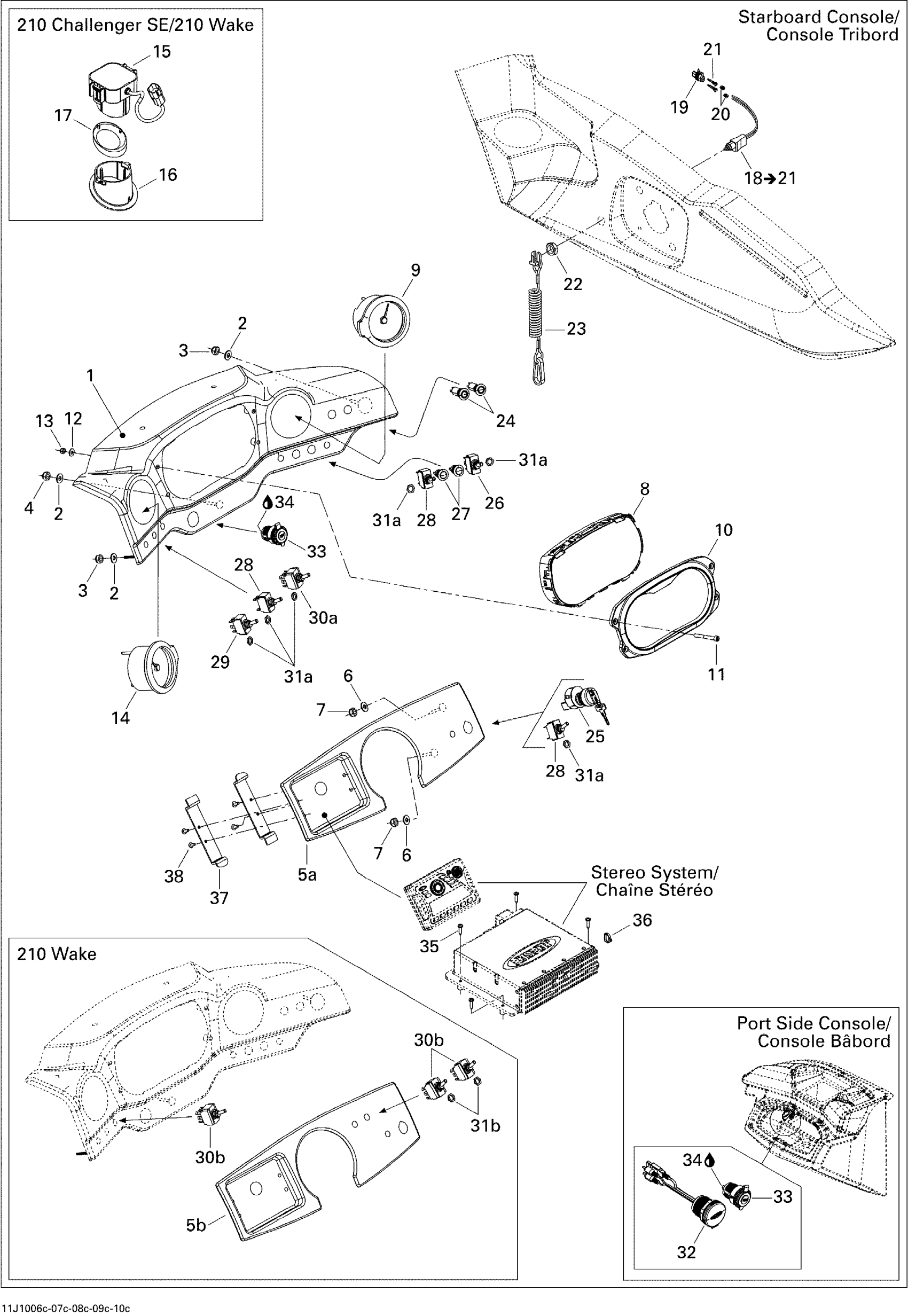

Sea-doo 210 Challenger 310, 2x155 1503NA ETC, 2010 10- Electrical Accessories 3 Diagram
#
1
FASCIA - Call your local BRP dealership
278002419
Unavailable
2
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
3
NUT-STOP ELASTIC IFI 100/107 - Call your local BRP dealership
211100051
Unavailable
4
NEEDS DESCRIPTION This part replaces 204100034.
0460000
$0.60
5a
STEREO PANEL - Call your local BRP dealership
278002425
Unavailable
5b
Not Available As Spare Parts
XXX
Unavailable
6
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
7
NUT-STOP ELASTIC IFI 100/107 - Call your local BRP dealership
211100051
Unavailable
8
CLUSTER-GAUGE - Call your local BRP dealership This part replaces 204471374.
204471539
Unavailable
9
FUEL/VOLT GAUGE - Call your local BRP dealership
278002424
Unavailable
10
GAUGE BEZEL - Call your local BRP dealership This part replaces 278002664.
278002433
Unavailable
11
SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership
205065060
Unavailable
12
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
13
Hex. Elastic Stop Nut M6
232561600
$1.15
14
SPEEDO GAUGE - Call your local BRP dealership
278002423
Unavailable
15
Not Available As Spare Parts
XXX
Unavailable
16
Not Available As Spare Parts
XXX
Unavailable
17
Not Available As Spare Parts
XXX
Unavailable
18
LANYARD SWITCH - Call your local BRP dealership
278002421
Unavailable
19
Male Connector, 2 Circuits
278000220
$15.49
20
Wire Seal
278000218
$4.39
21
Male Terminal | XT Models
278000222
$3.19
22
FLANGED NUT - Call your local BRP dealership
278002472
Unavailable
23
SAFETY LANYARD - Call your local BRP dealership
278002450
Unavailable
24
START SWITCH - Call your local BRP dealership
278002504
Unavailable
25
Ignition Switch With Key
710002323
$86.99
26
SWITCH - Call your local BRP dealership
278002422
Unavailable
27
Switch
278002446
Unavailable
28
SWITCH - Call your local BRP dealership
278002413
Unavailable
29
SWITCH - Call your local BRP dealership
278002414
Unavailable
30a
SWITCH - Call your local BRP dealership
278002505
Unavailable
30b
Not Available As Spare Parts
XXX
Unavailable
31a
NUT SWITCH - Call your local BRP dealership
278002416
Unavailable
31b
Not Available As Spare Parts
XXX
Unavailable
32
USB CONNECTOR - Call your local BRP dealership
278002417
Unavailable
33
DC Outlet
710001248
$37.99
34
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
35
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
209641960
Unavailable
36
Tie-Rap 180 mm
414115200
$0.11
37
BRACKET-STEREO - Call your local BRP dealership
277001743
Unavailable
38
PHILLIPS SCREW 6-32 X 2.5 - Call your local BRP dealership
204100254
Unavailable
