09- Seat 1

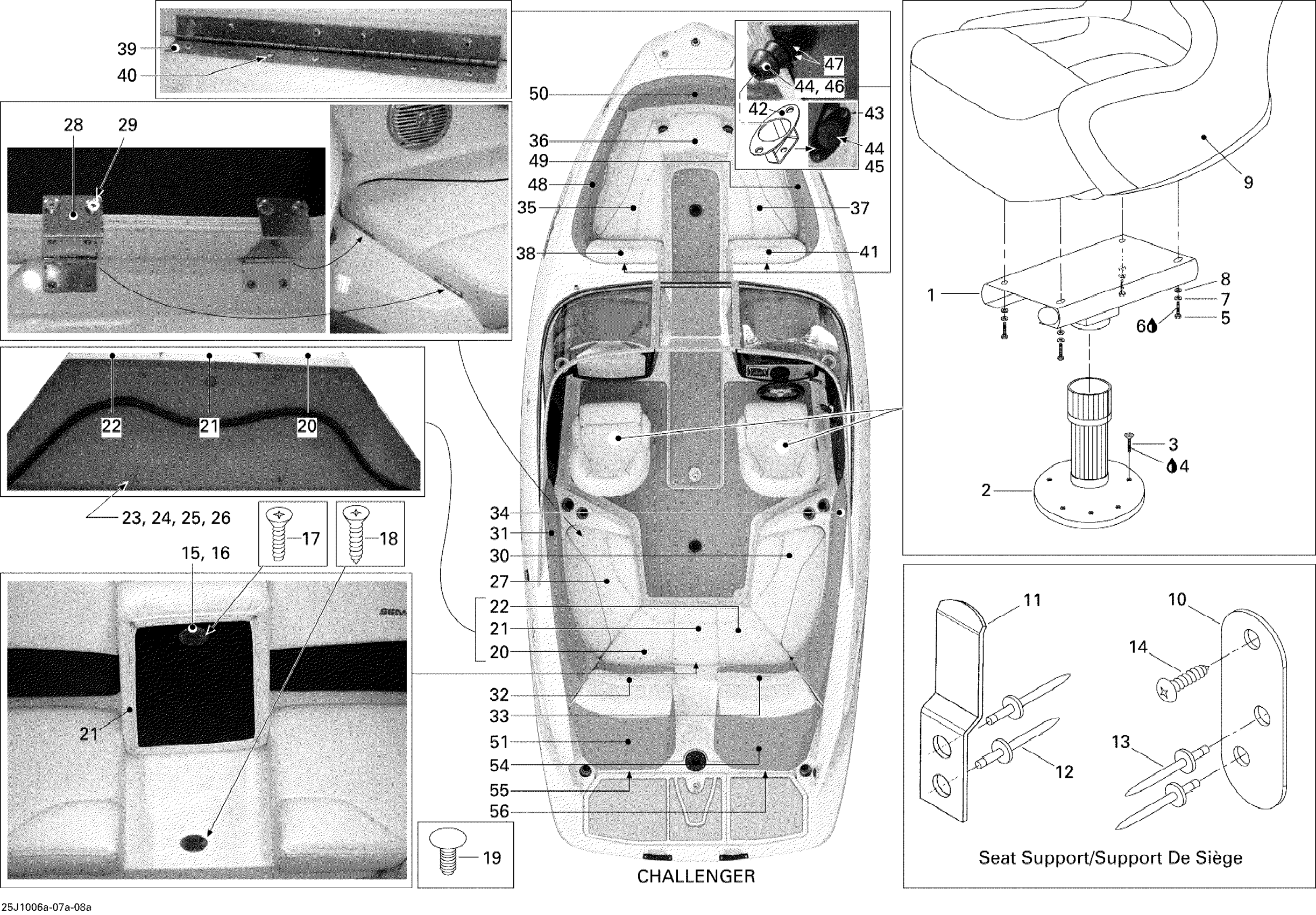

Sea-doo 210 Challenger 310, 2x155 1503NA ETC, 2010 09- Seat 1 Diagram
#
1
SLIDE AND SWIVEL SEAT BASE - Call your local BRP dealership
204613742
Unavailable
2
SEAT PEDESTAL - Call your local BRP dealership
269001903
Unavailable
3
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership
204100201
Unavailable
4
Loctite 243, 10 ml
293800060
$21.49
5
TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership
204100134
Unavailable
6
Loctite 243, 10 ml
293800060
$21.49
7
Lock Washer 1/4”
211200025
$1.29
8
Flat Washer 8 mm, Stainless
234082600
$2.43
9
Bucket Seat, Alabaster
269001591
Unavailable
10
SEAT SUPPORT - Call your local BRP dealership
269001696
Unavailable
11
SEAT SUPPORT - Call your local BRP dealership
269001695
Unavailable
12
Pop Rivet 3/16"
293150043
$2.09
13
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
14
Phillips Screw #8 X 1/2”
204100030
Unavailable
15
SPACER MAGNET 1/8'' - Call your local BRP dealership
204130219
Unavailable
16
MAGNETIC CATCH ASS'Y - Call your local BRP dealership
204614513
Unavailable
17
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
18
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership
208442060
Unavailable
19
Dart 1", White | STD
204130264
$14.82
20
REAR CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership
269002558
Unavailable
21
REAR CUSHION ASS'Y, CENTER - Call your local BRP dealership
269002559
Unavailable
22
REAR CUSHION ASS'Y, STARBOARD SIDE - Call your local BRP dealership
269002560
Unavailable
23
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
24
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
25
Flat Washer 8 mm, Stainless
234082600
$2.43
26
Plastic Cap, White
204130008
Unavailable
27
WRAP ARROUND CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership
269002561
Unavailable
28
HINGE, 90 - Call your local BRP dealership
269001590
Unavailable
29
SLOTTED BOLT 1/4?-20 X 1? - Call your local BRP dealership
204100095
Unavailable
30
LATERAL CUSHION ASS'Y, ALABASTER, STARBO - Call your local BRP dealership This part replaces 269002562.
269002041
Unavailable
31
REAR LATERAL BACKREST ASS'Y, ALAB PORT - Call your local BRP dealership
269002044
Unavailable
32
BACKREST ASSY/REAR-PORT - Call your local BRP dealership This part replaces 269002253.
269002722
Unavailable
33
BACKREST ASSY/REAR-STBD - Call your local BRP dealership This part replaces 269002254.
269002723
Unavailable
34
REAR LATERAL BACKREST ASS'Y, ALAB, STARB - Call your local BRP dealership
269002046
Unavailable
35
FRONT CUSHION ASS'Y, BOW PORT SIDE - Call your local BRP dealership
269002563
Unavailable
36
Not Available As Spare Parts
XXX
Unavailable
37
FRONT CUSHION ASS'Y, STARBOARD - Call your local BRP dealership
269002564
Unavailable
38
BACKREST ACCESS DOOR, PORT - Call your local BRP dealership
269002259
Unavailable
39
Hinge
204613980
Unavailable
40
Pop Rivet 3/16"
293150008
$0.50
41
BACKREST ACCESS DOOR, STARBOARD - Call your local BRP dealership
269002260
Unavailable
42
HOLDER - Call your local BRP dealership
204614762
Unavailable
43
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
44
HOLDER DOOR ASS'Y - Call your local BRP dealership
269002153
Unavailable
45
SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership
204100122
Unavailable
46
SCREW-HEX.HD.MACHINE #10 X 1 - Call your local BRP dealership
204100236
Unavailable
47
FLAT WASHER - Call your local BRP dealership
211200033
Unavailable
48
FRONT LATERAL CUSHION, PORT SIDE - Call your local BRP dealership
269002062
Unavailable
49
FRONT LATERAL BACKREST ASS'Y, ALAB., STA - Call your local BRP dealership
269002064
Unavailable
50
FRONT CENTER BACKREST, ALABASTER - Call your local BRP dealership
269002066
Unavailable
51
Not Available As Spare Parts
XXX
Unavailable
54
Not Available As Spare Parts
XXX
Unavailable
55
Sundeck Cushion, Port
269001907
Unavailable
56
Sundeck Cushion, Starboard
269001924
Unavailable
