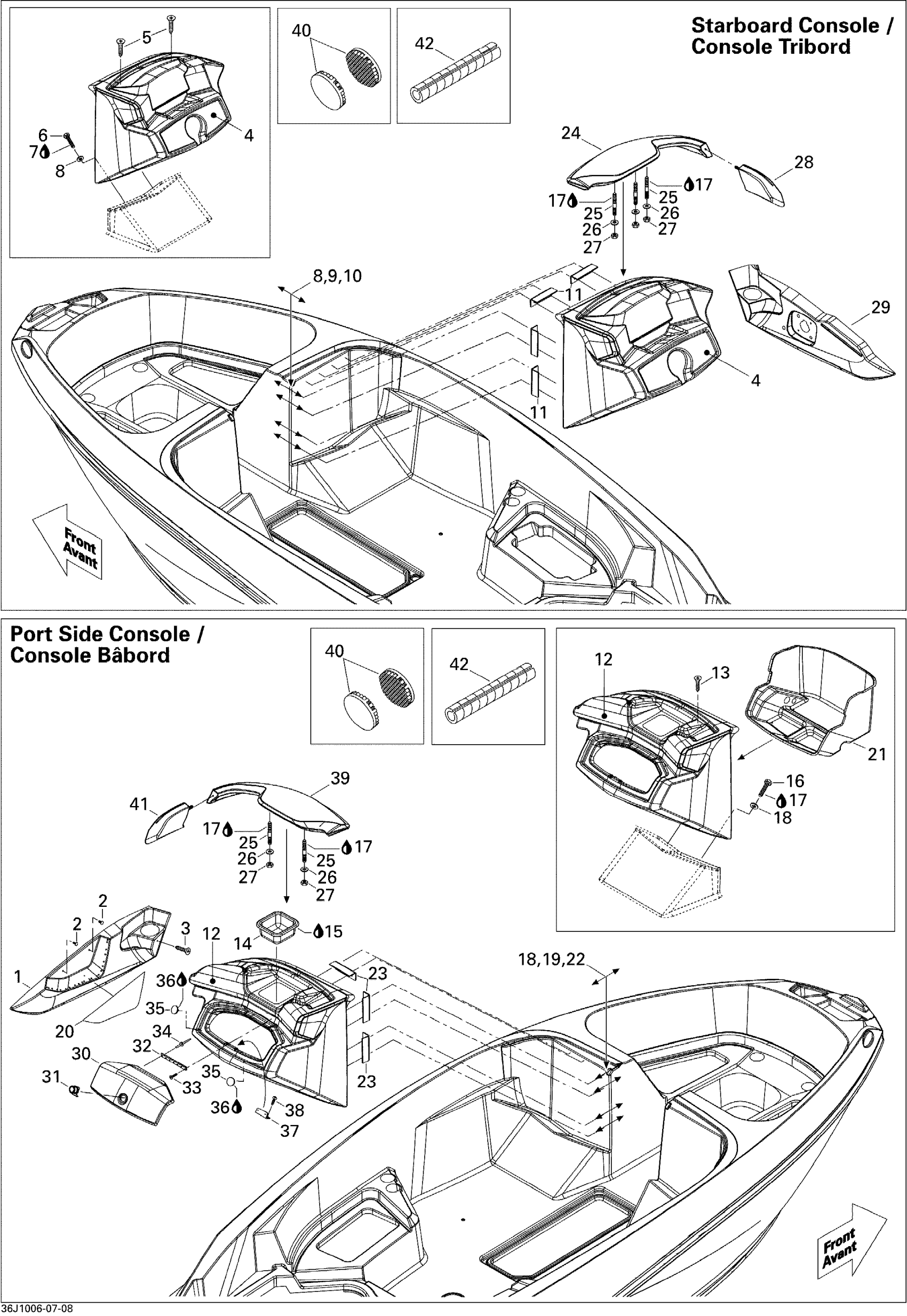

Sea-doo 210 Challenger 310, 2x155 1503NA ETC, 2010 09- Front Console And Glove Box Diagram

#

Description
Price

1

FASCIA-COAMING/PORT - Call your local BRP dealership

291002925

Unavailable

2

Black, Dart

293730006

$0.99

3

Phillips Tapping Screw

204100058

$0.66

4

Console Ass'y, Starboard

291002870

Unavailable

5

PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership

204100056

Unavailable

6

Hex. Screw M6 X 30

207163060

$1.48

7

Loctite 243, 10 ml

293800060

$21.49

8

Flat Washer M6, Stainless

234062600

$0.77

9

Hex. Screw M6 X 45

207164560

$1.89

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Console Ass'y, Port Side

291002871

Unavailable

13

PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership

204100056

Unavailable

14

Upper Glove Box

291002949

Unavailable

15

Silicone Sealant 51388, 300 ml

296000309

$36.99

16

Hex. Screw M6 X 30

207163060

$1.48

17

Loctite 243, 10 ml

293800060

$21.49

18

Flat Washer M6, Stainless

234062600

$0.77

19

Hex. Screw M6 X 45

207164560

$1.89

20

STORAGE NET, PORT SIDE - Call your local BRP dealership

291003051

Unavailable

21

DRY STORAGE BOX - Call your local BRP dealership

291002877

Unavailable

22

Hex. Elastic Stop Nut M6

232561600

$1.15

23

Not Available As Spare Part - Friction Washer

Unavailable

24

CONSOLE BROW, STARBOARD - Call your local BRP dealership

291002867

Unavailable

25

STUD 1/4?-20 X 2? - Call your local BRP dealership

204100033

Unavailable

26

FLAT WASHER 9/32? - Call your local BRP dealership

204100089

Unavailable

27

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

28

CONSOLE BROW PAD, STARBOARD - Call your local BRP dealership

291003035

Unavailable

29

Shifter Panel Fascia, Starboard

291002868

Unavailable

30

LOWER GLOVE BOX DOOR - Call your local BRP dealership

291002872

Unavailable

31

LATCH - Call your local BRP dealership

204073210

Unavailable

32

HINGE - Call your local BRP dealership

291003006

Unavailable

33

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

34

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

35

BUMPER - Call your local BRP dealership

204070940

Unavailable

36

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

37

KEEPER - Call your local BRP dealership

204070060

Unavailable

38

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

39

CONSOLE BROW, PORT SIDE - Call your local BRP dealership

291002878

Unavailable

40

DUAL LOCK, 1/2 X 5 1/2 - Call your local BRP dealership

262000084

Unavailable

41

Console Brow Pad, Port Side

291003036

Unavailable

42

SPLIT LOOM 3/8, METER - Call your local BRP dealership

204050326

Unavailable
