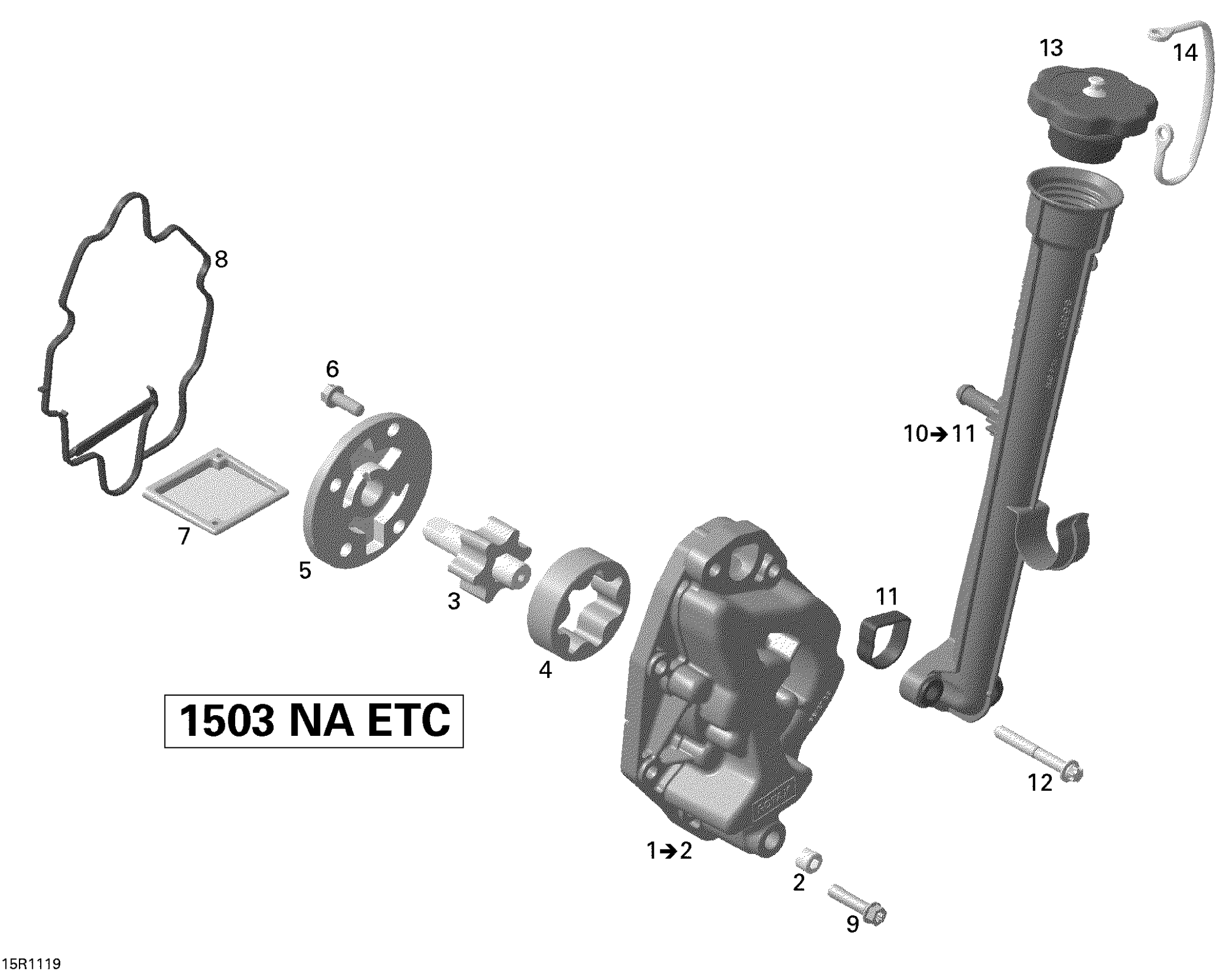

Sea-doo 210 Challenger 310, 2011 02- Oil Separator Diagram

Oil Pump Housing

420812723

$116.49

Plug Screw M10 X 1

420641323

$14.28

Oil Pump Shaft

420837543

$61.49

Oil Pump Rotor 16 mm

420956675

$36.99

Oil Pump Cover

420811851

$33.99

Torx Flange Screw M6 X 16

420641048

$2.96

Oil Sieve

420856520

$26.49

Oil Suction Pump Gasket | Included in gasket kit

420631486

$10.33

Torx Flange Screw M6 X 25

420641238

$3.27

OIL FILLER TUBE ASS'Y - Call your local BRP dealership | Includes 9 to 10

420856511

$38.99

Gasket

420430240

$4.44

Torx Flange Screw M6 X 45

420641198

$4.12

Plug Cover, Yellow

420956923

$23.49

Retaining Band

420660620

$7.41
