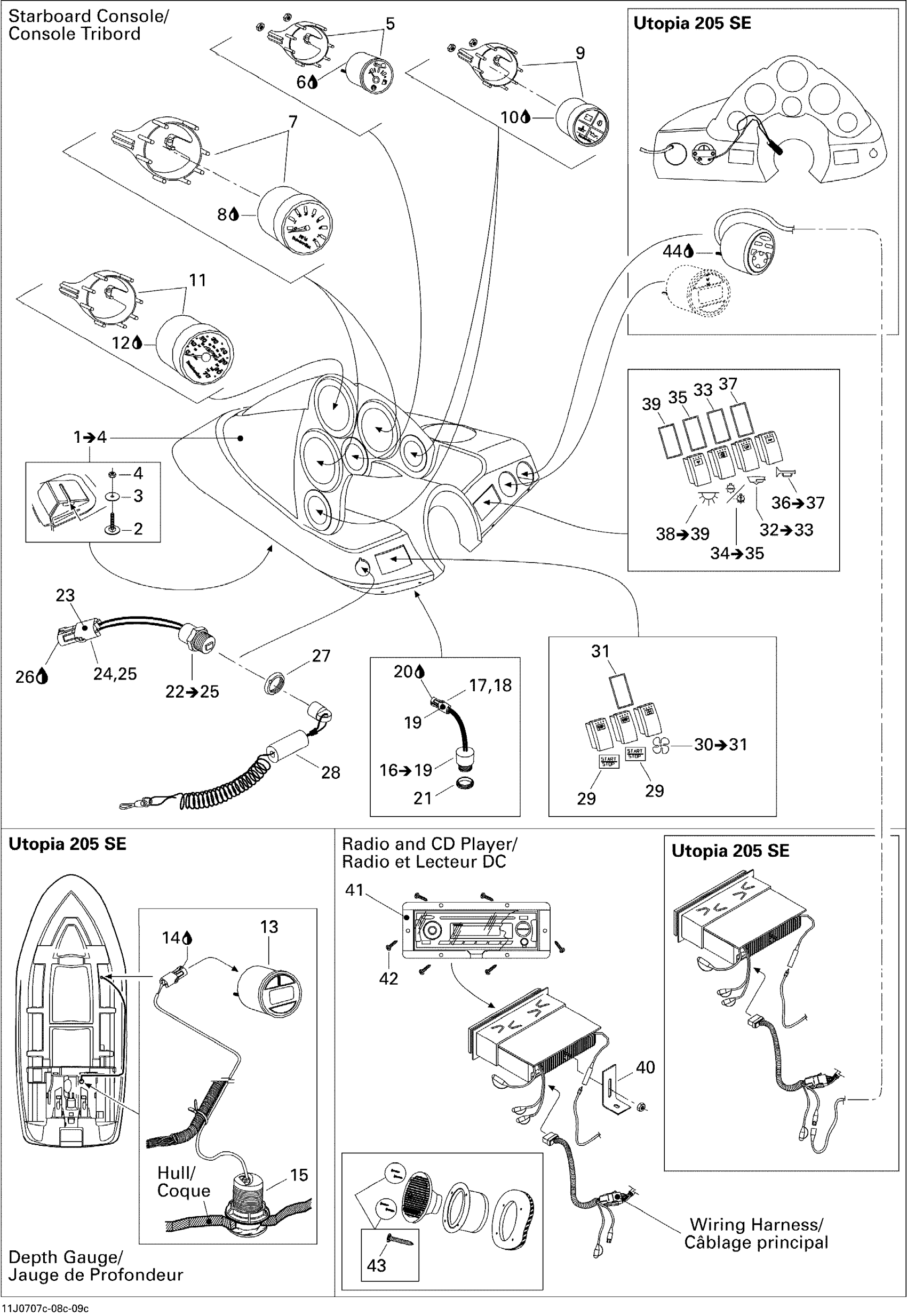

Sea-doo 205 Utopia SE 430, 2008 10- Electrical Accessories 3 Diagram
#
1
Dash Panel Ass'y | Includes 1 to 4
204471252
Unavailable
2
Elevator Bolt
204000130
Unavailable
3
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
4
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
5
FUEL GAUGE - Call your local BRP dealership
204471129
Unavailable
6
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
7
Tachometer Gauge
204471019
Unavailable
8
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
9
ENGINE WARNING GAUGE - Call your local BRP dealership
204471130
Unavailable
10
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
11
Speedometer
204470943
Unavailable
12
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
13
DEPTH GAUGE - Call your local BRP dealership
204470917
Unavailable
14
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
15
Depth Sensor
204471292
$194.99
16
Buzzer Ass'y
204470913
$92.99
17
Male Terminal | XT Models
278000222
$3.19
18
Wire Seal
278000218
$4.39
19
Female Housing, 2 Circuits
278000217
$9.59
20
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
21
Buzzer Nut
278000707
Unavailable
22
Safety Switch This part replaces 278002325.
278002773
$114.99
23
Male Housing, 3 Circuits
278000273
$9.59
24
Wire Seal
278000218
$4.39
25
Female Terminal
278000223
$3.19
26
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
27
Safety Nut (DESS Switch)
278002963
$3.28
28
Safety Lanyard
204471206
$56.99
29
START/STOP SWITCH - Call your local BRP dealership
204471178
Unavailable
30
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
31
Gasket
204470132
Unavailable
32
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
33
Gasket
204470132
Unavailable
34
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
35
Gasket
204470132
Unavailable
36
HORN SWITCH ASS'Y - Call your local BRP dealership
204470101
$49.99
37
Gasket
204470132
Unavailable
38
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470102
Unavailable
39
Gasket
204470132
Unavailable
40
90 RADIO SUPPORT - Call your local BRP dealership
204470926
Unavailable
41
RADIO CD PLAYER COVER - Call your local BRP dealership
204470894
Unavailable
42
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
43
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
44
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
