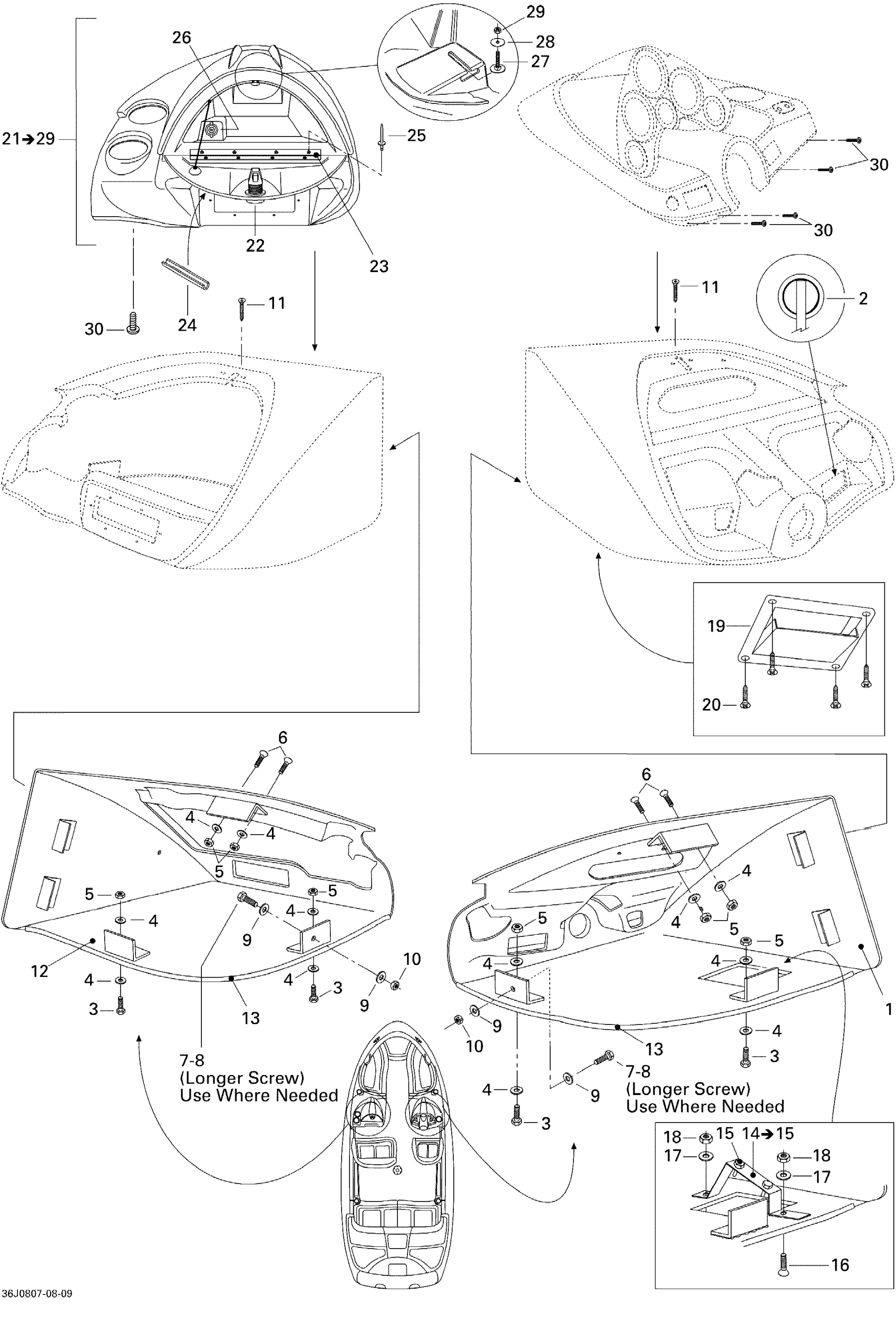

Sea-doo 205 Utopia SE 430, 2008 09- Front Console And Glove Box Diagram

#

Description
Price

1

Console Ass'y, Starboard

204073118

Unavailable

2

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

3

Hex. Screw M6 X 30

207163060

$1.48

4

FLAT WASHER 6 MM - Call your local BRP dealership

234060600

Unavailable

5

Hex. Elastic Stop Nut M6

232561600

$1.15

6

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

7

Hex. Screw M6 X 45

207164560

$1.89

8

Hex. Screw M6 X 65

207166560

$2.75

9

Flat Washer M6, Stainless

234062600

$0.77

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership

204100056

Unavailable

12

Console Ass'y, Port Side

204073117

Unavailable

13

Trim, Off White

204072658

Unavailable

14

Interface Bracket | Includes 14 to 15

204072325

Unavailable

15

Hex. Forming Screw M6 X 20

207162060

$1.29

16

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

17

Stainless Flat Washer M6

234061600

$0.33

18

Hex. Elastic Stop Nut M6

232561600

$1.15

19

Access Door

204072803

Unavailable

20

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

21

GLOVE BOX ASS'Y - Call your local BRP dealership | Includes 21 to 29

204073355

Unavailable

22

DOOR LATCH - Call your local BRP dealership

204071524

Unavailable

23

Hinge

204071525

Unavailable

24

Door Edge

204071526

Unavailable

25

Pop Rivet

204130021

Unavailable

26

DC Outlet

710001248

$37.99

27

Elevator Bolt

204000130

Unavailable

28

FLAT WASHER 9/32? - Call your local BRP dealership

204100089

Unavailable

29

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

30

Phillips Screw #8 X 3/4"

204100153

Unavailable
