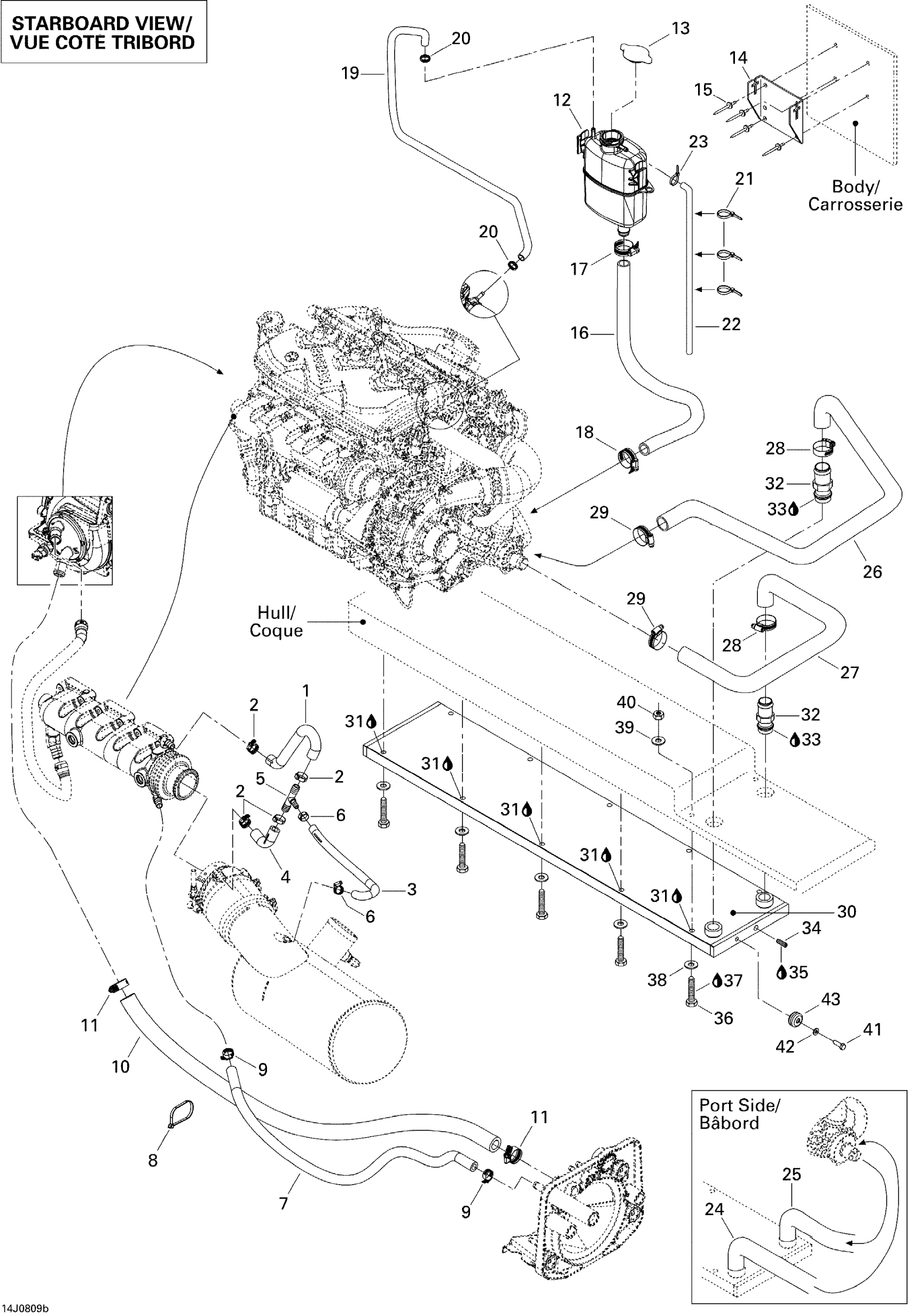

Sea-doo 205 Utopia SE 430, 2008 Cooling System Edition 2 Diagram

#

Description
Price

1

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

2

Tridon Gear Clamp

293650172

$3.09

3

Formed Hose | Without Catalyst

276000246

$19.49

4

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

5

T-Fitting

293710116

$17.62

6

Tridon Gear Clamp

293650171

$3.09

7

Was 276000001 Hose 12.5 mm

219704394

$51.99

8

Tie Wrap 368 mm

293750008

$1.04

9

Tridon Gear Clamp

293650172

$3.09

10

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

11

Tridon Gear Clamp

293650051

$4.19

12

Coolant Tank

276000086

$109.99

13

Pressure Cap | Includes 720 to 720a

276000100

$25.99

14

COOLANT TANK BRACKET - Call your local BRP dealership

204300211

Unavailable

15

RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.

293150201

Unavailable

16

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

17

Tridon Gear Clamp

293650051

$4.19

18

Tridon Gear Clamp

293650019

$5.82

19

Was 275500549 Hose 1/4"

219704357

$194.99

20

Oetiker Gear Clamp

293650025

$3.09

21

Tie Wrap 142 mm

293750002

$1.25

22

Polyurethane Hose 10000Mm Long

219704410

$56.99

23

Tie Wrap 94 mm | 4X4

293750001

$1.03

24

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

25

Ride Plate Hose This part replaces 204300172.

423465058

$43.99

26

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

27

Starboard Formed Hose - Call your local BRP dealership

204300174

Unavailable

28

Tridon Gear Clamp

293650045

$5.69

29

Tridon Gear Clamp

293650045

$5.69

30

HEAT EXCHANGER - Call your local BRP dealership

204300235

Unavailable

31

Instant Gasket

219701421

$51.99

32

Hose Fitting - Call your local BRP dealership

204300133

Unavailable

33

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

34

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

35

Was 293800013 Loctite 56765

219704454

$65.99

36

SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership

205405060

Unavailable

37

Loctite 243, 10 ml

293800060

$21.49

38

Flat Washer 10 mm, Stainless

234000600

$1.46

39

Flat Washer 10 mm, Stainless

234002600

$2.22

40

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

41

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

42

Stainless Flat Washer M6

234061600

$0.33

43

Anode Zinc

271001813

$18.99
