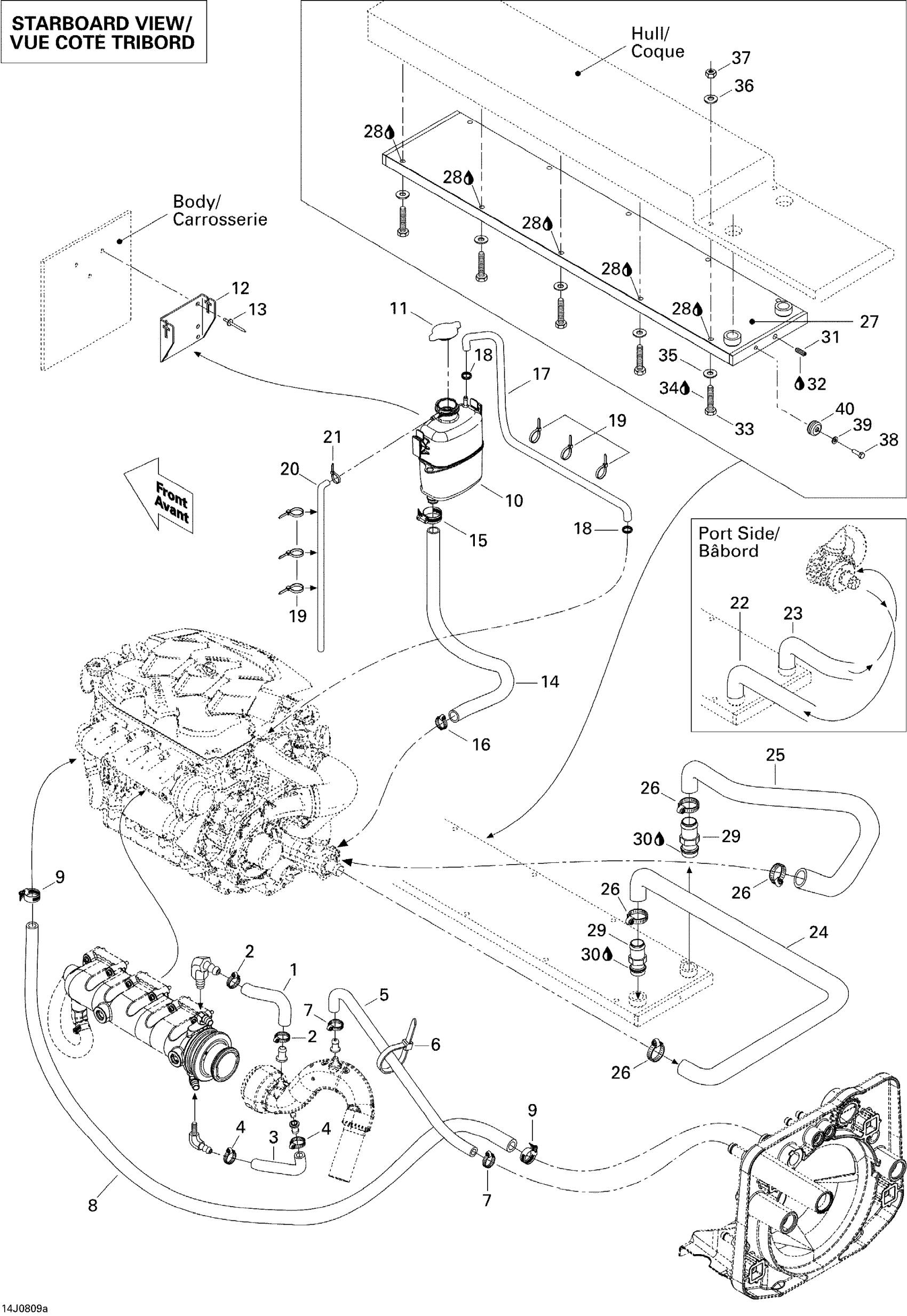

Sea-doo 205 Utopia SE 430, 2008 01- Cooling System Edition 1 Diagram
#
Description
Price
1
Formed Hose
276000155
Unavailable
2
Tridon Gear Clamp
293650172
$3.09
3
Lower Formed Hose
276000104
Unavailable
4
Tridon Gear Clamp
293650172
$3.09
5
Was 276000001 Hose 12.5 mm
219704394
$51.99
6
Tie Wrap 368 mm
293750008
$1.04
7
Tridon Gear Clamp
293650172
$3.09
8
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
9
Tridon Gear Clamp
293650051
$4.19
10
Coolant Tank
276000086
$109.99
11
Pressure Cap | Includes 720 to 720a
276000100
$25.99
12
COOLANT TANK BRACKET - Call your local BRP dealership
204300211
Unavailable
13
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.
293150201
Unavailable
14
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
15
Tridon Gear Clamp
293650051
$4.19
16
Tridon Gear Clamp
293650019
$5.82
17
Was 275500549 Hose 1/4"
219704357
$194.99
18
Oetiker Gear Clamp
293650025
$3.09
19
Tie Wrap 142 mm
293750002
$1.25
20
Polyurethane Hose 10000Mm Long
219704410
$56.99
21
Tie Wrap 94 mm | 4X4
293750001
$1.03
22
HOSE 25.4 MM, METER - Call your local BRP dealership
204300199
Unavailable
23
Ride Plate Hose This part replaces 204300172.
423465058
$43.99
24
Formed Hose | Starboard
204300173
Unavailable
25
Starboard Formed Hose - Call your local BRP dealership
204300174
Unavailable
26
Tridon Gear Clamp
293650045
$5.69
27
HEAT EXCHANGER - Call your local BRP dealership
204300235
Unavailable
28
Instant Gasket
219701421
$51.99
29
Hose Fitting - Call your local BRP dealership
204300133
Unavailable
30
Était Was 293800050 Loctite 577, 250 ml
219704459
$104.99
31
Pipe Plug Socket Head 1/8-27 Npt
211500001
$9.59
32
Was 293800013 Loctite 56765
219704454
$65.99
33
SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership
205405060
Unavailable
34
Loctite 243, 10 ml
293800060
$21.49
35
Flat Washer 10 mm, Stainless
234000600
$1.46
36
Flat Washer 10 mm, Stainless
234002600
$2.22
37
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
38
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
39
Stainless Flat Washer M6
234061600
$0.33
40
Anode Zinc
271001813
$18.99
