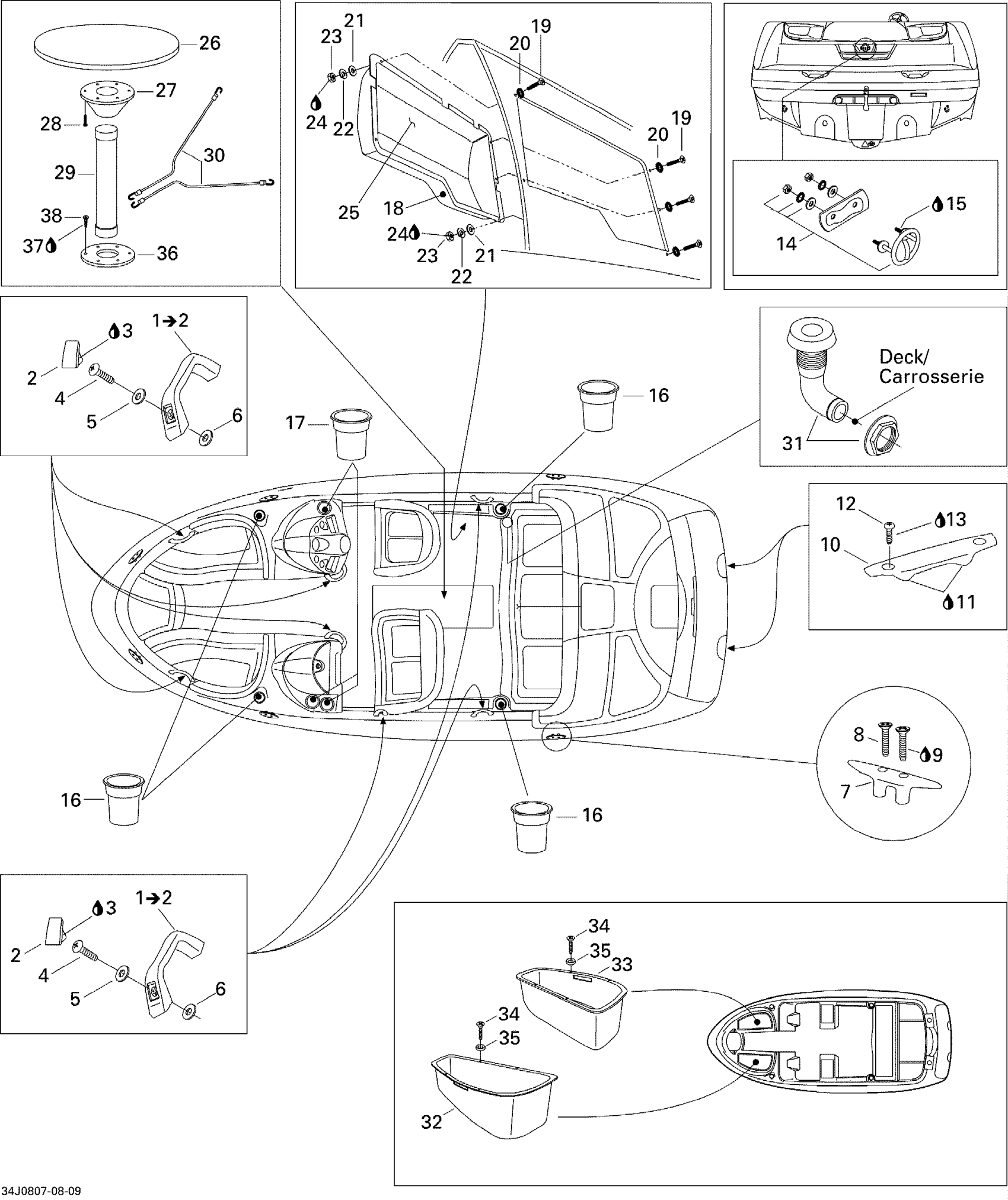

Sea-doo 205 Utopia SE 310, 2008 09- Body And Accessories Diagram
#
1
Handle Grip
204071710
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
4
SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership
205963060
Unavailable
5
Stainless Flat Washer M6
234061600
$0.33
6
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
7
CLEAT - Call your local BRP dealership | STD
204070592
Unavailable
8
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD
204100144
Unavailable
9
Loctite 243, 10 ml
293800060
$21.49
10
GRIP HANDLE, BLACK - Call your local BRP dealership
204070194
Unavailable
11
Silicone Sealant 51388, 300 ml
296000309
$36.99
12
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
13
Loctite 243, 10 ml
293800060
$21.49
14
Ski Tow Hook
204070206
Unavailable
15
Loctite 271, 10 ml
293800005
$26.99
16
Holder Cup
204072721
Unavailable
17
HOLDER CUP, BLACK - Call your local BRP dealership
204072216
Unavailable
18
Side Storage, Port Side
204072348
Unavailable
18
Side Storage, Starboard
204072363
Unavailable
19
Elevator Bolt
204000130
Unavailable
20
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
21
Flat Washer M6, Stainless
234062600
$0.77
22
Lock Washer 1/4”
211200025
$1.29
23
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
24
Loctite 243, 10 ml
293800060
$21.49
25
Lateral Storage Carpet, Port Side
204072701
Unavailable
25
Lateral Storage Carpet, Starboard
204072697
Unavailable
26
Cockpit Table
204072768
Unavailable
27
TABLE MOUNT - Call your local BRP dealership | Challenger S
204071315
Unavailable
28
TAPPING SCREW M5 X 19 - Call your local BRP dealership | Challenger S
209951960
Unavailable
29
TABLE POST, LARGE - Call your local BRP dealership | Challenger S
204070634
Unavailable
30
ICE CHEST STRAP - Call your local BRP dealership
204070905
Unavailable
31
Drain Fitting 90°, Black
204072742
Unavailable
32
Storage Tray, Port Side, Beige
204072625
Unavailable
33
Storage Tray, Starboard, Beige
204072626
Unavailable
34
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
35
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
36
TABLE BASE - Call your local BRP dealership
204071209
Unavailable
37
Silicone Sealant 51388, 300 ml
296000309
$36.99
38
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
