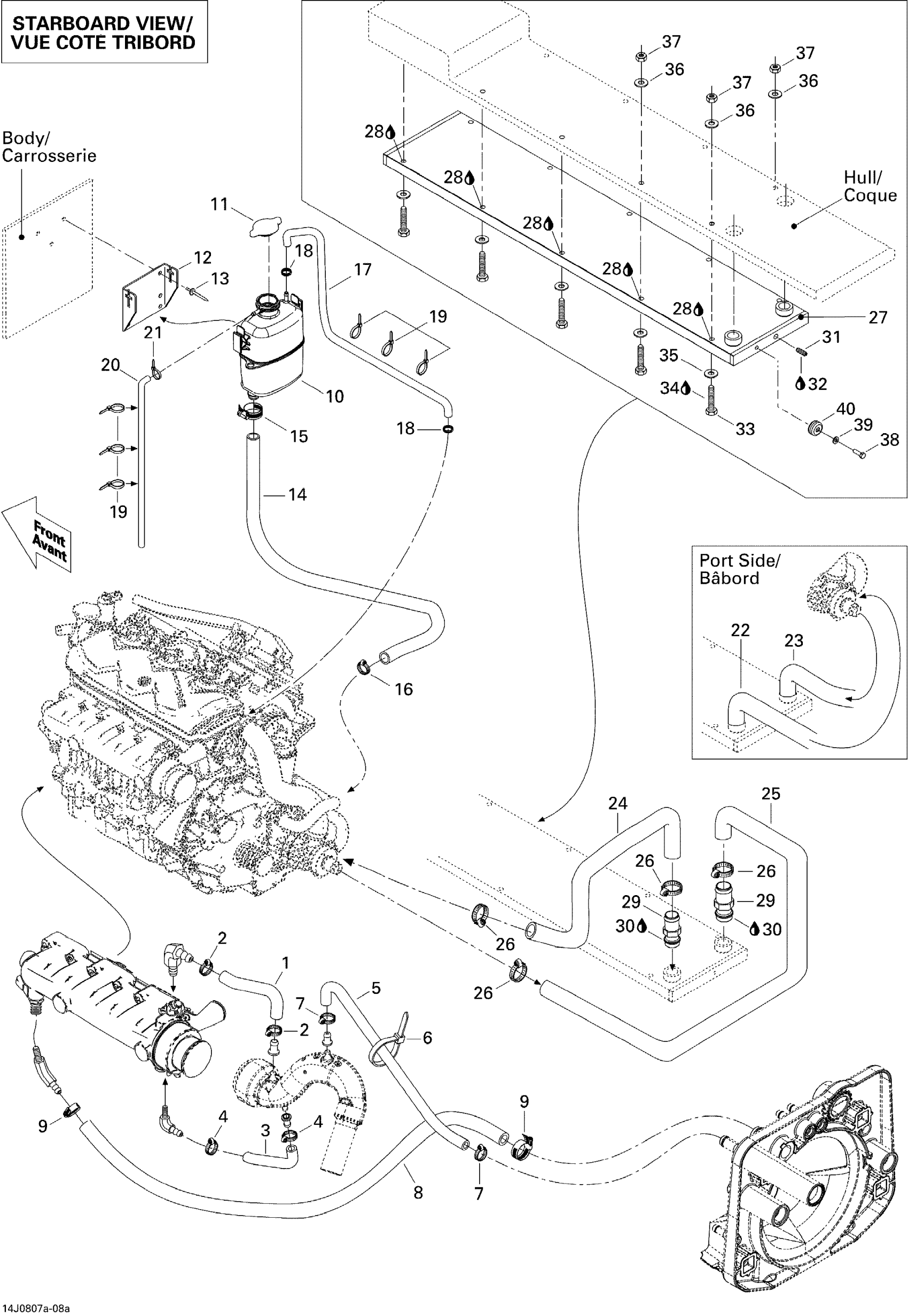

Sea-doo 205 Utopia SE 310, 2008 Cooling System Edition 1 Diagram

#

Description
Price

1

Formed Hose

276000155

Unavailable

2

Tridon Gear Clamp

293650172

$2.68

3

Lower Formed Hose

276000104

Unavailable

4

Tridon Gear Clamp

293650172

$2.68

5

Was 276000001 Hose 12.5 mm

219704394

$42.87

6

Tie Wrap 368 mm

293750008

$0.85

7

Tridon Gear Clamp

293650172

$2.68

8

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

9

Tridon Gear Clamp

293650051

$3.61

10

Coolant Tank

276000086

$87.72

11

Pressure Cap | Includes 720 to 720a

276000100

$20.77

12

COOLANT TANK BRACKET - Call your local BRP dealership

204300211

Unavailable

13

RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.

293150201

Unavailable

14

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

15

Tridon Gear Clamp

293650051

$3.61

16

Tridon Gear Clamp

293650019

$4.81

17

Was 275500549 Hose 1/4"

219704357

$178.33

18

Oetiker Gear Clamp

293650025

$2.46

19

Tie Wrap 142 mm

293750002

$0.88

20

Polyurethane Hose 10000Mm Long

219704410

$46.12

21

Tie Wrap 94 mm | 4X4

293750001

$0.83

22

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

23

Ride Plate Hose This part replaces 204300172.

423465058

Unavailable

24

Formed Hose | Starboard

204300173

Unavailable

25

Starboard Formed Hose - Call your local BRP dealership

204300174

Unavailable

26

Tridon Gear Clamp

293650045

$4.51

27

HEAT EXCHANGER - Call your local BRP dealership

204300235

Unavailable

28

Instant Gasket

219701421

$50.02

29

Hose Fitting - Call your local BRP dealership

204300133

Unavailable

30

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

31

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

32

Was 293800013 Loctite 56765

219704454

$63.40

33

SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership

205405060

Unavailable

34

Loctite 243, 10 ml

293800060

$20.77

35

Flat Washer 10 mm, Stainless

234000600

$1.07

36

Flat Washer 10 mm, Stainless

234002600

$1.85

37

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

38

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

39

Stainless Flat Washer M6

234061600

$0.25

40

Anode Zinc

271001813

$13.62
