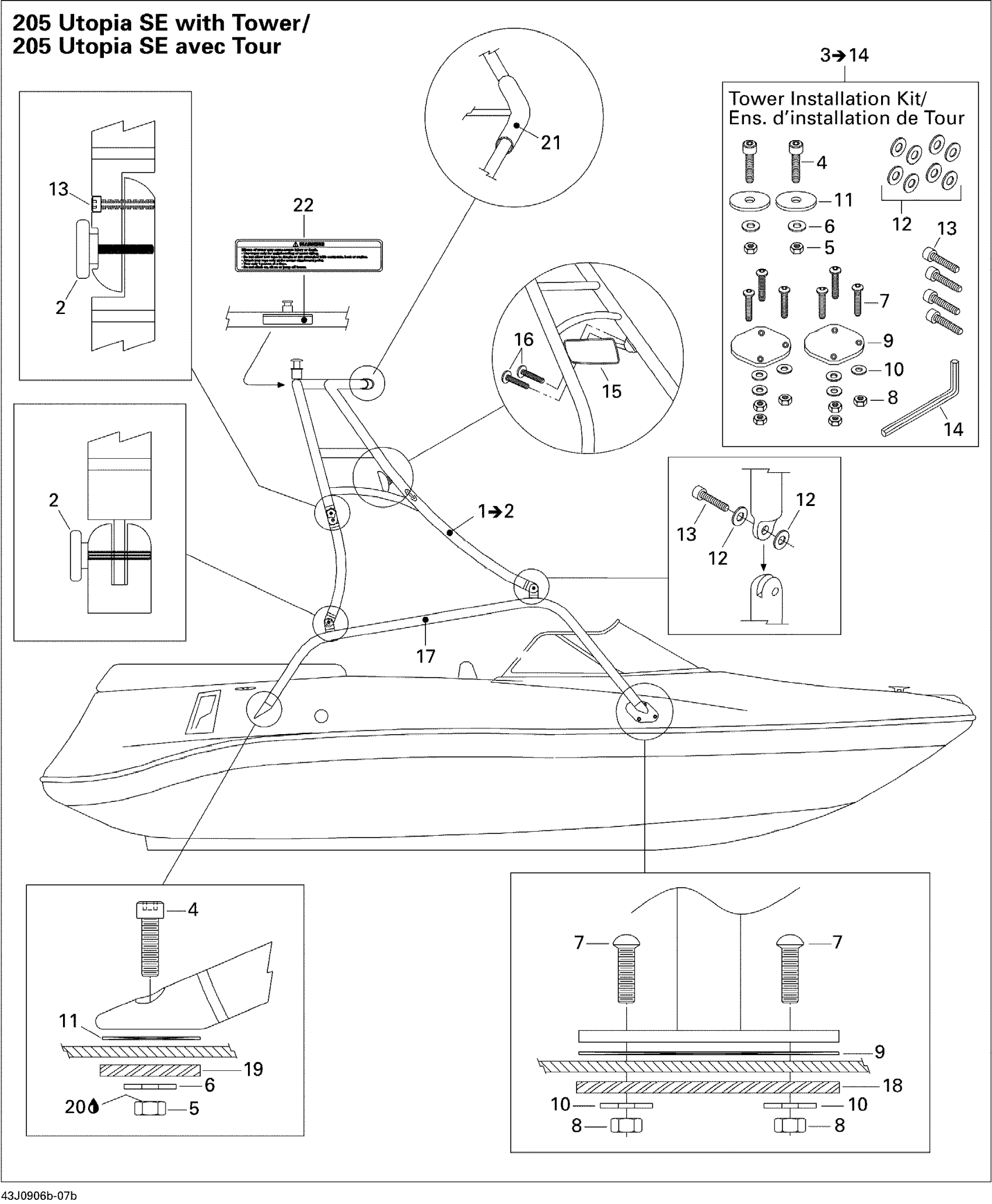

Sea-doo 205 Utopia SE, 2 x 215 SCIC, 2009 09- Tower Diagram
#
Description
Price
1
Tower Ass'y | Includes 1 to 2
204071416
Unavailable
2
Fluted Knob
204071433
Unavailable
3
Tower Installation Hardware Kit | Includes 3 to 14
204072241
Unavailable
4
SOCKET HEAD SCREW 5/8? X 2-1/2? - Call your local BRP dealership | Without Tower
204100092
Unavailable
5
LOCK NUT 5/8 - Call your local BRP dealership | Without Tower
204100093
Unavailable
6
WASHER - Call your local BRP dealership | Without Tower
204071423
Unavailable
7
SCREW-CTSK.OV.HD. 1/4-20 X 2 - Call your local BRP dealership
204100151
Unavailable
8
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
9
Gasket, Front
204130106
Unavailable
10
Flat Washer 1/4", Stainless
204100157
Unavailable
11
GASKET, REAR - Call your local BRP dealership
204130010
Unavailable
12
Washer, Nylon
204100158
Unavailable
13
SOCKET HEAD SCREW 3/8-16 X 1-1/2 - Call your local BRP dealership
204100094
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
SKI MIRROR - Call your local BRP dealership This part replaces 204071420.
295100386
Unavailable
16
PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership
204100129
Unavailable
17
LH Tower Rail
204072227
Unavailable
17
RH Tower Rail
204072226
Unavailable
18
TOWER INSERT, FRONT - Call your local BRP dealership
204072228
Unavailable
19
Tower Insert
204072271
Unavailable
20
Loctite 243, 10 ml
293800060
$21.49
21
Tower pad
204072602
Unavailable
22
WARNING DECAL, TOWER - Call your local BRP dealership
204901340
Unavailable
