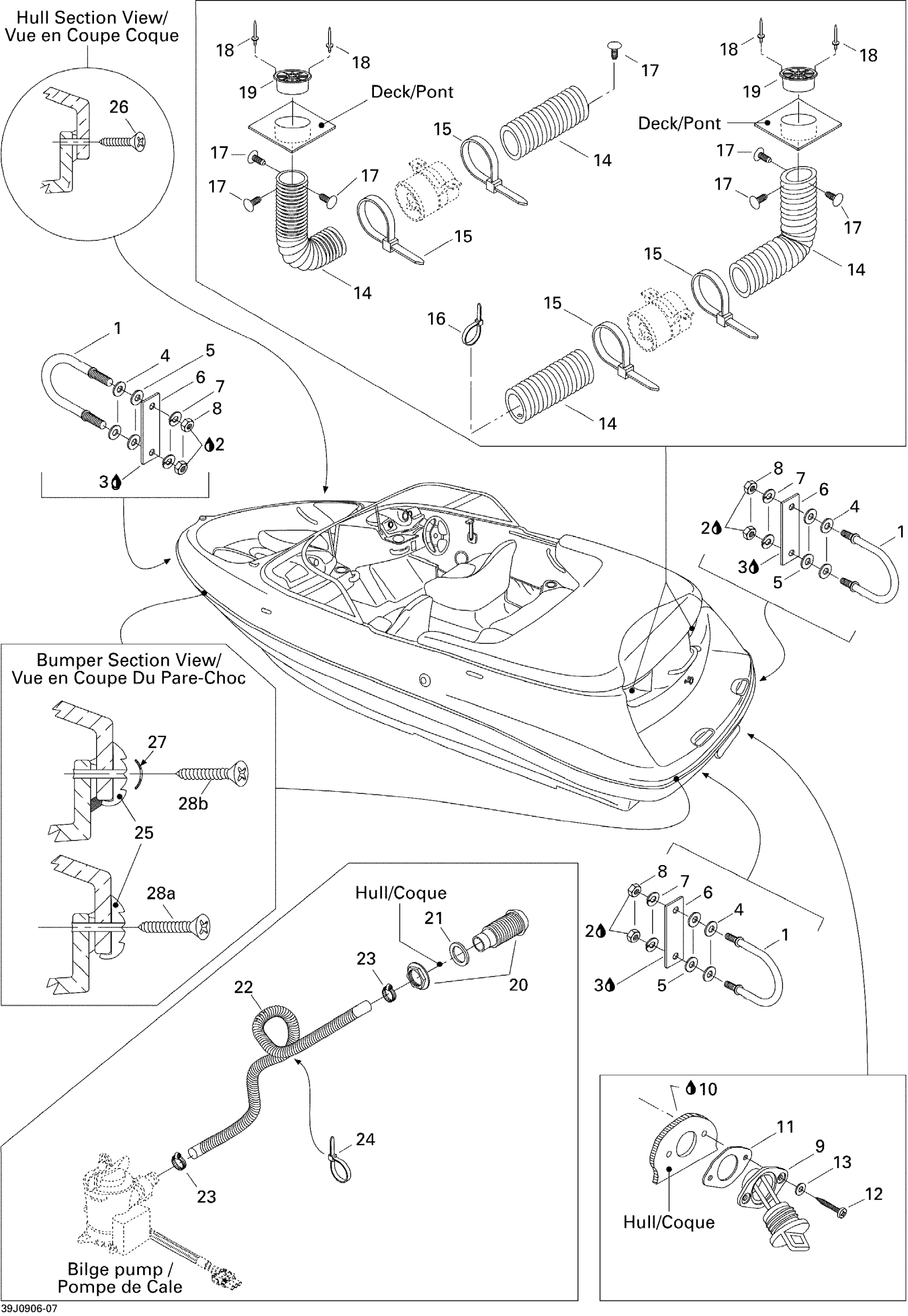

Sea-doo 205 Utopia SE, 2 x 215 SCIC, 2009 Hull Diagram

#

Description
Price

1

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

2

Loctite 271, 10 ml

293800005

$26.99

3

Silicone Sealant 51388, 300 ml

296000309

$36.99

4

Flat Washer M8.5 x 18

293050001

$3.07

5

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

6

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

7

Lock Washer 8 mm, Stainless

234181601

$0.55

8

Hex. Nut M8

232081600

$1.47

9

Drain Plug

292000187

$14.49

10

Silicone Sealant 51388, 300 ml

296000309

$36.99

11

GASKET - Call your local BRP dealership

293250030

Unavailable

12

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

13

Flat Washer 4 mm, Stainless

234041600

$1.15

14

Was 204050122 Vent Hose 4"

219704358

$25.99

15

Tie Rap, 533 mm

293750047

$2.09

16

Tie-Rap 180 mm

414115200

$0.11

17

Black, Dart

293730006

$0.99

18

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

19

Vent Grille 4 - Call your local BRP dealership

204050637

Unavailable

20

Fitting

293710162

$13.49

21

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

22

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

23

Tridon Clamp

293650016

$10.99

24

Tie-Rap 180 mm

414115200

$0.11

25

BUMPER, BLACK - Call your local BRP dealership

204050768

Unavailable

26

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

27

BUMPER TRIM, INOX. - Call your local BRP dealership | Challenger 310 SE

204050769

Unavailable

28a

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

28b

PHILLIPS TAPPING SCREW M4.2 X 38 - Call your local BRP dealership | Chalenger SE

250000395

Unavailable
