- 205 Utopia SE, 2 x 215 SCIC, 2009
09- Front Console And Glove Box

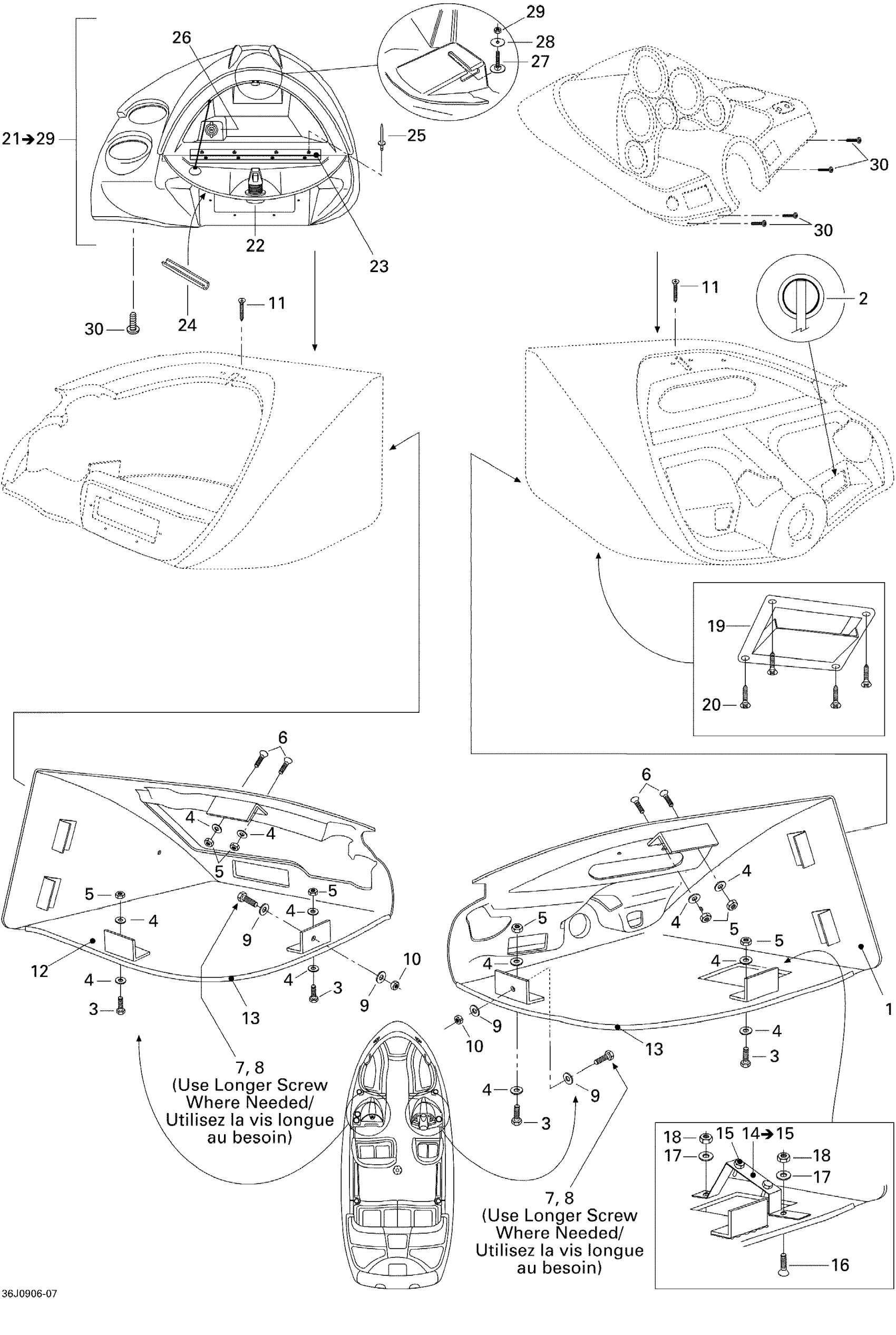

Sea-doo 205 Utopia SE, 2 x 215 SCIC, 2009 09- Front Console And Glove Box Diagram
#
Description
Price
1
Console Ass'y, Starboard
204073118
Unavailable
2
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
3
Hex. Screw M6 X 30
207163060
$1.48
4
FLAT WASHER 6 MM - Call your local BRP dealership
234060600
Unavailable
5
Hex. Elastic Stop Nut M6
232561600
$1.15
6
OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership
208563060
Unavailable
7
Hex. Screw M6 X 45
207164560
$1.89
8
Hex. Screw M6 X 65
207166560
$2.75
9
Flat Washer M6, Stainless
234062600
$0.77
10
Hex. Elastic Stop Nut M6
232561600
$1.15
11
PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership
204100056
Unavailable
12
Console Ass'y, Port Side
204073117
Unavailable
13
Trim, Off White
204072658
Unavailable
14
Interface Bracket | Includes 14 to 15
204072325
Unavailable
15
Hex. Forming Screw M6 X 20
207162060
$1.29
16
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership
208462060
Unavailable
17
Stainless Flat Washer M6
234061600
$0.33
18
Hex. Elastic Stop Nut M6
232561600
$1.15
19
Access Door
204072803
Unavailable
20
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
21
GLOVE BOX ASS'Y - Call your local BRP dealership | Includes 21 to 29
204073355
Unavailable
22
LATCH - Call your local BRP dealership
204073210
Unavailable
23
Hinge
204071525
Unavailable
24
Door Edge
204071526
Unavailable
25
Pop Rivet
204130021
Unavailable
26
DC Outlet
710001248
$37.99
27
Elevator Bolt
204000130
Unavailable
28
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
29
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
30
Phillips Screw #8 X 3/4"
204100153
Unavailable
