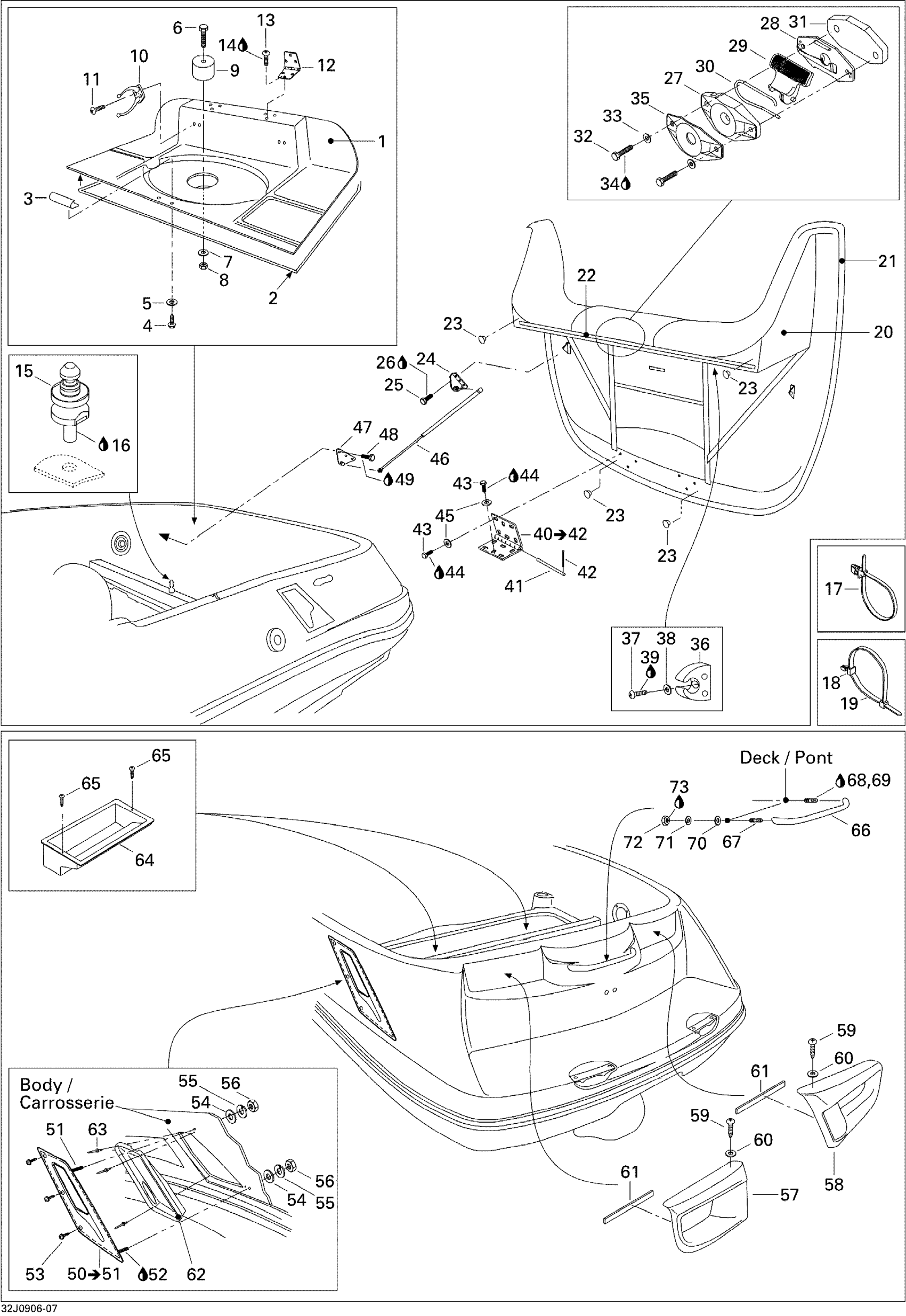

Sea-doo 205 Utopia SE, 2 x 215 SCIC, 2009 Engine Compartment And Accessories Diagram

#

Description
Price

1

Access Cover

204050743

Unavailable

2

Seal Tray 1000Mm Long

219704368

$13.99

3

HANDLE, WHITE - Call your local BRP dealership

291000608

Unavailable

4

Hex. Flange Screw K40 X 16

241141660

$1.48

5

Flat Washer 4 mm, Stainless

234042600

$1.15

6

Hex. Screw M6 X 50

207065060

$2.22

7

Flat Washer M6, Stainless

234062600

$0.77

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

ACCESS COVER PLUG - Call your local BRP dealership

204072432

Unavailable

10

POLE CLIP - Call your local BRP dealership | Challenger S

204070342

Unavailable

11

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

12

HINGE - Call your local BRP dealership

204072386

Unavailable

13

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

14

Loctite 243, 10 ml

293800060

$21.49

15

Latch Stud

204130146

$154.99

16

Loctite 243, 10 ml

293800060

$21.49

17

TIE RAP WITH DART - Call your local BRP dealership

204130098

Unavailable

18

DART, BLACK - Call your local BRP dealership

204130099

Unavailable

19

Tie Wrap 368 mm

293750008

$1.04

20

Engine Cover

204073120

Unavailable

21

Seal Tray 1000Mm Long

219704368

$13.99

22

Was 293200017 Neoprene Seal

219704365

$149.99

23

GROMMET - Call your local BRP dealership

293720017

Unavailable

24

Shock Bracket

204073074

$27.99

25

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

26

Loctite 243, 10 ml

293800060

$21.49

27

Latch Ass'y

269700109

$24.99

28

Latch Ass'y

269700109

$24.99

29

Latch Ass'y

269700109

$24.99

30

Latch Spring

269700017

$9.19

31

SHIM - Call your local BRP dealership

269700015

Unavailable

32

Hex. Screw M6 X 50

207065060

$2.22

33

Stainless Flat Washer M6

234061600

$0.33

34

Loctite 243, 10 ml

293800060

$21.49

35

LATCH PROTECTOR - Call your local BRP dealership

204070952

Unavailable

36

Pole Support

291000642

Unavailable

37

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

38

Flat Washer 4 mm

234040600

$0.55

39

Loctite 243, 10 ml

293800060

$21.49

40

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

41

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

42

Cotter Pin M2.5 X 12

204070205

Unavailable

43

Hex. Screw M6 X 25

207162560

$1.47

44

Loctite 243, 10 ml

293800060

$21.49

45

Stainless Flat Washer M6

234061600

$0.33

46

Gas Shock

204071925

Unavailable

47

SHOCK BRACKET - Call your local BRP dealership

204073065

Unavailable

48

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

Unavailable

49

Loctite 243, 10 ml

293800060

$21.49

50

Vent Cover Ass'y, Port Side | Includes 50 to 51

204072317

Unavailable

50

VENT COVER ASS'Y, STARBOARD - Call your local BRP dealership | Includes 50 to 51

204072318

Unavailable

51

Elevator Bolt

204000130

Unavailable

52

Loctite 243, 10 ml

293800060

$21.49

53

PHILLIPS SCREW 1 - Call your local BRP dealership

204100154

Unavailable

54

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

55

Lock Washer 1/4”

211200025

$1.29

56

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

57

Vent Cover Ass'y, Port Side

204073360

Unavailable

58

Vent Cover Ass'y, Starboard

204073362

Unavailable

59

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

60

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

61

Was 293200017 Neoprene Seal

219704365

$149.99

62

Inlet Vent, Port Side

204072315

Unavailable

62

Inlet Vent, Starboard

204072316

Unavailable

63

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

64

Seat Storage, Port Side

204073177

Unavailable

64

Seat Storage, Starboard

204073178

Unavailable

65

SLOTTED BOLT 1/4?-20 X 1? - Call your local BRP dealership

204100095

Unavailable

66

GRAB HANDLE - Call your local BRP dealership

204071122

Unavailable

67

STUD 3/8?-16 X 2? - Call your local BRP dealership

204100050

Unavailable

68

Loctite 271, 10 ml

293800005

$26.99

69

Was 293800041 Loctite Primer 7649

219704458

$39.99

70

Flat Washer 10 mm, Stainless

234002600

$2.22

71

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

72

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

73

Loctite 271, 10 ml

293800005

$26.99
