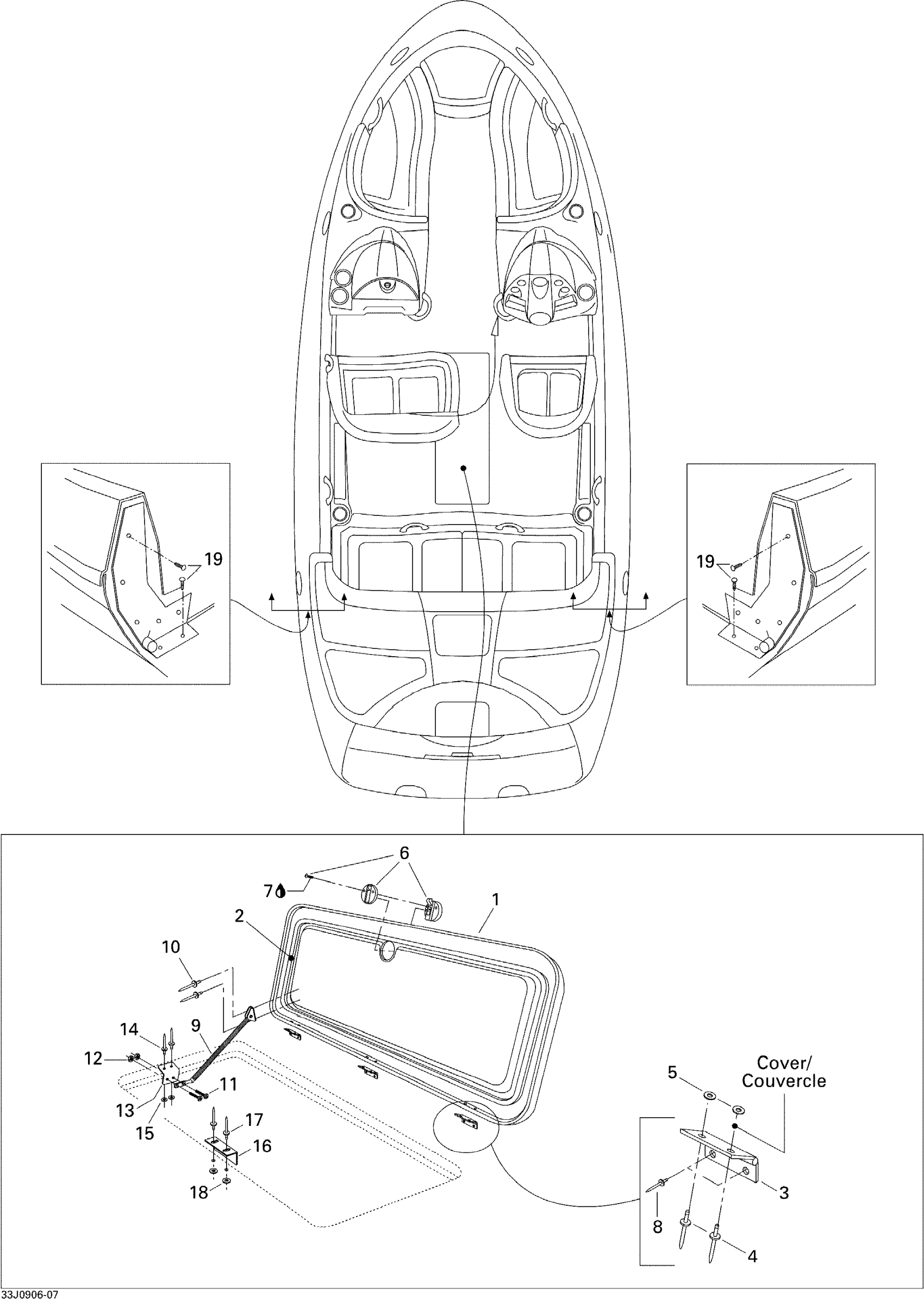

Sea-doo 205 Utopia SE, 2 x 215 SCIC, 2009 Central Cover And Accessories Diagram

#

Description
Price

1

Central Cover

204073122

Unavailable

2

Seal Tray 1000Mm Long

219704368

$13.99

3

HINGE - Call your local BRP dealership

204072601

Unavailable

4

Avdel Rivet 3/16"

293150037

$0.56

5

Flat Washer M5, Stainless

234051600

$0.77

6

LATCH ASS'Y - Call your local BRP dealership

204073348

Unavailable

7

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

8

Avdel Rivet 3/16"

293150037

$0.56

9

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

10

Pop Rivet 3/16"

204000081

$1.49

11

PHILLIPS SCREW 6-32 X 3/8 - Call your local BRP dealership

250000231

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Pop Rivet 3/16"

293150043

$2.09

15

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable

16

KEEPER - Call your local BRP dealership

204070060

Unavailable

17

Pop Rivet 3/16"

293150088

$0.99

18

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable

19

Black Dart

293730014

$0.99
