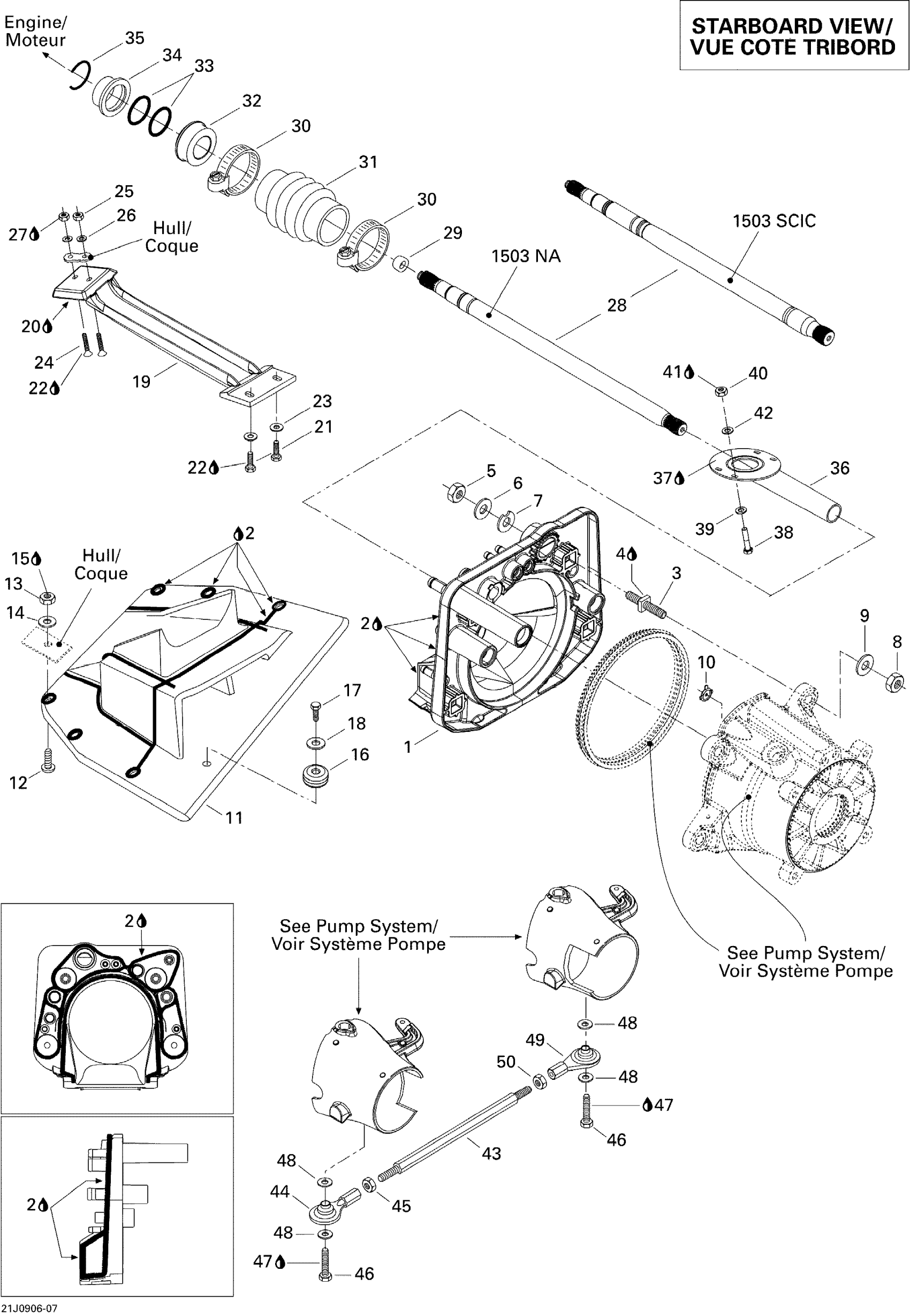

Sea-doo 205 Utopia SE, 2 x 215 SCIC, 2009 05- Propulsion Diagram
#
1
PUMP SUPPORT - Call your local BRP dealership
204120313
Unavailable
2
Instant Gasket
219701421
$51.99
3
Square Stud
250300022
$20.99
4
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
5
Elastic Stop Nut M10, Brass
232501200
$2.64
6
Flat Washer 10 mm, Stainless
234002600
$2.22
7
Shim 0.3 mm
272000053
$11.49
7
NEEDS DESCRIPTION This part replaces 204120067.
0460011
$10.49
8
Elastic Stop Nut M10, Brass
232501200
$2.64
9
Flat Washer
211200051
$1.68
10
Reducer This part replaces 291001887.
291004649
$17.49
11
Ride Plate, Port Side
204120323
Unavailable
11
Ride Plate, Starboard
204120324
Unavailable
12
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
13
Hex. Elastic Stop Nut M6
232561600
$1.15
14
Flat Washer M6, Stainless
234062600
$0.77
15
Silicone Sealant 51388, 300 ml
296000309
$36.99
16
Anode Zinc
271001813
$18.99
17
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
18
Stainless Flat Washer M6
234061600
$0.33
19
FIXED GRATE PORT SIDE - Call your local BRP dealership
204120325
Unavailable
19
Fixed Grate, Starboard
204120326
Unavailable
20
Instant Gasket
219701421
$51.99
21
Hex. Screw M6 X 16
207161660
$1.59
22
Loctite 271, 10 ml
293800005
$26.99
23
Stainless Flat Washer M6
234061600
$0.33
24
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
25
Hex. Elastic Stop Nut M6
232561600
$1.15
26
Flat Washer M6, Stainless
234062600
$0.77
27
Silicone Sealant 51388, 300 ml
296000309
$36.99
28
Drive Shaft
204120284
$476.99
29
Drive Shaft Plug
272000173
$8.68
30
Norma Clamp
293650077
$7.41
31
Bellows
272000183
$28.99
32
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
33
O-Ring
293300044
$1.05
34
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
35
C-Clip
271001575
$6.11
36
SHAFT GUARD - Call your local BRP dealership
204120316
Unavailable
37
Instant Gasket
219701421
$51.99
38
Phillips Screw M5 X 35
208653560
$2.22
39
Flat Washer M5, Stainless
234051600
$0.77
40
Hex. Elastic Nut M5 | X
232551600
$1.15
41
Silicone Sealant 51388, 300 ml
296000309
$36.99
42
Flat Washer 5 mm, Stainless
234052600
$0.77
43
LINK ROD - Call your local BRP dealership
204120255
Unavailable
44
BALL JOINT - Call your local BRP dealership
204120075
Unavailable
45
HEX. NUT 5/16-24 - Call your local BRP dealership
211100034
Unavailable
46
Hex. Screw M6 X 25
207162560
$1.47
47
Loctite 243, 10 ml
293800060
$21.49
48
Stainless Flat Washer M6
234061600
$0.33
49
BALL JOINT - Call your local BRP dealership
204120074
Unavailable
50
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
